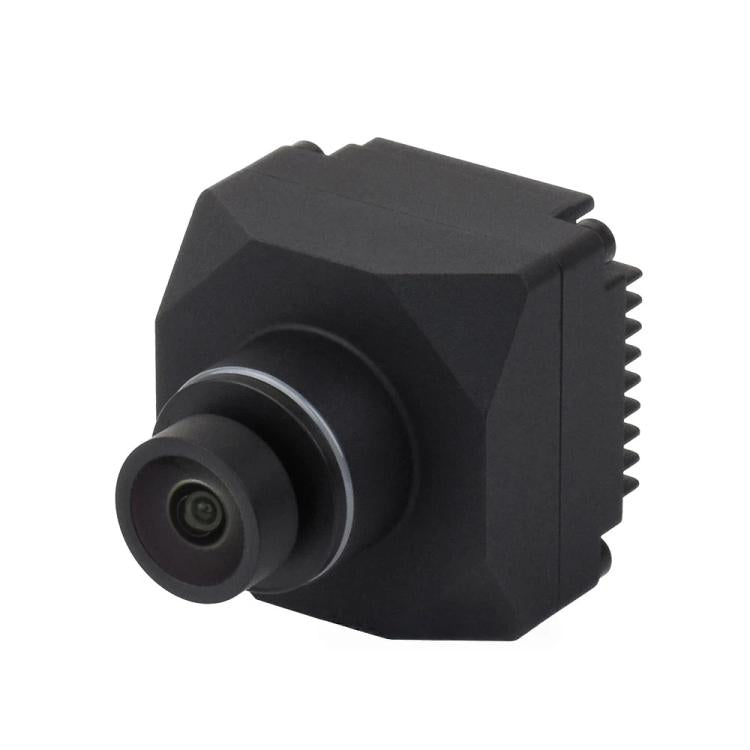

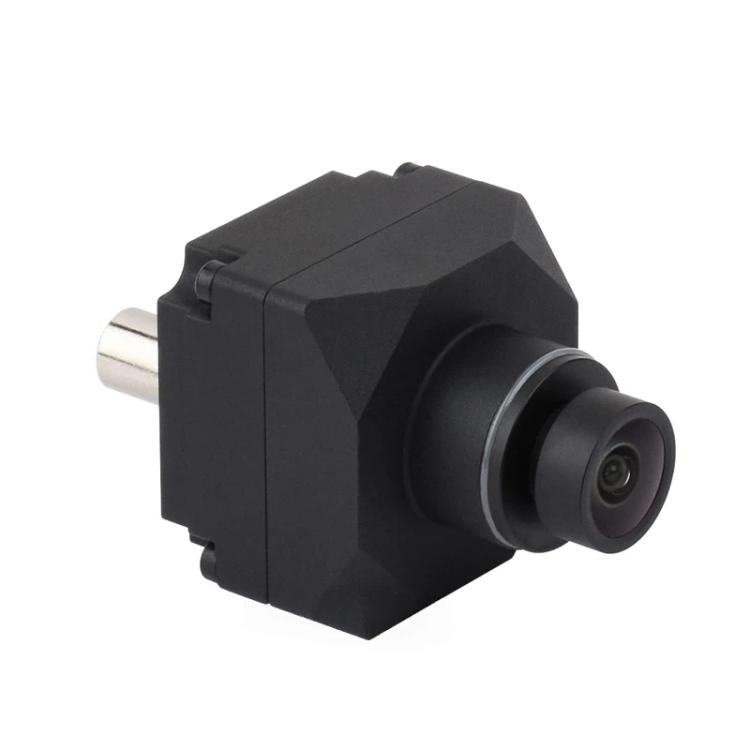

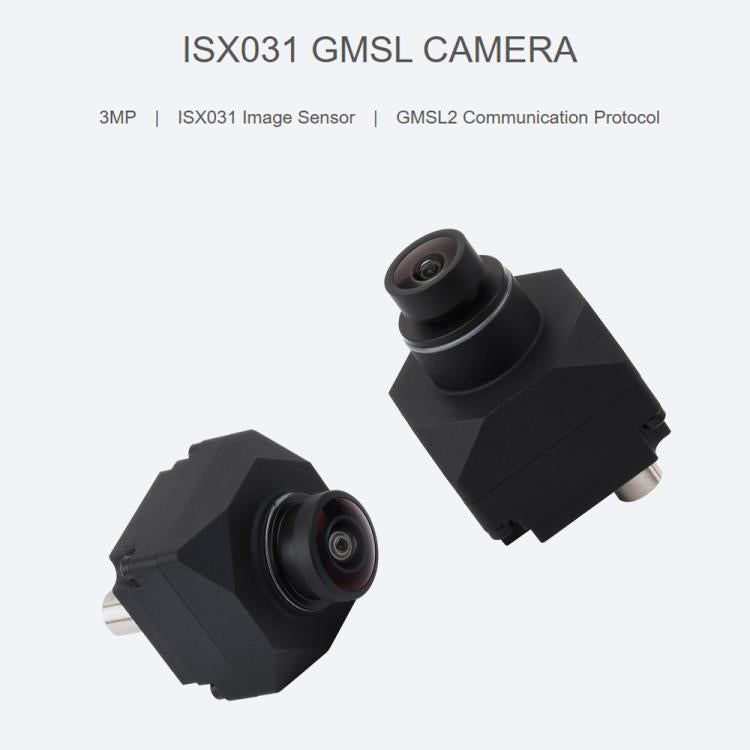

Waveshare H100 3MP ISX031 GMSL Camera Automotive Image Sensor with Global Shutter for Vehicle DVR/ADAS/Surveillance

1. The ISX031-GMSL-Camera-Hxx camera module is designed based on Sony's automotive-grade CMOS image sensor ISX031. It integrates a high-performance image processor and Maxim GMSL2 serializer (MAX96717), delivering stable and reliable image acquisition solutions for automotive and intelligent perception applications. Featuring an ultra-high dynamic range (HDR) of up to 120dB, this module ensures clear imaging under challenging conditions such as direct strong light and extreme brightness contrast while maintaining excellent low-noise performance in dark environments, significantly enhancing image quality in low-light and nighttime scenarios. Its optical system adopts multi-element aspherical all-glass lenses to effectively suppress distortion and aberrations, guaranteeing consistently sharp and clear output in complex, variable environments. The built-in ISP chip supports real-time image optimization, including intelligent noise reduction and color calibration, further improving imaging consistency and stability. Combined with a waterproof structure design, this camera module withstands harsh outdoor and automotive environments, making it ideal for autonomous driving, ADAS, automated perception, and similar applications.

Parameters:
1. Sensor:
--Model: 2.95MP ISX031 RGGB
--Resolution: 1920 × 1536
--CMOS Size: 1/2.4 inch
--Pixel Size: 3.0um × 3.0um
2. Lens:
--Field of View (H × V): H100: 100.0 × 78.5 degrees; H190: 197.0 × 162.3 degrees
--Focal Length: H100: 3.47mm; H190: 1.14mm
--Aperture: H100: F1.8; H190: F2.0
3. ISP: Built-in
4. Frame Rate: 1920 × 1536 at 30fps (typical)
5. Dynamic Range: 120dB
6. Output Format: YUV422 at 8bit
7. Serializer:
--Model: MAXIM MAX96717
--I2C Address: 0x80 (8-bit address)
--GMSL2 Rate: 6Gbps

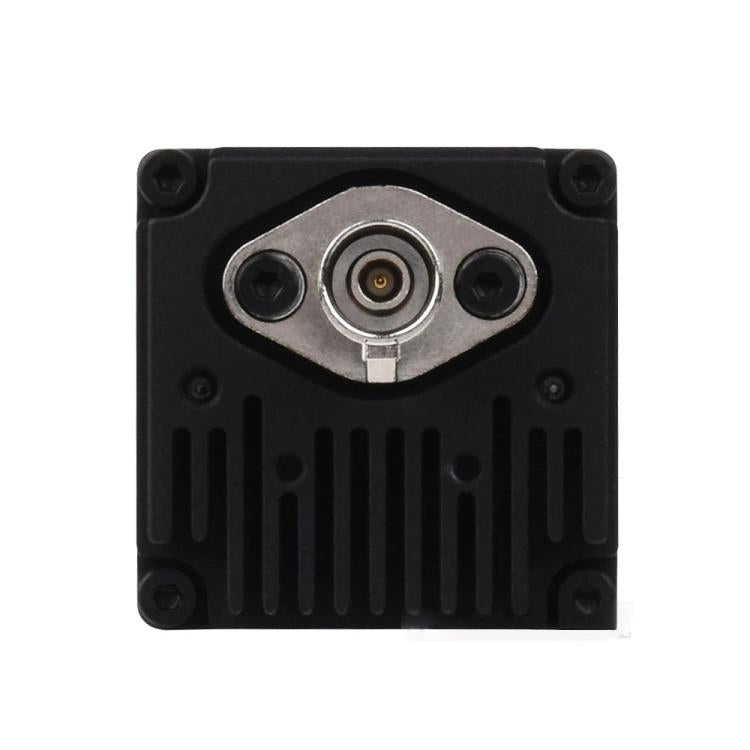

8. Camera Interface: GMSL2 (Amphenol Fakra Z-type connector)
9. Operating Voltage: 9V to 12V PoC
10. Operating Temperature: -40 to 85 Celsius
11. Protection Rating: IP67
