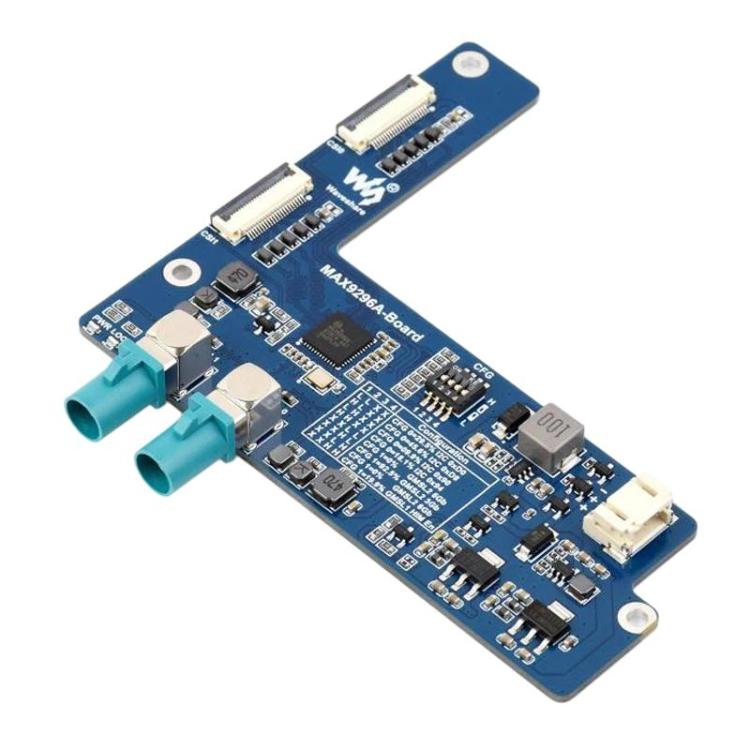

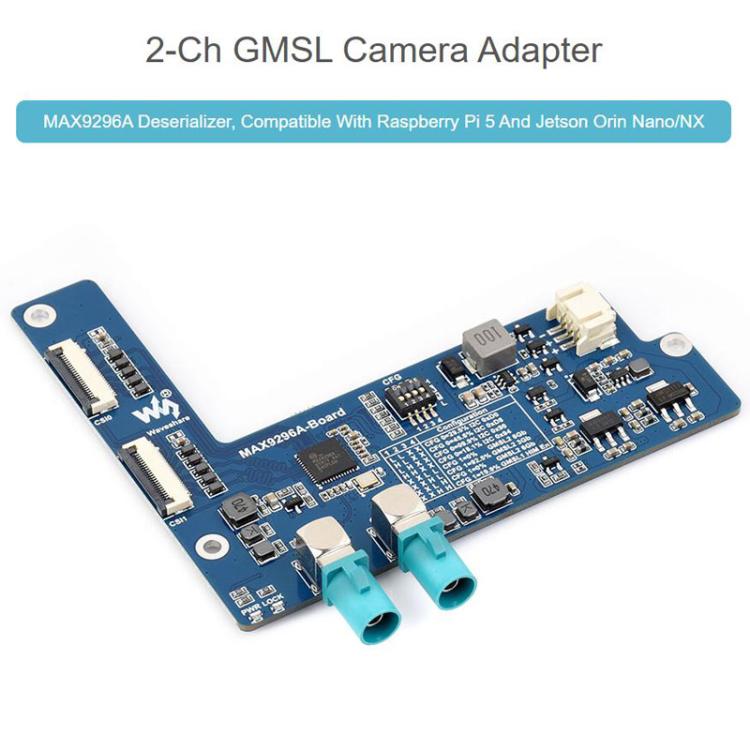

Waveshare 33623 2-Ch GMSL Camera Adapter Board Equipped With MAX9296A Deserializer High-Speed And Low-Latency Serial Transmission

SKU: TBD0606697401
Price
DA 25,622.51
In stock and ready for shipping
American Express
Apple Pay
Bancontact
Google Pay
iDEAL Wero
Maestro
Mastercard
PayPal
Shop Pay
Union Pay
Visa
Product doesn't match the description?

Contact us within 31 days after you receive it and get your FULL Refund.

GarSupply Money Back Guarantee

Get the item you ordered or your money back, it's that simple.

Top-notch support

We're available for any kind of questions related to product, compatibility, specifications etc.

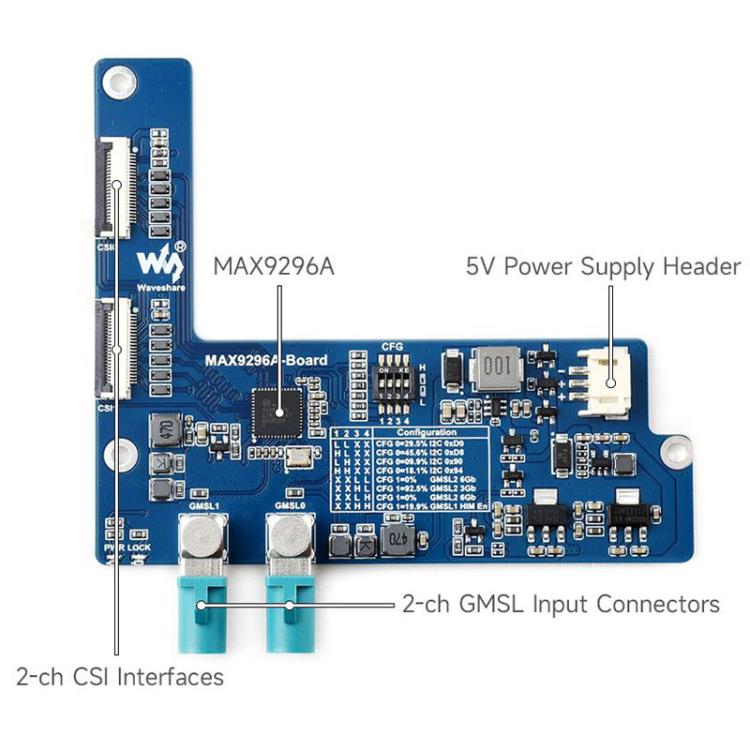

1. Deserializer: MAXIM (ADI) MAX9296A

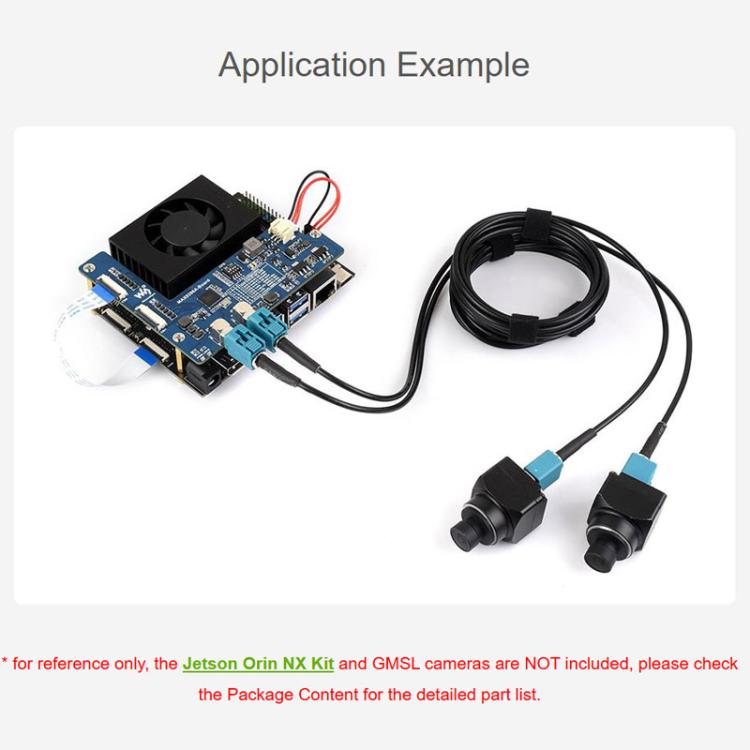

2. Supported hosts: Raspberry Pi 5, Jetson Orin NX/Nano development kits
3. Supported serializer models: MAX9295, MAX96717, MAX96705, etc.
4. GMSL input: 2 x GMSL2 (GMSL1 compatible) cameras
5. Input interface: 2 x MATE_AX FAKRA Z connectors
6. Output interface: 22-pin CSI interface
7. Supported GMSL camera models: ISX031, etc.
8. Power supply: 5V input

Package contents:
- MAX9296-GMSL-DESER-MODULE x 1
- 22-pin FFC cable (about 100mm) x 2
- PH2.0 3-pin connector cable x 1
- Screw kit x 1


Specification:
Package Weight
One Package Weight 0.06kgs / 0.14lb
One Package Size 14cm * 12cm * 4cm / 5.51inch * 4.72inch * 1.57inch
Qty per Carton 72
Carton Weight 6.00kgs / 13.23lb
Carton Size 50cm * 38cm * 30cm / 19.69inch * 14.96inch * 11.81inch
Loading Container 20GP: 467 cartons * 72 pcs = 33624 pcs
40HQ: 1086 cartons * 72 pcs = 78192 pcs
