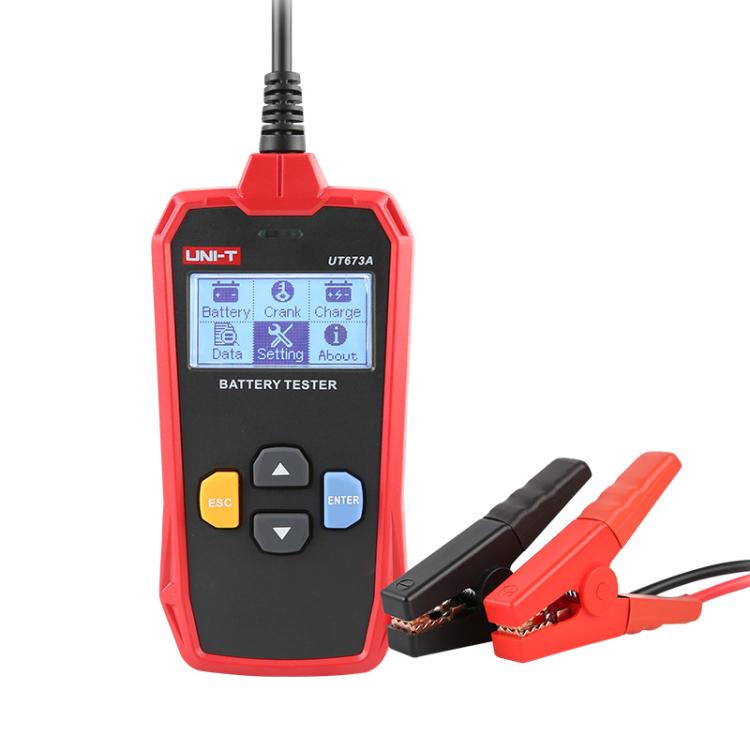

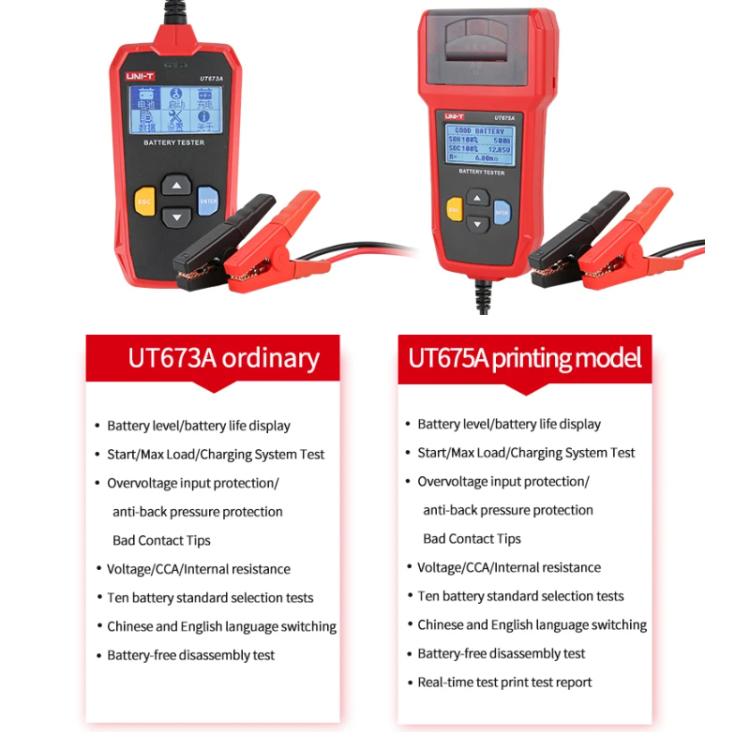

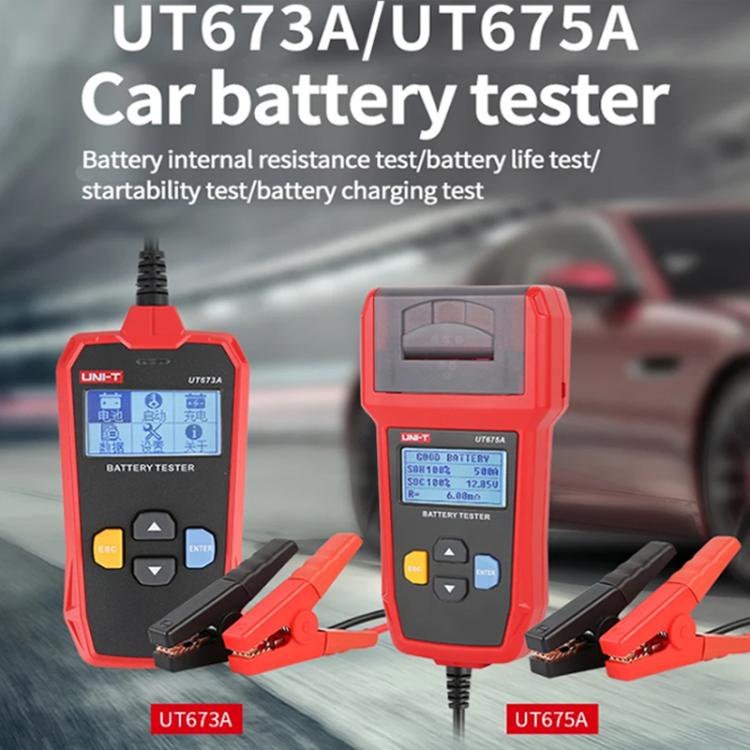

1. The UT673A/UT675A battery tester can be used to analyze the health condition of car batteries, suitable for batteries with capacities ranging from 3Ah to 250Ah. The tester can quickly and accurately detect common faults caused by batteries. The UT675A is also equipped with USB communication and an internal printer, which can be used to generate reports.
2. Battery capacity/battery life display
3. Starting/max load/charging system test
4. Overvoltage input protection/reverse voltage protection
5. Poor contact prompt
6. Voltage/CCA/internal resistance
7. Ten battery standard selection tests
8. Chinese/English language switch
9. Battery test without disassembly
Parameters:
1. Applicable Battery: 12V Starting Battery
2. Measured Battery Type: Ordinary Battery / AGM Battery / GEL Battery / EFB Battery
3. Measured Battery Capacity: 3 - 250 Ah

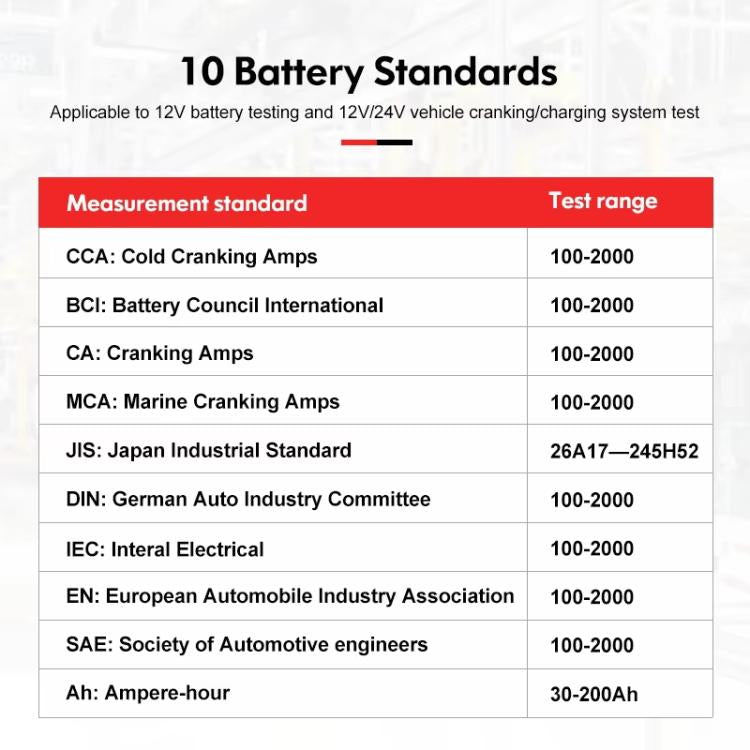

4. Measured Battery Standard and Range: CCA: 40 - 200 BCI: 40-2000; CA: 40~2000; MCA: 40-2000; JIS: 26A17 245H52; DIN: 40-1400; IEC: 40-1400; EN: 40 2000; SAE: 40-2000; Model: 3-250AN
5. Voltage range: 7-16V DC
6. Internal resistance measurement accuracy: +/-1%rdg +/-6dgt
7. Test method: Four-terminal Kelvin test leads
8. Operating temperature: 0-50 degrees Celsius
Specification:
| Package Weight |
|
