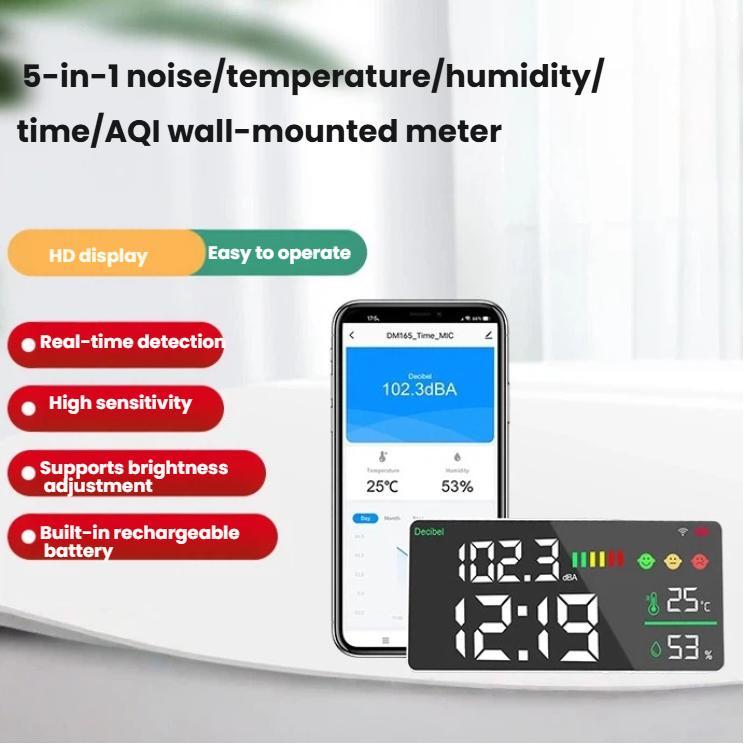

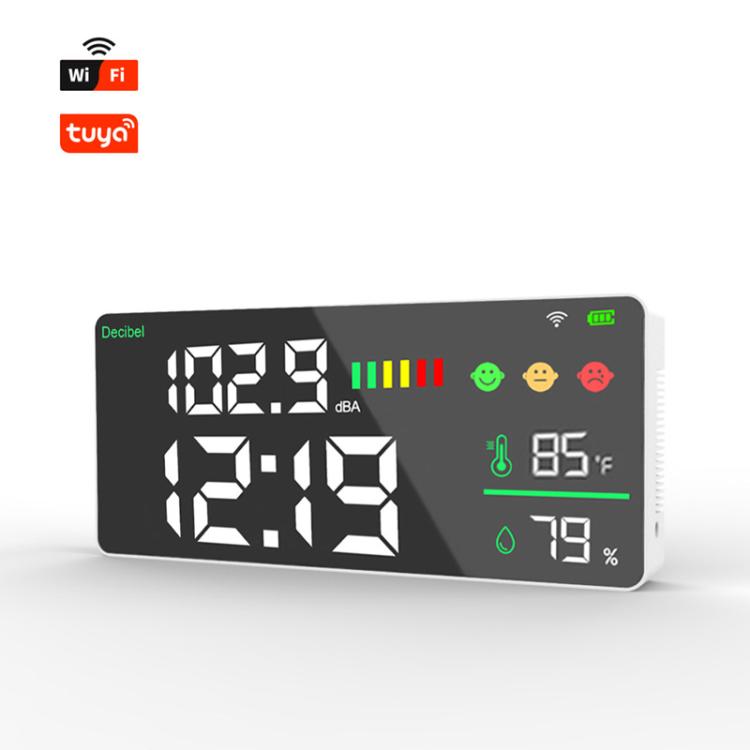

1. This is a 5-in-1 wall-mounted environmental monitor, integrating noise decibel measurement, temperature, humidity, and time display functions. The device features a large LED screen and supports smart linkage via the Tuya app for real-time monitoring.

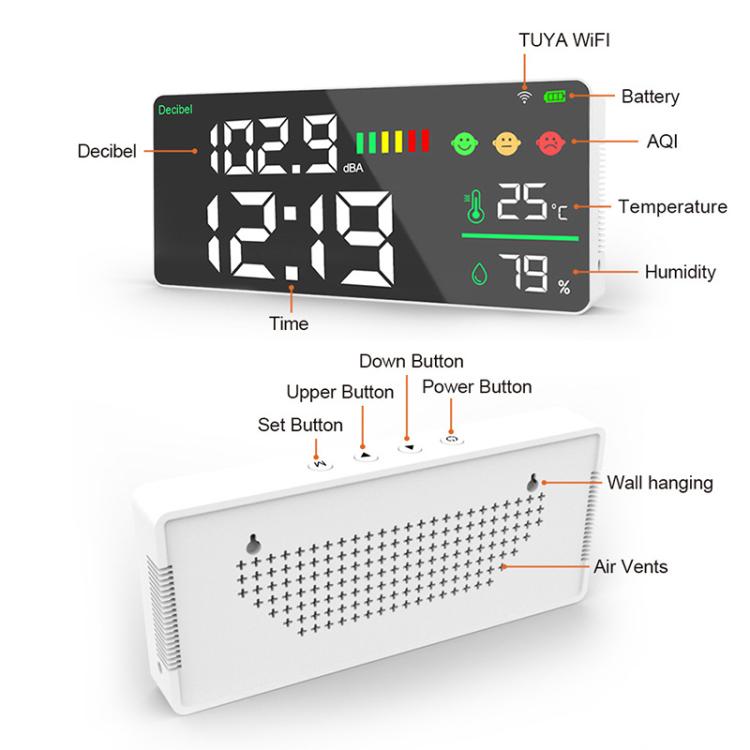

2. The device simultaneously displays five key parameters on the LED screen: noise level (units: dBA), temperature, humidity, AQI, and current time. It visualizes noise intensity using color-coded emoticons (e.g., smiley face, neutral face, warning face) and bar graphs for intuitive data understanding.

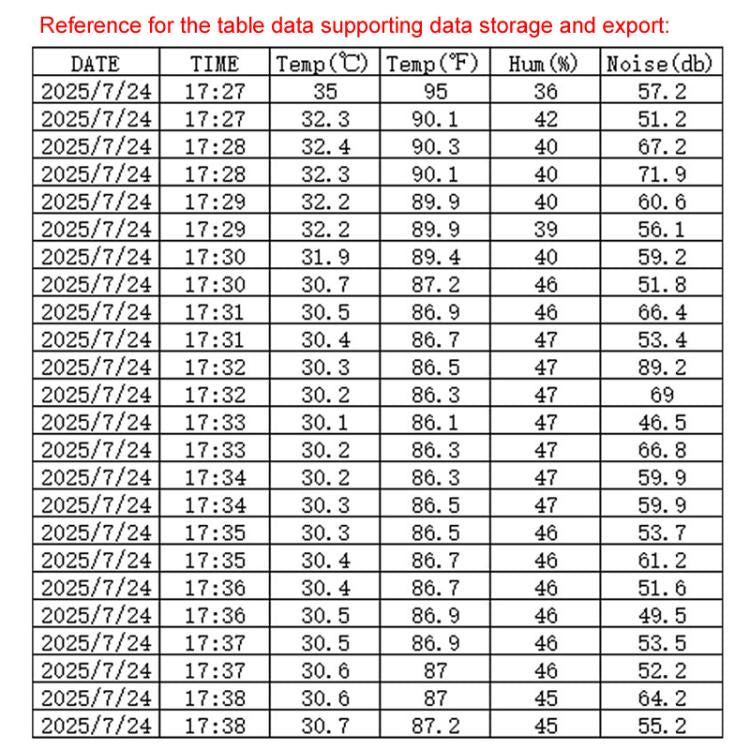

3. Smart Linkage Function: Through Tuya Smart WiFi integration, users can connect the monitor to the Tuya mobile app for remote access. This allows viewing real-time data anytime. The upgraded version additionally supports data storage/download and customizable threshold alerts (e.g., for noise or temperature limits).
4. Space-saving design with a wall-mounted, slim profile (269 x 89 x 35 mm), featuring a clear LED screen for easy reading. The device runs on a built-in 2000mAh lithium battery. The basic model uses a DC interface, while the upgraded version features a Type-C interface for enhanced convenience.

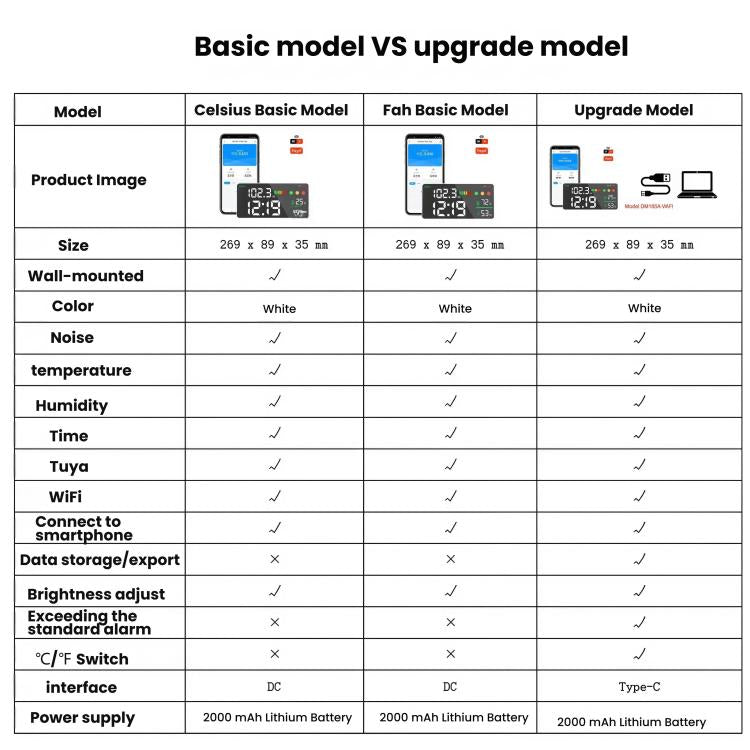

5. Three versions are available:
--Celsius Basic Version: Displays temperature in Celsius only.
--Fahrenheit Basic Version: Displays temperature in Fahrenheit only.
--Upgraded Version: Adds data storage/download, threshold alert functions, and temperature unit switching (supports Celsius and Fahrenheit conversion).
Parameters:
1. Material: ABS plastic
2. Weight: 320 g (11.3 oz)
3. Dimensions: 269 x 89 x 35 mm (10.6 x 3.5 x 1.4 in)
4. Measurement Range: Noise: 30-130 dBA; Temperature: -10 to 50 Celsius (14 to 122 degrees Fahrenheit); Humidity: 20%-85% RH
5. Sampling Time: 1.5 seconds
6. Storage Temperature: -10 to 60 Celsius
7. Atmospheric Pressure: 12.5-15.4 PSI
8. Battery: 2000mAh lithium battery
Specification:
|
Package Weight
|
| One Package Weight |
0.68kgs / 1.50lb
|
| One Package Size |
35cm * 14cm * 6cm / 13.78inch * 5.51inch * 2.36inch
|
| Carton Weight |
13.50kgs / 29.76lb
|
| Carton Size |
44cm * 25cm * 37cm / 17.32inch * 9.84inch * 14.57inch
|
| Loading Container |
20GP: 655 cartons * 20 pcs = 13100 pcs
40HQ: 1521 cartons * 20 pcs = 30420 pcs
|
|
