1. Measuring range: 0μm - 1700μm
2. Measurement principle: magnetic and eddy current thickness measurement
3. Resolution: 0.1μm (0 - 99μm) 1μm (100 - 1700μm)
4. Measurement repeatability: 1μm 0-500μm / 2μm 500-1500μm
5. Measuring area (minimum): magnetic 25x25mm; non-magnetic 25x25mm
6. Curvature (minimum): convex 5mm; concave 30mm
7. Substrate thickness (minimum): magnetic 0.2mm; non-magnetic 0.05mm
8. LCD backlight: yes
9. Low battery warning: yes
10. Zero calibration: yes
11. Basic calibration: yes
12. Single/continuous measurement: yes
13. Auto power off: yes
14. Unit conversion: yes
15. Operating environment: 0-50°C
16. Power supply: 2 x 1.5V AAA batteries (not included)
17. Data storage: 20 data sets
18. Automatic calibration: calibrates based on five different calibration substrates: 0/50/100/250/500

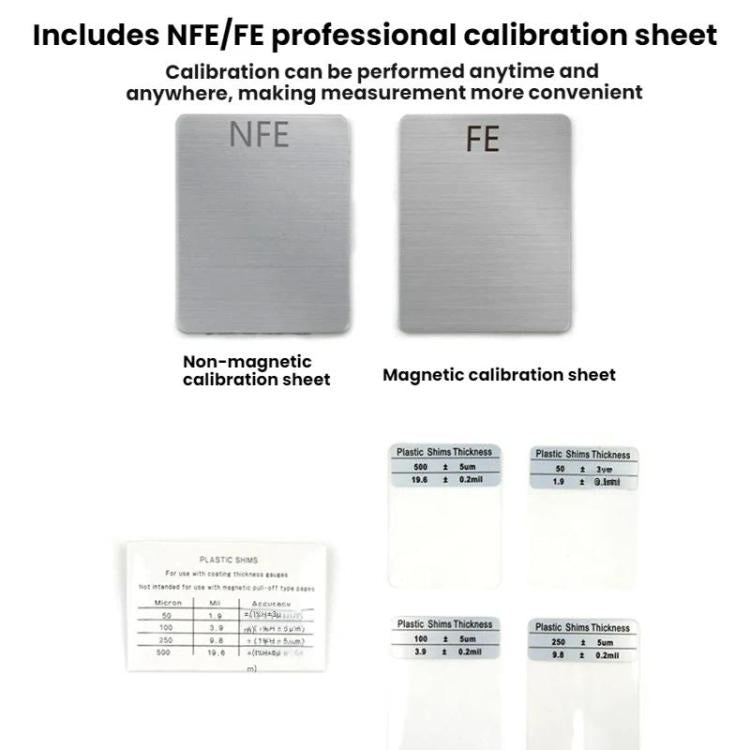

19. Includes NFE/FE professional calibration sheets for convenient calibration anytime, anywhere

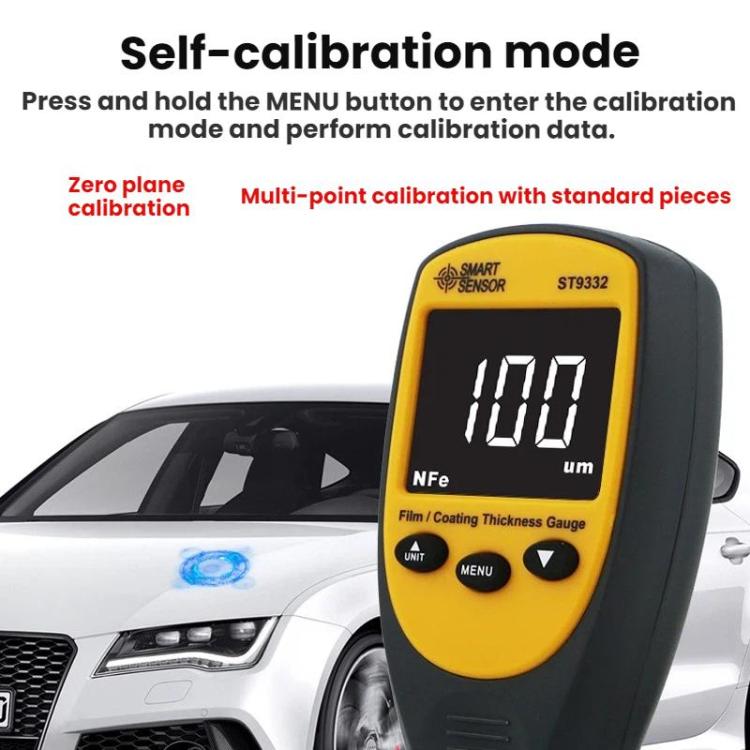

20. Press and hold the MENU button to enter calibration mode, which allows for calibration data, zero calibration, and multi-point calibration using standard sheets

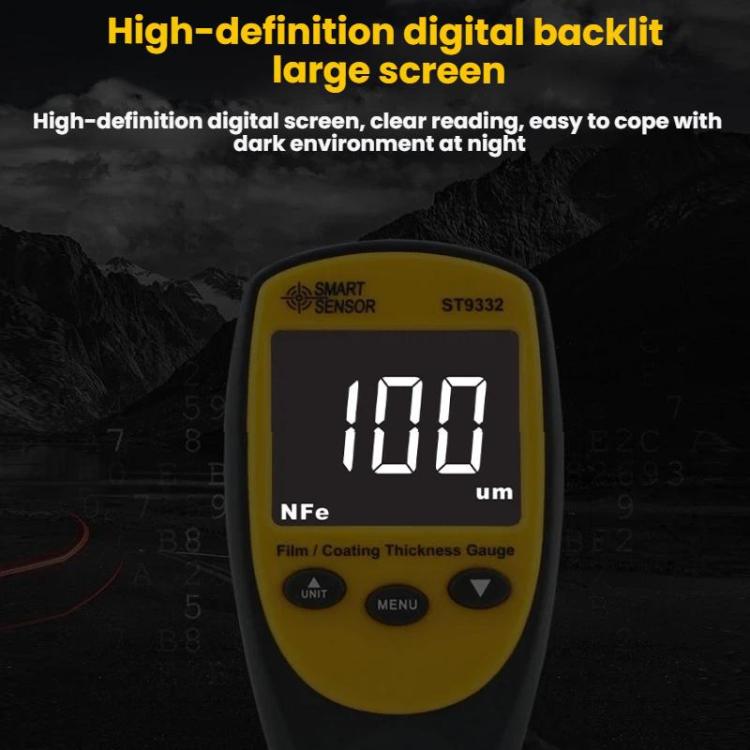

21. High-definition digital screen with backlight for clear readings, perfect for dark environments

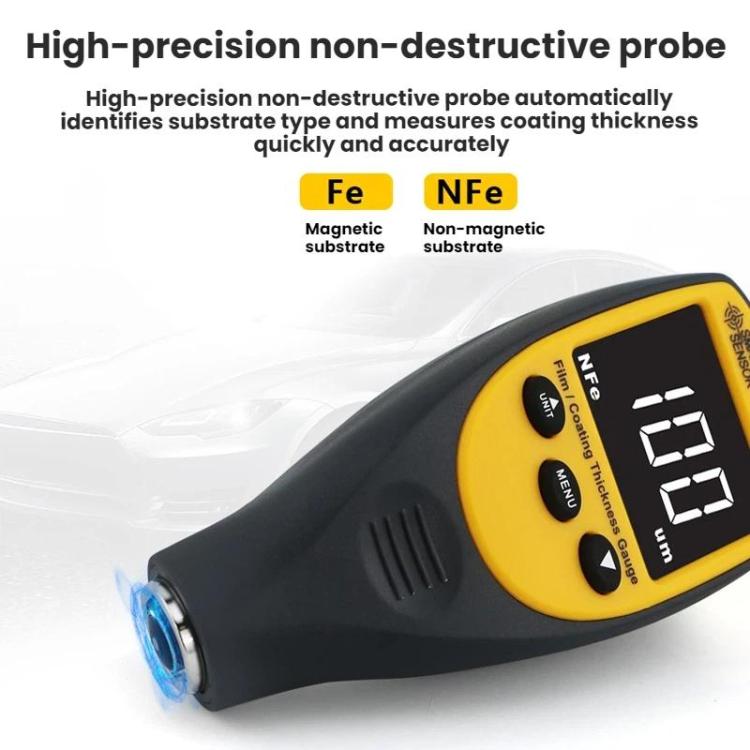

22. High-precision, non-destructive probe automatically identifies substrate type for fast and accurate coating thickness measurements

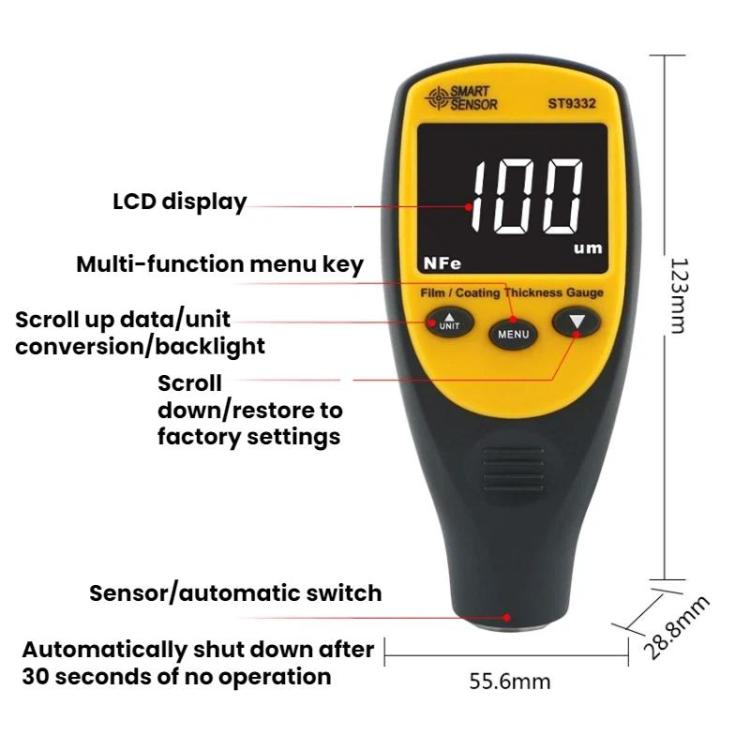

23. Dimensions: 123 x 55.6 x 28.8 mm
