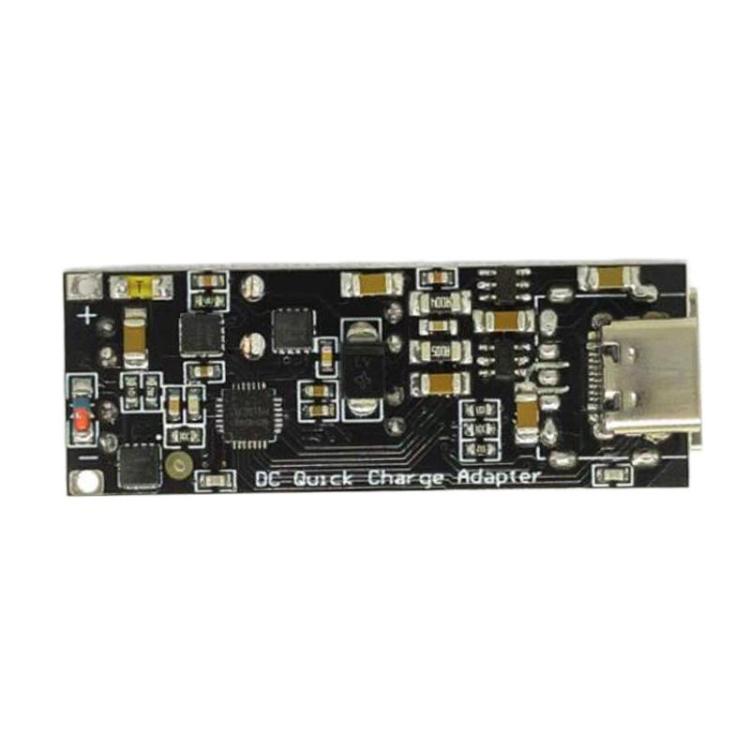

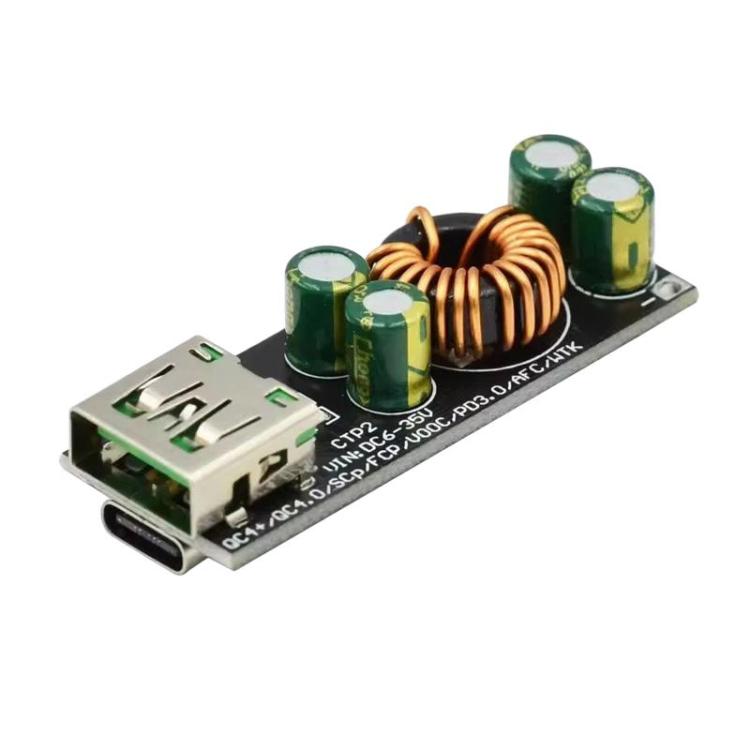

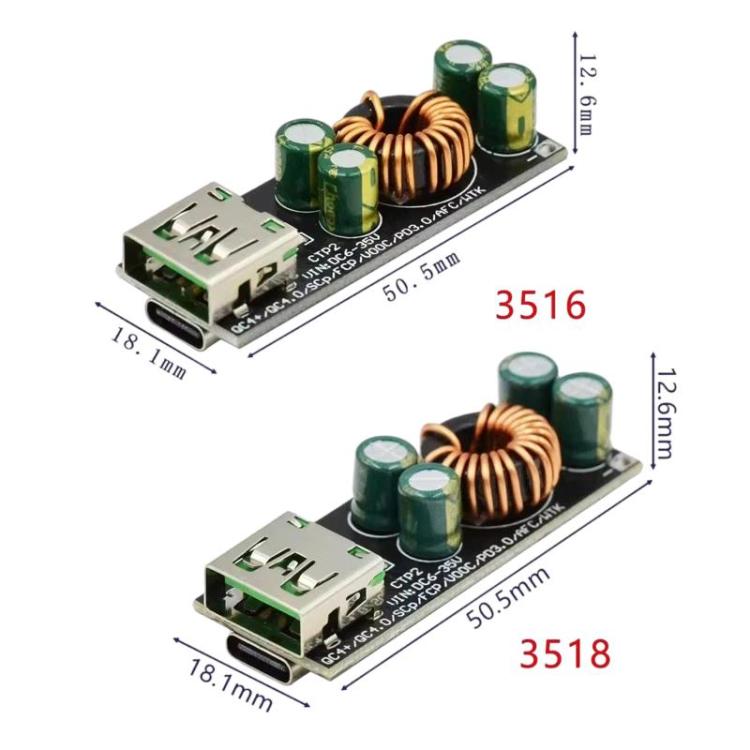

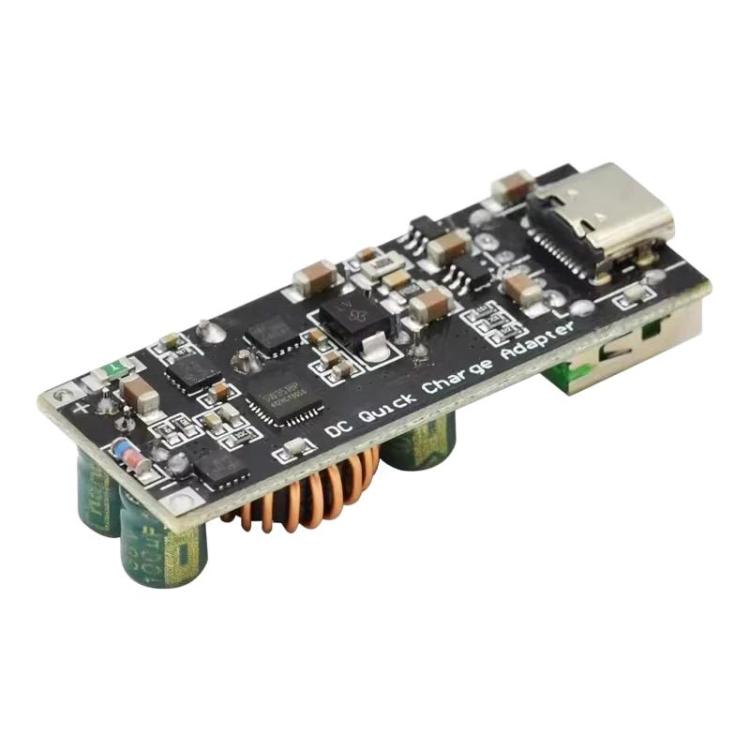

Mobile Phones Full Protocol Fast Charging Module Fast Charging Motherboard For Huawei SCP / FCP(3516)

1. Compact in size, easy to carry
2. Widely applicable, can be used daily for fast charging of mobile phones, and can also be powered by batteries, solar panels, DC generators, etc
3. Wide power supply voltage range: 6 to 35V. The input voltage should be higher than the required output voltage
4. High-performance input anti-reverse connection. A dedicated MOS transistor is used for anti-reverse connection to prevent damage from reverse connection
5. Equipped with a fast charging status indicator light. The blue light indicates the output, and the red light indicates the fast charging status
6. Dual parallel low-resistance electrolytic capacitors + 6 1206 ceramic capacitors, with better performance
7. Supports fast charging protocols: USN PD3.0 (PPS); For Qualcomm QC4+/QC3.0; For Huawei SCP/FCP; For iOS 2.4A; For Samsung AFC; For vivo 9V 2A dual engines; For MediaTek PE2.0; For OPPO VOOC (only 3518 supports); For OnePlus DASH (only 3518 supports)

Notes for attention
1. For low-voltage high-current fast charging, please use the original data cable. If you want to measure the charging voltage and current, you must use a USB meter with low internal resistance; otherwise, it will affect the charging current
2. The Type-C port is used for output charging. It can be used in combination with C-To-C/Type-C male-to-male dual-head data cable to charge mobile phones or laptops

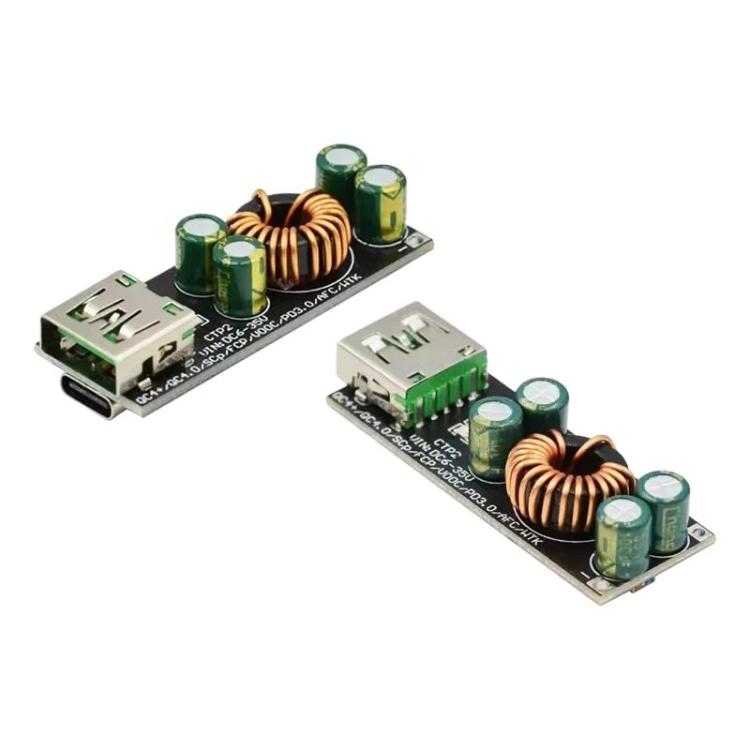

3. OPPO and OnePlus phones should use the USB port (3518) for charging. For charging protocols such as QC4+/QC4.0/PD3.0, the Type-C port should be used
4. When the supply voltage is higher than 21V, the PD protocol of the C port can support a maximum output of 20V 3A. The module is small and should be well ventilated and cooled when used with a laptop that supports PD charging
5. When both the USB port and the Type-C port are plugged into the phone at the same time, both ports will output 5V
