1. Voltage: 12V
2. Working current: 50A (MAX)
3. Peak current: 70A
4. Current consumption - charging: 150MA
5. Current consumption - standby: 1.5MA
6. Insertion voltage: 13.2V
7. Cut-off voltage: 12.8V
8. Disconnection delay: 15 seconds
9. Protection level: water-resistant protection
10. Principle of use: VSR connects and disconnects the auxiliary battery and the starting battery according to the current charge level. When the engine is running, when the starting battery reaches 13.2 volts, the VSR will start after 15 seconds and the LED light will come on, which means that both batteries are connected and the system is running. Once the vehicle system is turned off, it will disconnect the two batteries when it reaches 12.8 volts after 15 seconds, allowing your main battery to restart safely
11. Net weight: 132g

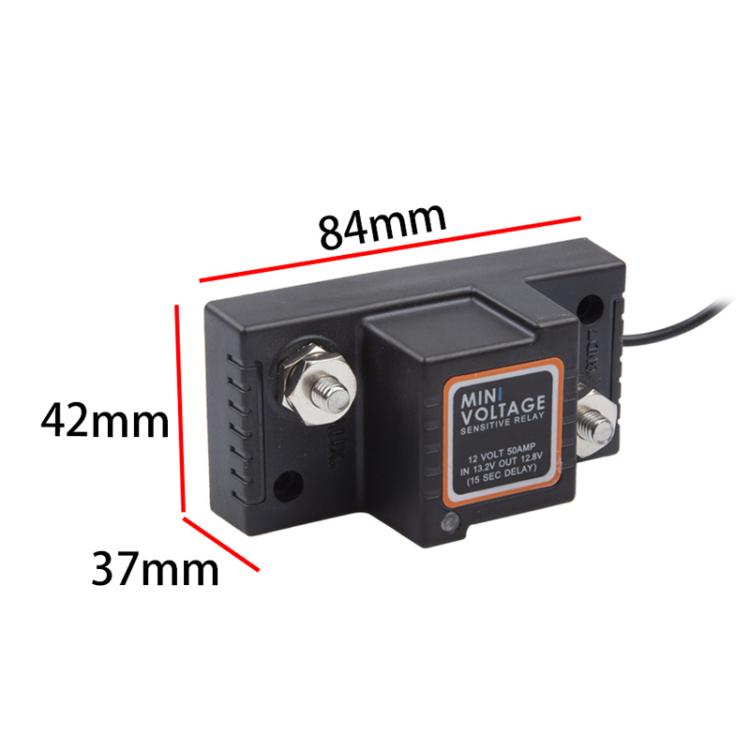

12. Dimensions: 84x42x37mm
