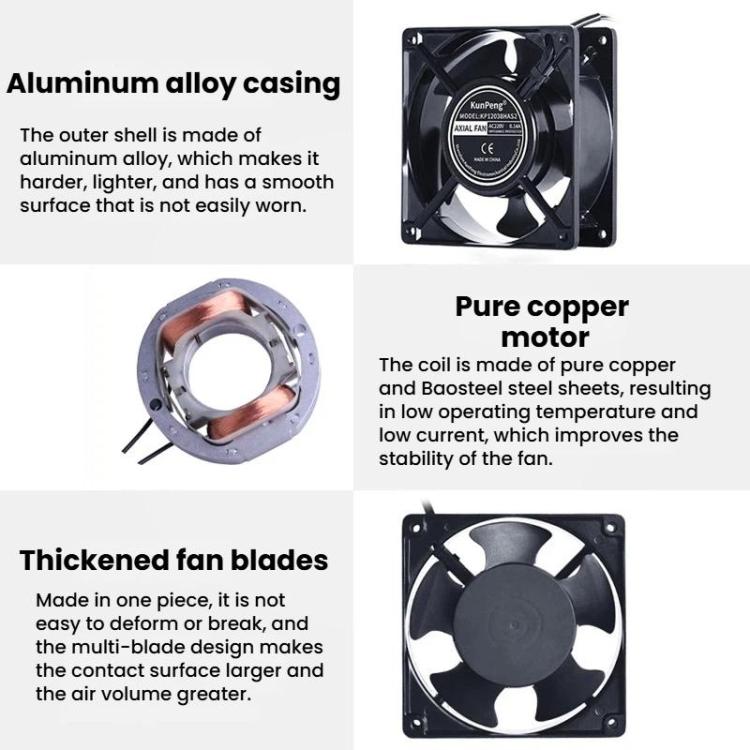

1. The outer shell is made of aluminum alloy, which is harder, lighter in weight, and has a smooth surface that is less prone to wear
2. The coils are made of pure copper and Baosteel silicon steel sheets, which operate at a lower temperature and with lower current, thereby enhancing the stability of the fan
3. The thickened fan blades are formed in one piece, which is less likely to deform or break, and the multi-blade design provides a larger contact area and greater air volume
4. It can be applied in scenarios such as power supply equipment, servers, power supplies, cabinets, security equipment, and household appliances
5. The oil-filled bearings use lubricating oil in the sleeve to reduce friction loss, resulting in low noise and low cost
Parameters:
1. Rotational speed: 2600 r/min
2. Motor power: 23W
3. Current:
- 110V: 0.22A
- 220V: 0.14A
- 380V: 0.06A
4. Bearing type: oil-filled
5. Fan blade count: 5 blades
6. Material: aluminum, PBT
7. Size: about 12 x 12 x 3.8 cm
8. Weight: about 530g
Specification:
