1.WiFi 6 High-Speed Connectivity：Dual-core processor delivers 1800Mbps wireless transmission rate with enhanced network capacity and data processing efficiency for stable, high-speed connections.
2.Dual-Band Concurrent Operation：Simultaneous 2.4GHz (574Mbps) and 5.8GHz (1201Mbps) operation provides strong anti-interference capability and faster, more stable wireless transmission.
3.High-Gain Omnidirectional Antennas：Four external 7dBi high-gain fiberglass antennas (2x2.4G + 2x5.8G) ensure superior signal coverage and penetration for outdoor environments.

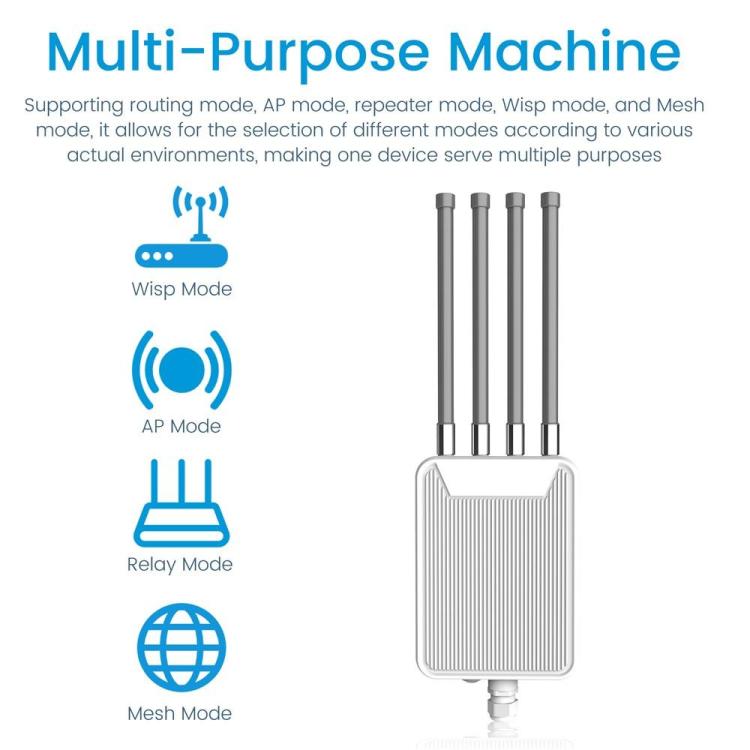

4.Multiple Operating Modes：Supports Router, AP, Repeater, WISP, and Mesh modes for flexible deployment across different network environments and scenarios.
5.Industrial-Grade Weatherproof Design：IP67 waterproof rating with built-in 15kV lightning protection and efficient heat dissipation design for reliable outdoor operation in harsh conditions.
6.Extended Coverage Range：Professional outdoor wireless access point covers up to 500 meters radius, ideal for scenic areas, communities, factories, and large outdoor spaces.
7.PoE Power Supply：Convenient 48V PoE power supply eliminates the need for separate power cables, simplifying installation and reducing wiring complexity.
Specifications:
1.Chipset: MT7621AT + MT7975 + MT7905
2.Memory: 256MB DDR3
3.Flash: 16MB
4.Wireless Standards: 2.4G: IEEE 802.11b/g/n/ac/ax; 5G: IEEE 802.11a/n/ac/ax
5.Frequency Bands: 2.4GHz: 2.412-2.472GHz; 5GHz: 5.180-5.825GHz
6.Wireless Rates: 2.4G: up to 574Mbps; 5.8G: up to 1201Mbps
7.Transmit Power: 2.4G: 20dBm; 5.8G: 20dBm
8.Network Interface: 1x10/100/1000M adaptive WAN/LAN port with 48V PoE support
9.Antennas: 4x7dBi high-gain omnidirectional antennas
10.Max Wireless Connections: 150+
11.Power Supply: 48V PoE or DC 48V/0.5A
12.Power Consumption: Less than 15W
13.Dimensions: 165x63x543mm (LxWxH, including antenna height)
14.Operating Temperature: -40 to +55 degree centigrade
15.Storage Temperature: -40 to +70 degree centigrade
16.Waterproof Rating: IP67
17.Lightning Protection: Built-in 15kV
18.Coverage Range: 0-500 meters
2.Dual-Band Concurrent Operation：Simultaneous 2.4GHz (574Mbps) and 5.8GHz (1201Mbps) operation provides strong anti-interference capability and faster, more stable wireless transmission.
3.High-Gain Omnidirectional Antennas：Four external 7dBi high-gain fiberglass antennas (2x2.4G + 2x5.8G) ensure superior signal coverage and penetration for outdoor environments.
4.Multiple Operating Modes：Supports Router, AP, Repeater, WISP, and Mesh modes for flexible deployment across different network environments and scenarios.
5.Industrial-Grade Weatherproof Design：IP67 waterproof rating with built-in 15kV lightning protection and efficient heat dissipation design for reliable outdoor operation in harsh conditions.
6.Extended Coverage Range：Professional outdoor wireless access point covers up to 500 meters radius, ideal for scenic areas, communities, factories, and large outdoor spaces.
7.PoE Power Supply：Convenient 48V PoE power supply eliminates the need for separate power cables, simplifying installation and reducing wiring complexity.
Specifications:
1.Chipset: MT7621AT + MT7975 + MT7905
2.Memory: 256MB DDR3
3.Flash: 16MB
4.Wireless Standards: 2.4G: IEEE 802.11b/g/n/ac/ax; 5G: IEEE 802.11a/n/ac/ax
5.Frequency Bands: 2.4GHz: 2.412-2.472GHz; 5GHz: 5.180-5.825GHz
6.Wireless Rates: 2.4G: up to 574Mbps; 5.8G: up to 1201Mbps
7.Transmit Power: 2.4G: 20dBm; 5.8G: 20dBm
8.Network Interface: 1x10/100/1000M adaptive WAN/LAN port with 48V PoE support
9.Antennas: 4x7dBi high-gain omnidirectional antennas
10.Max Wireless Connections: 150+
11.Power Supply: 48V PoE or DC 48V/0.5A
12.Power Consumption: Less than 15W
13.Dimensions: 165x63x543mm (LxWxH, including antenna height)
14.Operating Temperature: -40 to +55 degree centigrade
15.Storage Temperature: -40 to +70 degree centigrade
16.Waterproof Rating: IP67
17.Lightning Protection: Built-in 15kV
18.Coverage Range: 0-500 meters
