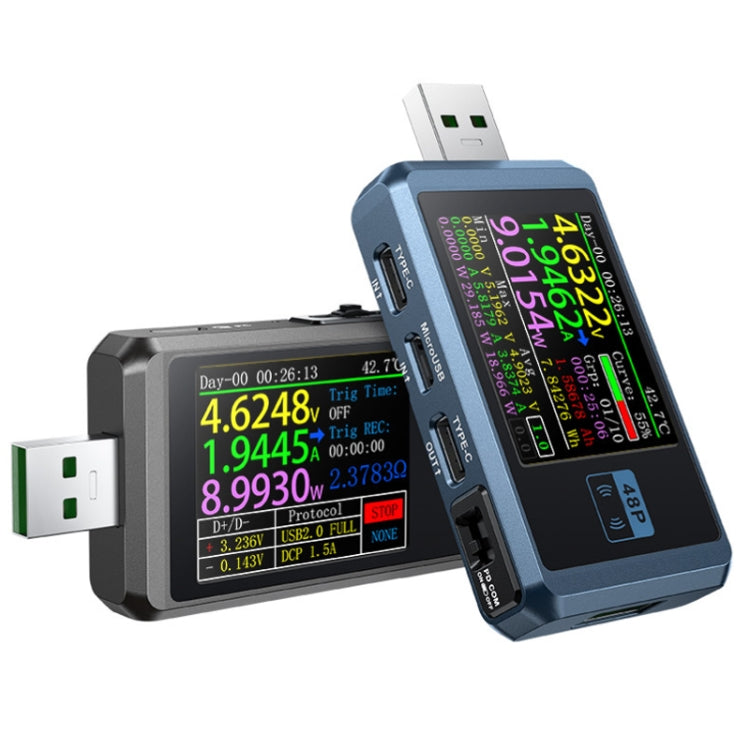

FNIRSI FNB48P USB Mobile Phone DC Power Charger Detector, Color: Bluetooth Blue

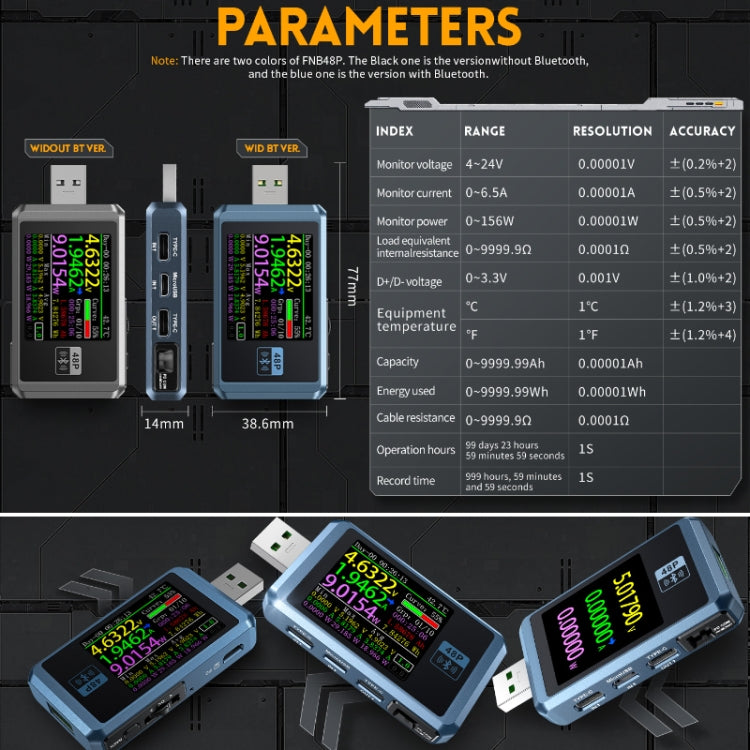

1. Monitoring voltage: 4-24V
2. Monitoring current: 0-6.5A
3. Monitoring power: 0-156W
4. Load equivalent internal resistance: 0-9999.9 ohms
5. D+/D- voltage: 0-3.3V
6. Capacitance: 0-9999.99Ah
7. Power consumption: 0-9999.99Wh
8. Cable internal resistance: 0-999.9 ohms
9. Dimensions: 77x14x38.6 cm

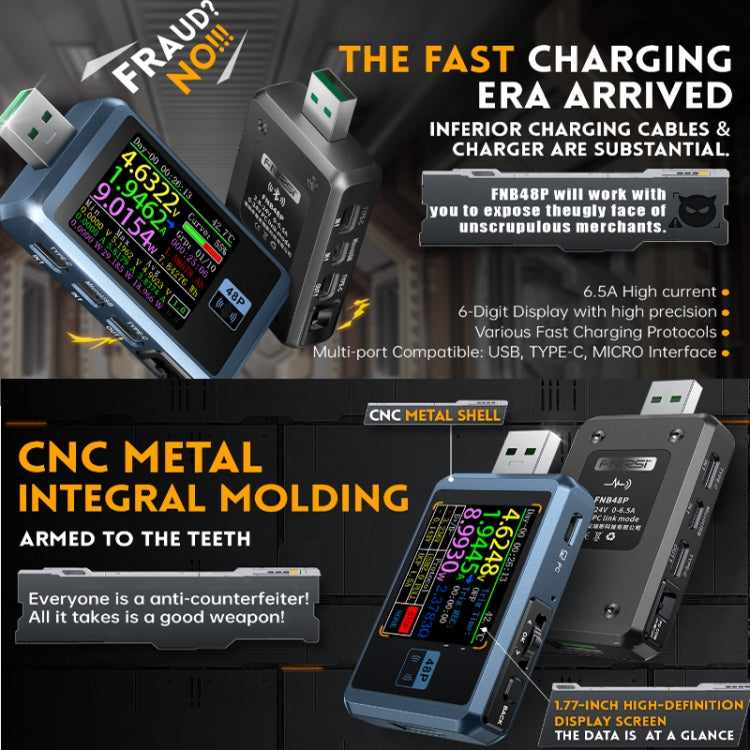

10. 6.5A high current, multi-port compatible, 6-digit high-precision display, supports multiple fast charging protocols
11. Resolution: 0.00001

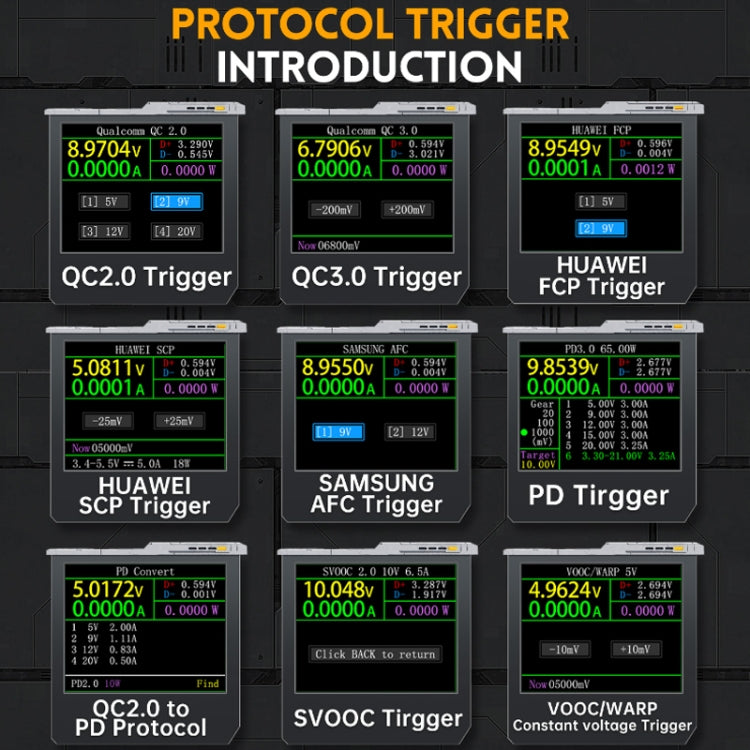

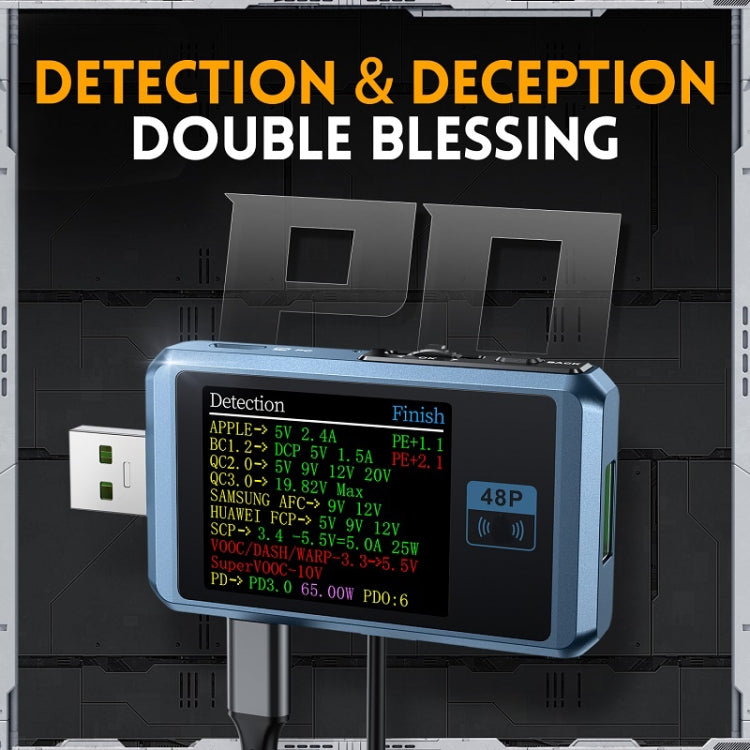

12. Protocol detection: For Apple 2..4A, QC2.0, QC3.0, PD, For Samsung AFC, For HUAWEI SCP, For OPPO VOOC, DASH, WARP, SuperVOOC, MTK-PE

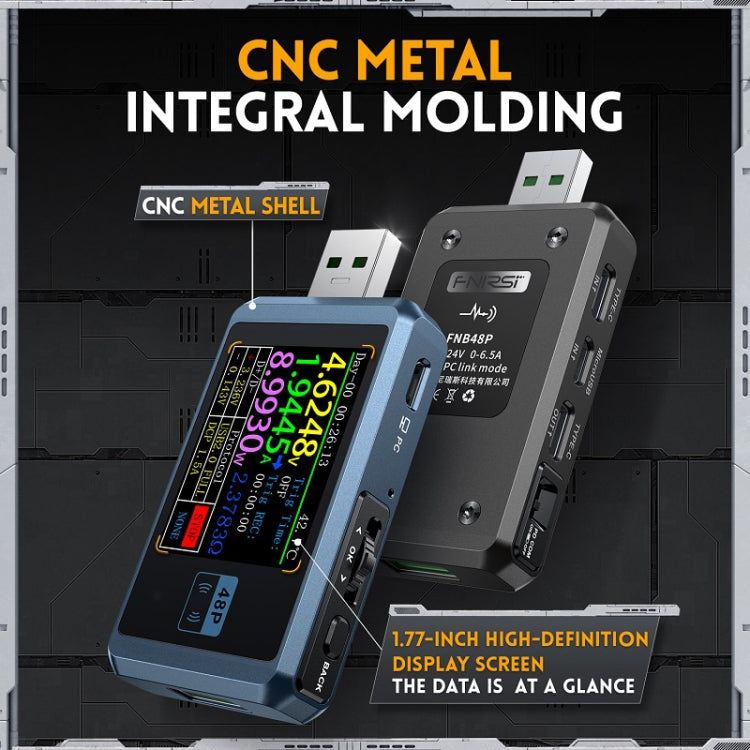

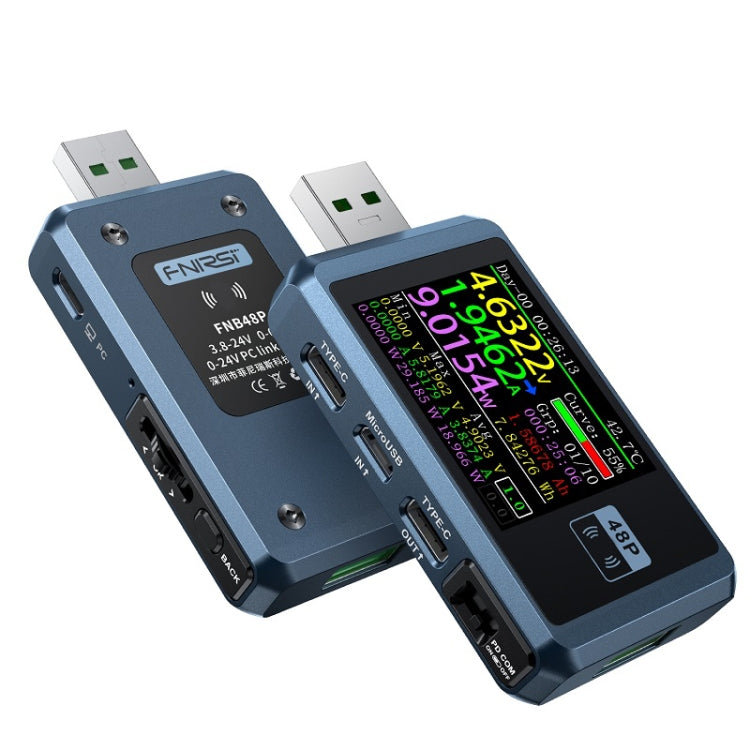

13. Adopt CNC metal shell design, light and delicate feel, equipped with 1.77-inch high-definition display screen, the data is clear at a glance
14. Real-time monitoring of subtle changes in voltage, current and power during charging
15. Equipped with gravity sensing function, 360-degree flip, support open/close

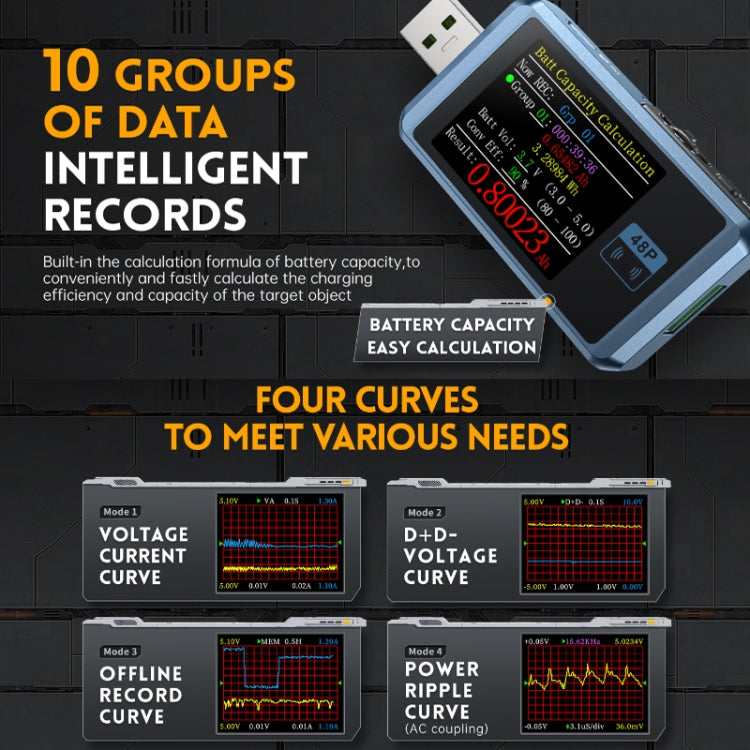

16. 10 groups of data intelligent records, built-in battery capacity calculation formula, convenient and fast

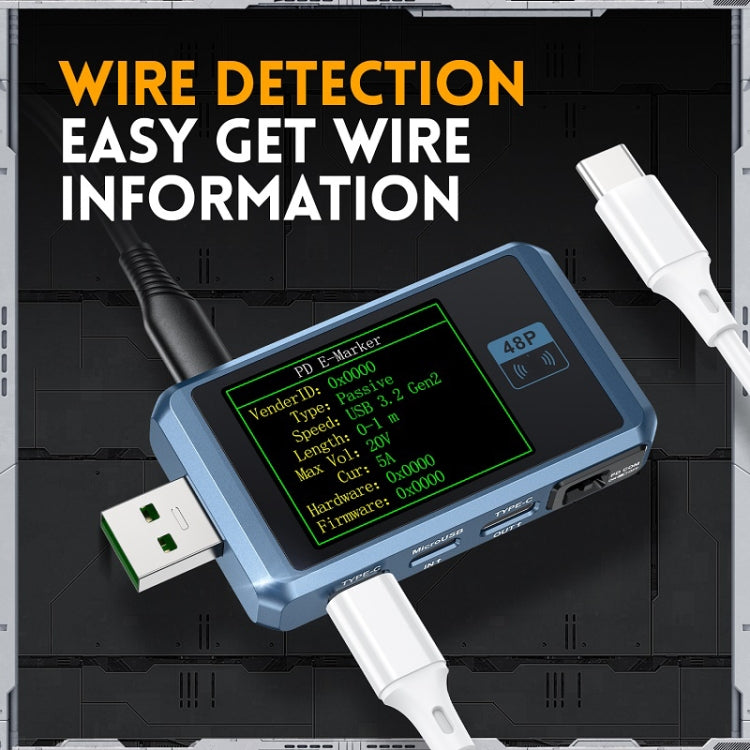

17. Three major cable detection functions, wire data at a glance

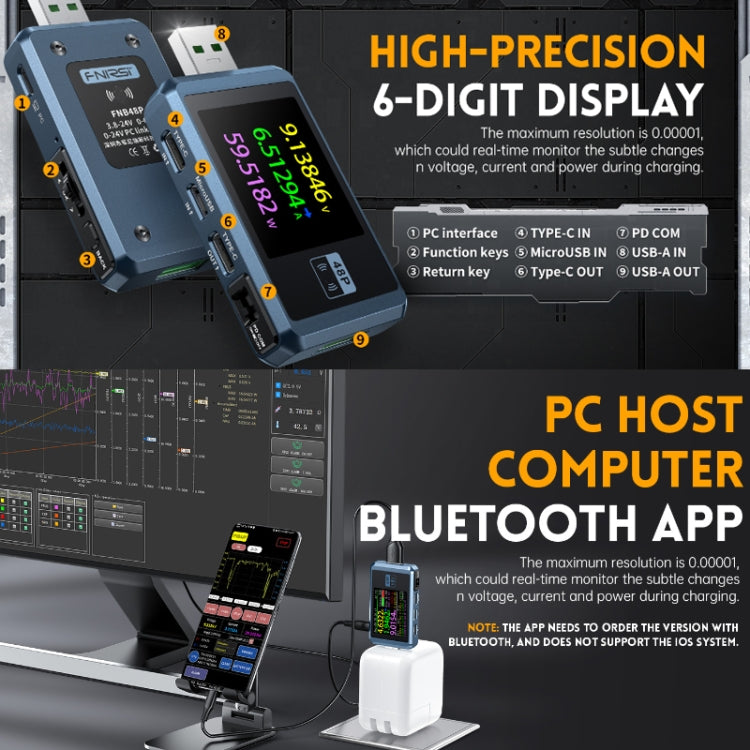

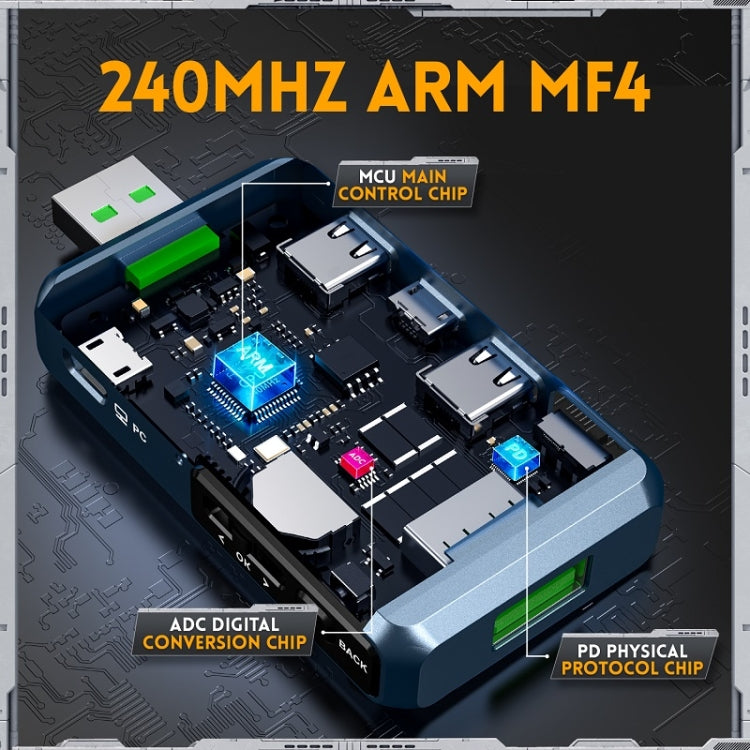

18. Equipped with a high-performance MCU and an external 16-bit ADC PD physical chip, the performance score is full
19. PC upper computer, Bluetooth APP synchronization
