Features:
On Appearance

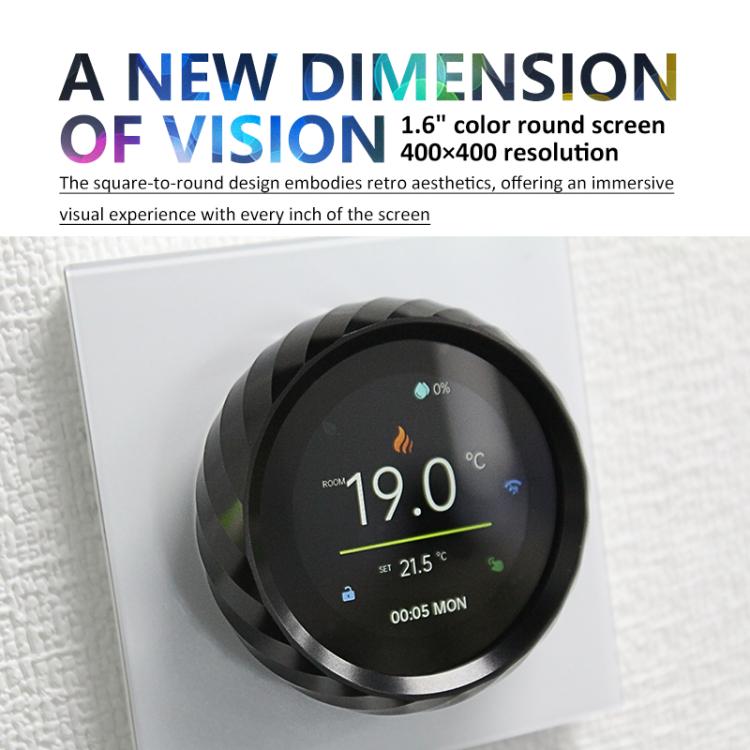

1. Adopting 1.6-inch round TFT color screen, sensitive buttons give you an excellent experience, and the interface is more friendly

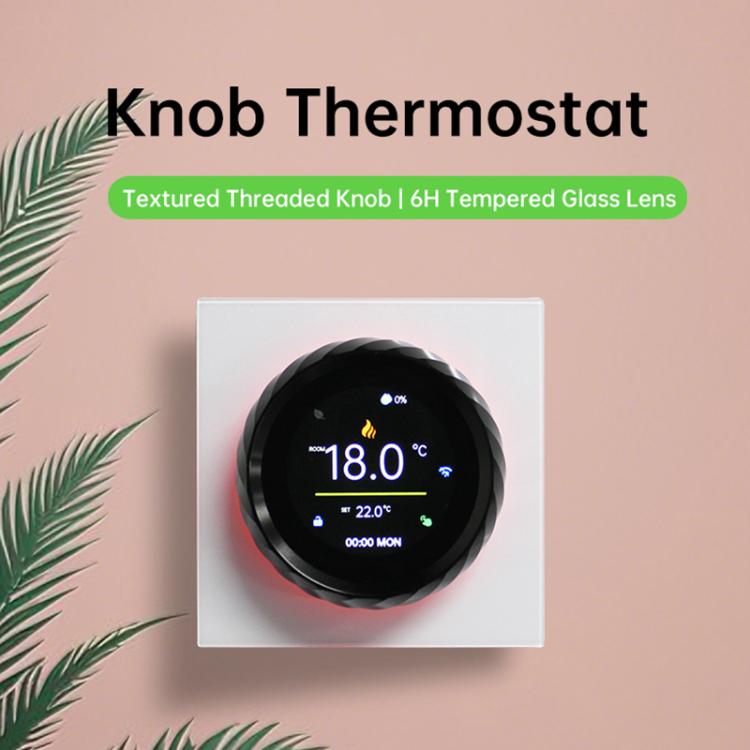

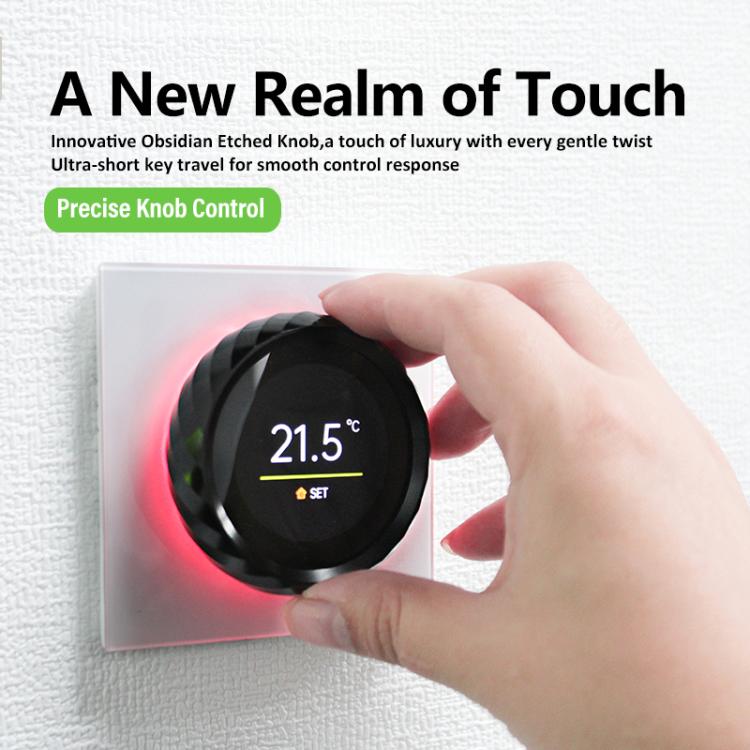

2. High-quality threaded side knob, imitation obsidian material, brings a delicate experience to your fingertips

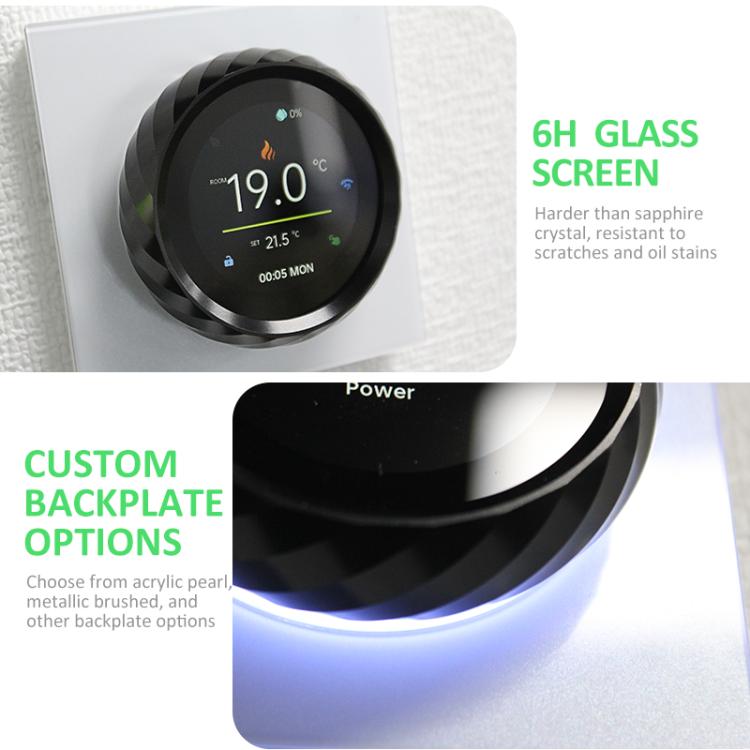

3. 6H tempered glass panel, wear-resistant and scratch-resistant, protects the screen from scratches
4. Seven colors of atmosphere lights add color to your life, switch at will
5. A variety of back panels are available to suit different home styles
On Functionality

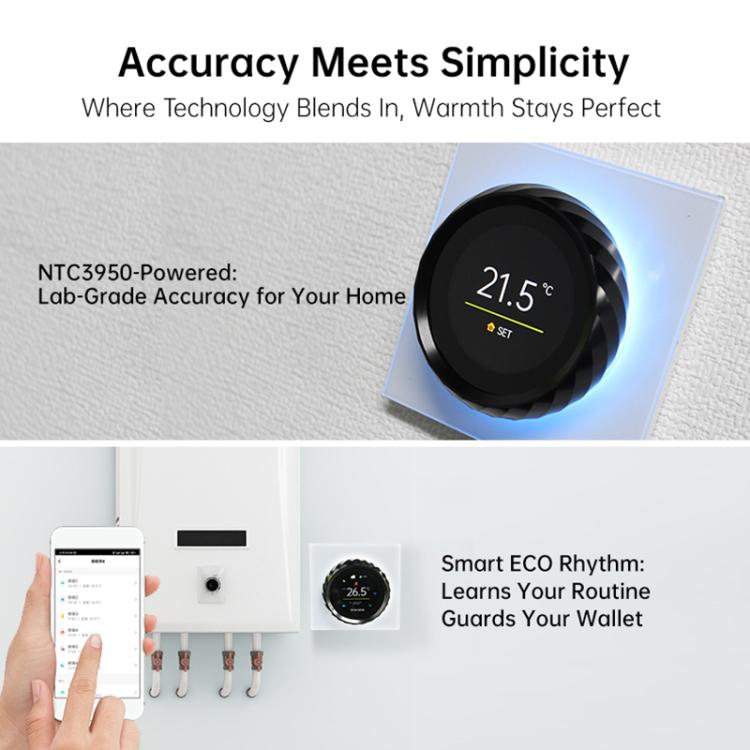

1. Accurate temperature control, equipped with NTC3950 sensor, providing the warmth you want
2. ECO mode automatically adjusts the energy-saving threshold, with a one-week programmable function, green energy saving, lower cost, smarter and more environmentally friendly
3. Full scene compatibility, can control water/electricity/boiler heating, intelligent temperature control

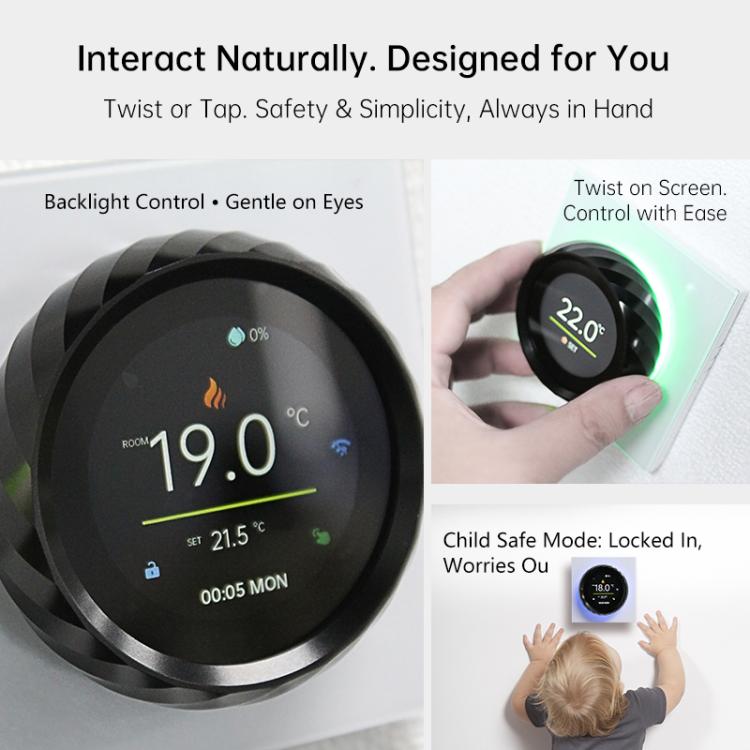

4. With anti-accidental touch child lock function, protect childrens safety

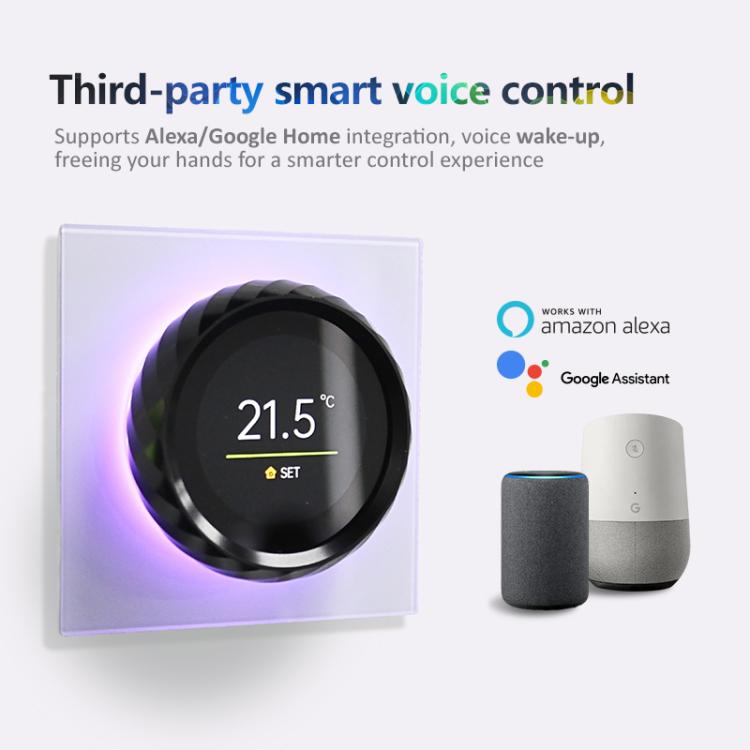

5. Good accessibility: suitable for ALEXA/GOOGLE HOME, fully experience the new voice control method

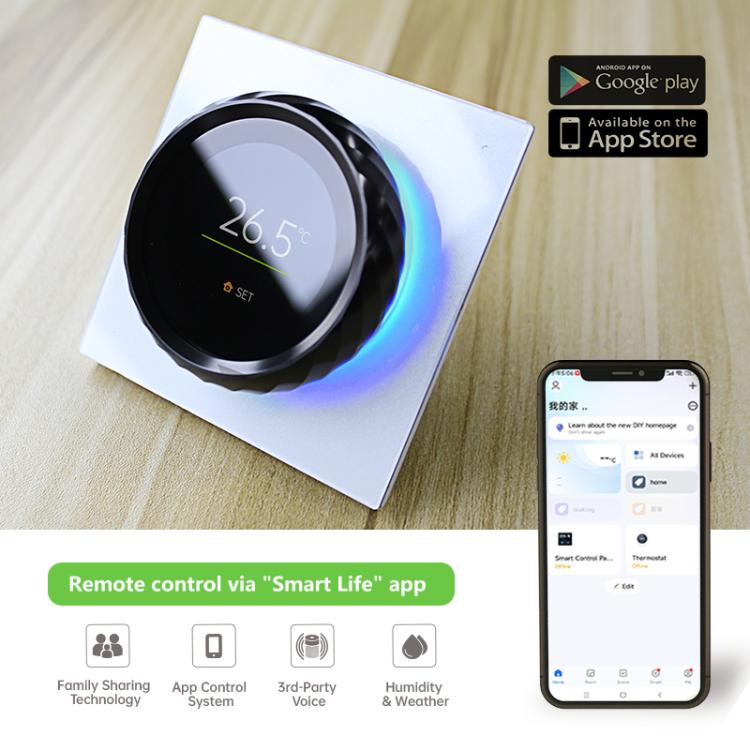

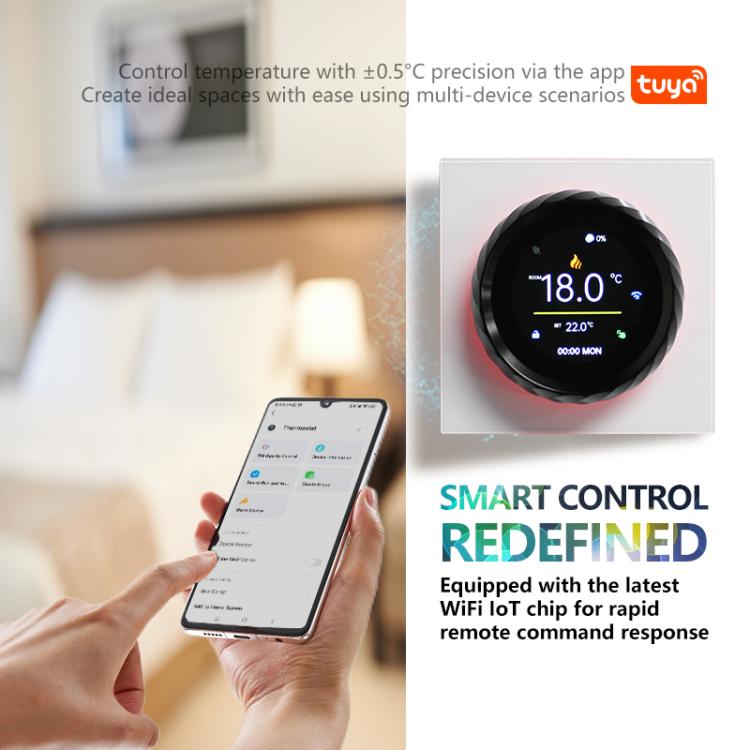

6. With WiFi function, it is more convenient and faster to use
Specifications:
1. Voltage range: 95-240 VAC, 50/60Hz or 24V DC/AC, 50/60Hz
(Please check the laser printed information on the back of the thermostat for the actual voltage)
2. Current: 5A (water heating/wall-mounted boiler/boiler), 16A (electric heating)
3. Sensor: NTC3950, 10K
4. Temperature error: +/-1 degree Celsius
5. Temperature control range: 5-45 degrees Celsius
6. Room temperature range: 5-70 degrees Celsius
7. Display temperature range: 5-70 degrees Celsius
8. Normal operating environment temperature: 0-45 degrees Celsius
9. Normal operating environment humidity: 5-95% RH (non-condensing)
10. Storage temperature: -10 to 45 degrees Celsius
11. Power: less than 1. 5W
12. Time error: less than 1%
13. Panel material: PC + ABS (flame retardant)
14. Installation embedded box: 86 x 86mm national standard or 60 x 60mm European dark box
15. Wiring port: 2 x 1.5 square millimeters or 1 x 2.5 square millimeters
16. Protection level: IP20
17. Button type: capacitive touch button

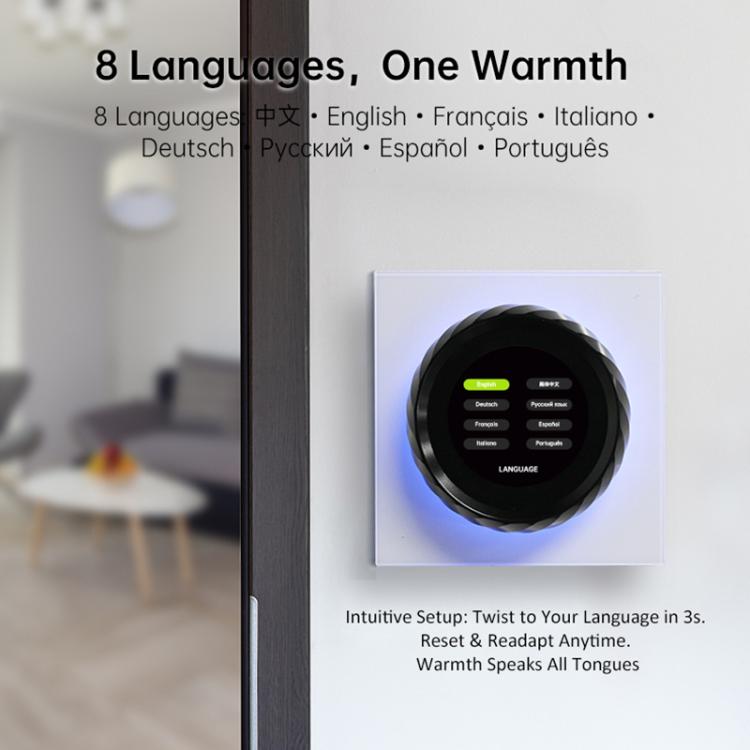

18. Supports eight language switching: Chinese, English, French, Italian, German, Russian, Spanish, Portuguese
On Appearance
1. Adopting 1.6-inch round TFT color screen, sensitive buttons give you an excellent experience, and the interface is more friendly
2. High-quality threaded side knob, imitation obsidian material, brings a delicate experience to your fingertips
3. 6H tempered glass panel, wear-resistant and scratch-resistant, protects the screen from scratches
4. Seven colors of atmosphere lights add color to your life, switch at will
5. A variety of back panels are available to suit different home styles
On Functionality
1. Accurate temperature control, equipped with NTC3950 sensor, providing the warmth you want
2. ECO mode automatically adjusts the energy-saving threshold, with a one-week programmable function, green energy saving, lower cost, smarter and more environmentally friendly
3. Full scene compatibility, can control water/electricity/boiler heating, intelligent temperature control
4. With anti-accidental touch child lock function, protect childrens safety
5. Good accessibility: suitable for ALEXA/GOOGLE HOME, fully experience the new voice control method
6. With WiFi function, it is more convenient and faster to use
Specifications:
1. Voltage range: 95-240 VAC, 50/60Hz or 24V DC/AC, 50/60Hz
(Please check the laser printed information on the back of the thermostat for the actual voltage)
2. Current: 5A (water heating/wall-mounted boiler/boiler), 16A (electric heating)
3. Sensor: NTC3950, 10K
4. Temperature error: +/-1 degree Celsius
5. Temperature control range: 5-45 degrees Celsius
6. Room temperature range: 5-70 degrees Celsius
7. Display temperature range: 5-70 degrees Celsius
8. Normal operating environment temperature: 0-45 degrees Celsius
9. Normal operating environment humidity: 5-95% RH (non-condensing)
10. Storage temperature: -10 to 45 degrees Celsius
11. Power: less than 1. 5W
12. Time error: less than 1%
13. Panel material: PC + ABS (flame retardant)
14. Installation embedded box: 86 x 86mm national standard or 60 x 60mm European dark box
15. Wiring port: 2 x 1.5 square millimeters or 1 x 2.5 square millimeters
16. Protection level: IP20
17. Button type: capacitive touch button
18. Supports eight language switching: Chinese, English, French, Italian, German, Russian, Spanish, Portuguese
