1. Material: ABS+brass+stainless steel
2. Applicable scenarios: suitable for power systems such as cars, RVs, yachts, ships, etc.
3. Current: 100A per block, 30A per circuit
4. Voltage: 32V DC

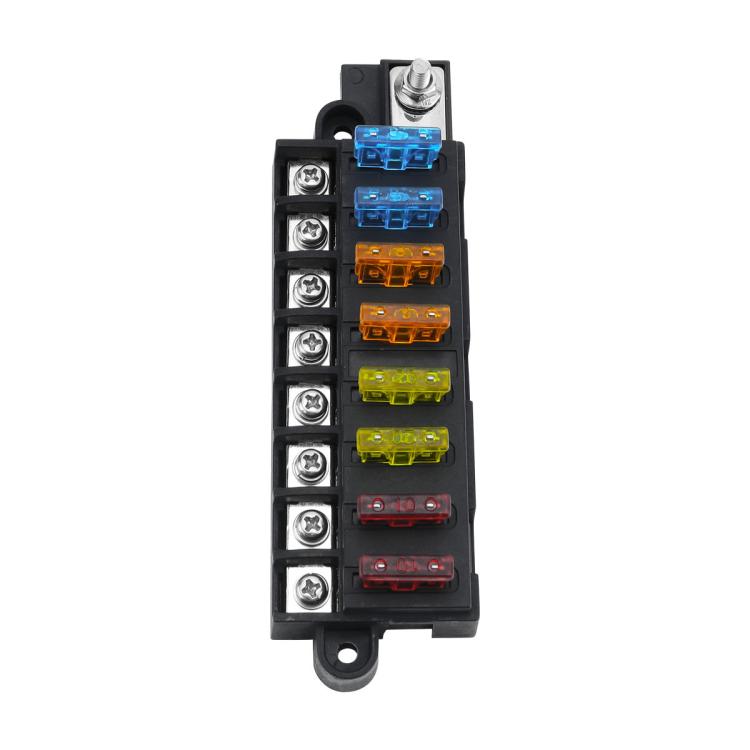

5. Function: Can provide surface mount circuit protection for ATO/ATC fuses
6. Features: Flame retardant insulation, protect circuits, stabilize circuits, single-sided design allows wire entry from one side
7. Designed with fastener terminals and built with tin-plated copper parts to increase conductivity and reduce operating temperature

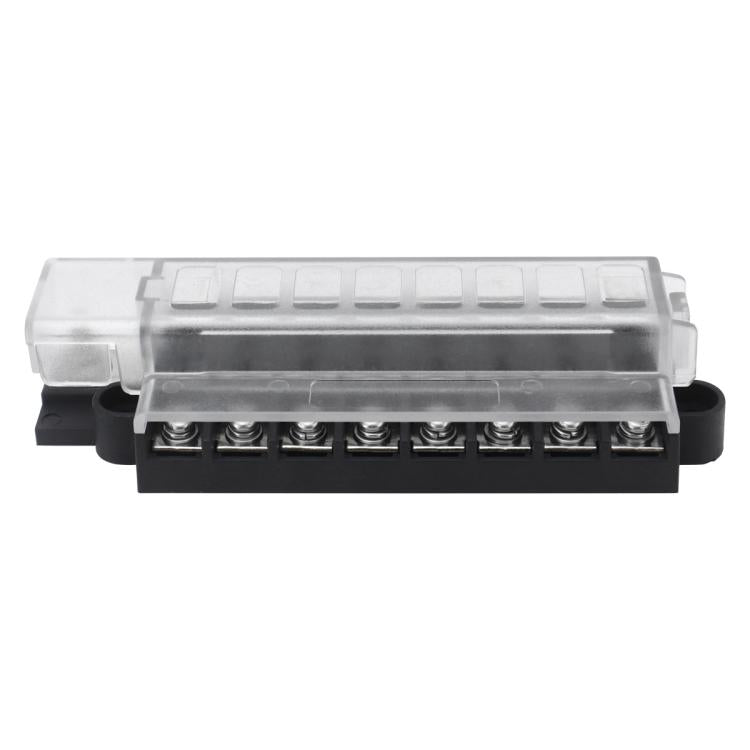

8. Optional cover protects conductive surfaces from accidental short circuits, labels each circuit, and stores spare fuses
9. The fuse block is ideal for use as a sub-panel in a DC distribution system, which solves the problem of using large and expensive circuit breaker panels as circuit protection for electronics and other branch circuits
10. Net weight: 186.5G

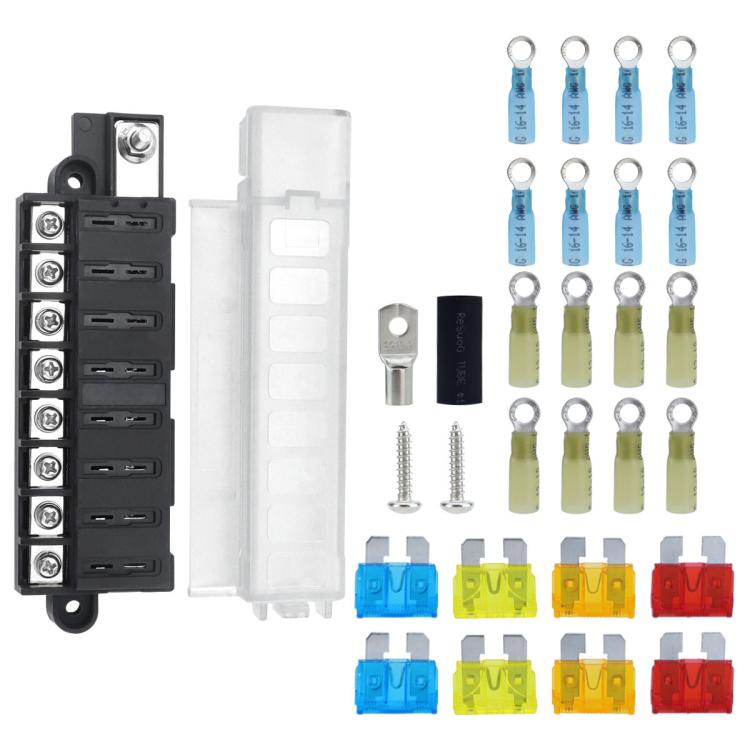

11. Packaging: fuse box, accessories x 26, screws x 2
Specification:
| Package Weight |
|
