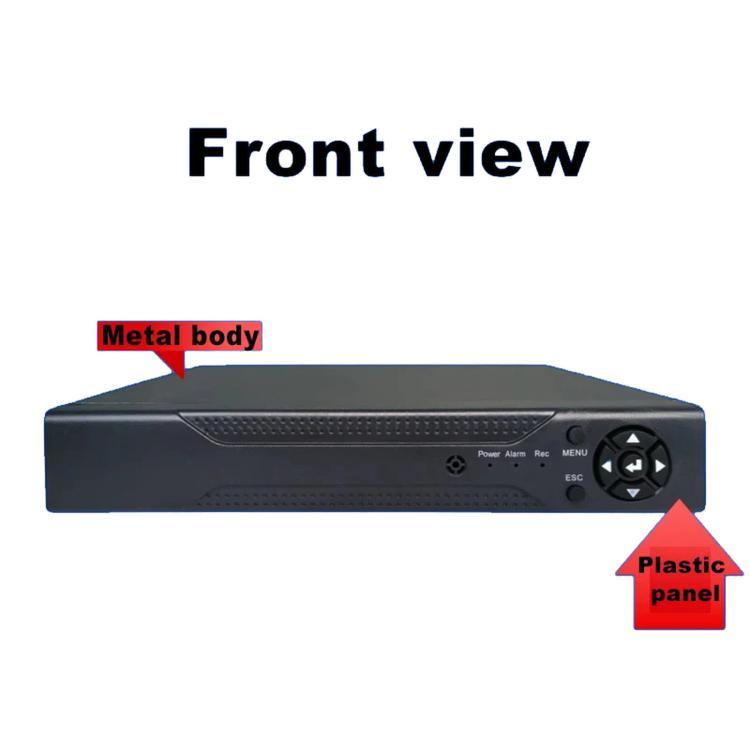

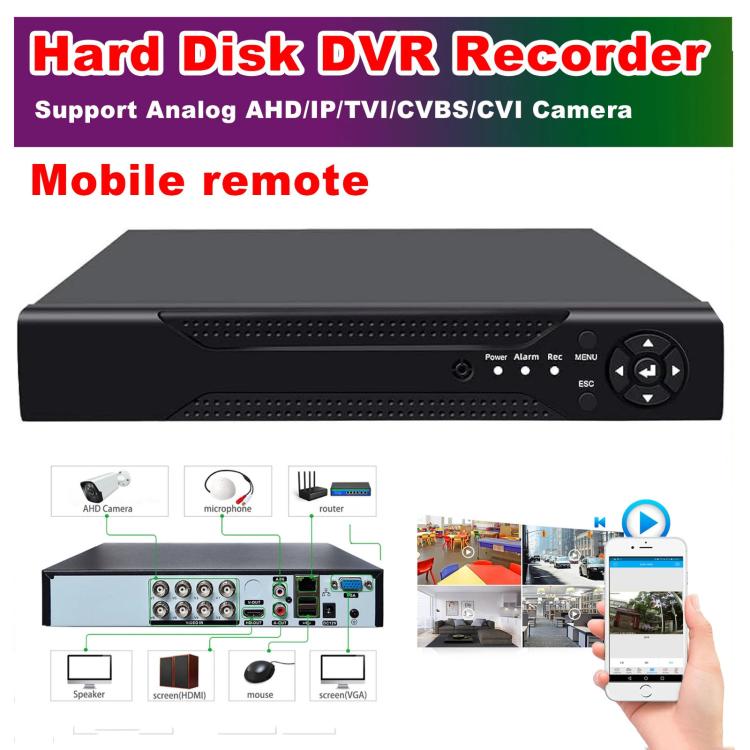

4CH 5-In-1 Hybrid Security DVR Recorder 1080N High Definition Home CCTV System For Analog/AHD/CVI/TVI/IP Cameras(US Plug)

1. Main Processor: Industrial-grade embedded chip Hi3520D V300
2. Video Compression Standard: H.264

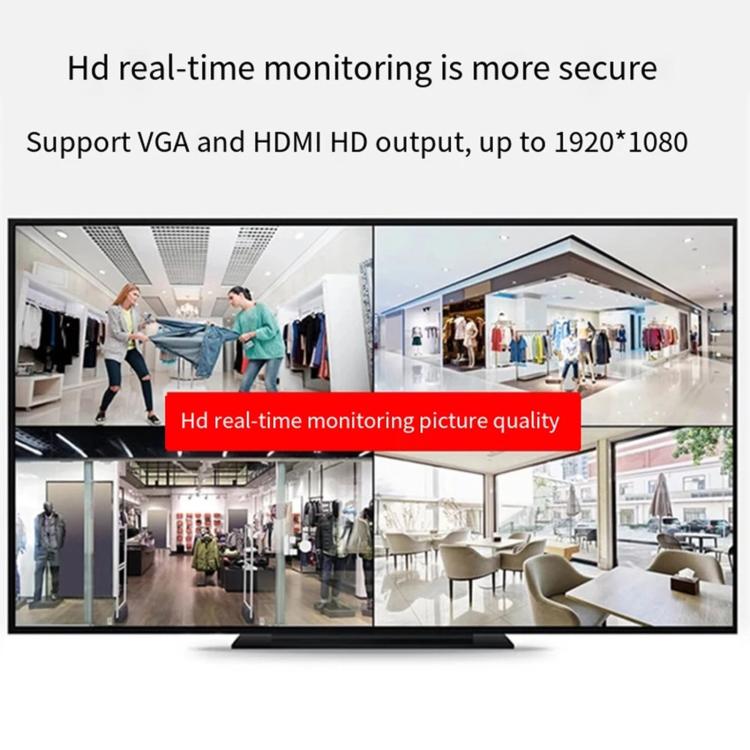

3. Monitoring Quality: VGA; HDMI (HD)
4. Preview Capability: 4-Channel: 4 x 1080N / 8-Channel: 8 x 1080N
5. Encoding/Decoding Capability: 4-Channel: 4 x 1080N @12fps / 8-Channel: 8 x 1080N @12fps
6. Input Modes:
--Coaxial: 8 x 1080N; 4 x 1080P
--Hybrid: 2 x 1080P (Coaxial) + 2 x 1080P (Network); 4 x 1080N (Coaxial) + 4 x 960P (Network)
--Network: 16 x 1080P; 9 x 1080P; 16 x 960P; 4 x 5M

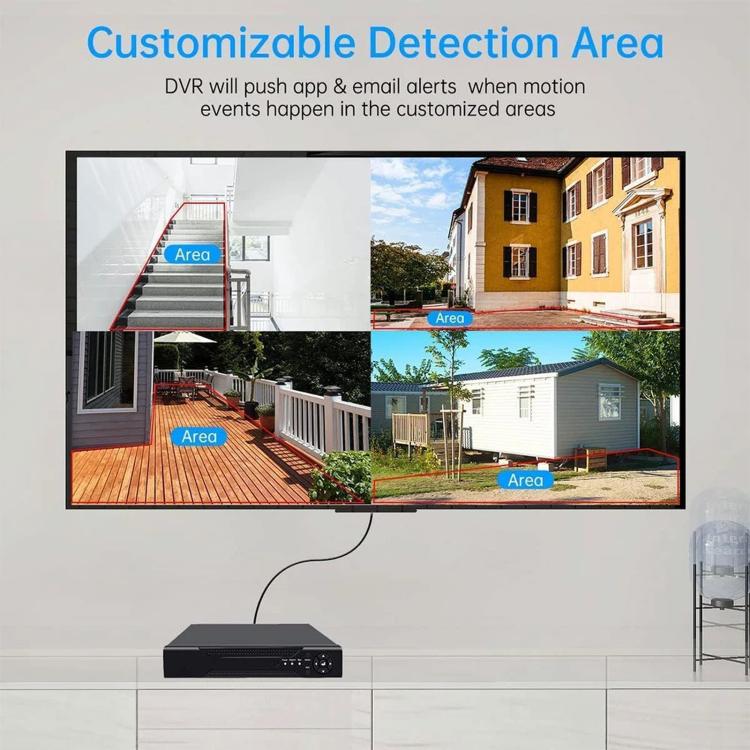

7. Motion Detection: 192 (16 x 12) detection zones configurable per screen; multi-level sensitivity settings available (limited to local channels)
8. Audio Compression: G.711A
9. Intercom: Supported
10. Recording Modes: Manual, Alarm, Motion Detection, Scheduled
11. Recording Search: Time-point search, Calendar search, Event search, Channel search
12. Recording Storage: Local HDD, Network (HDD not included)
13. Recording Backup: Network backup, USB portable HDD, USB burner, SATA burner

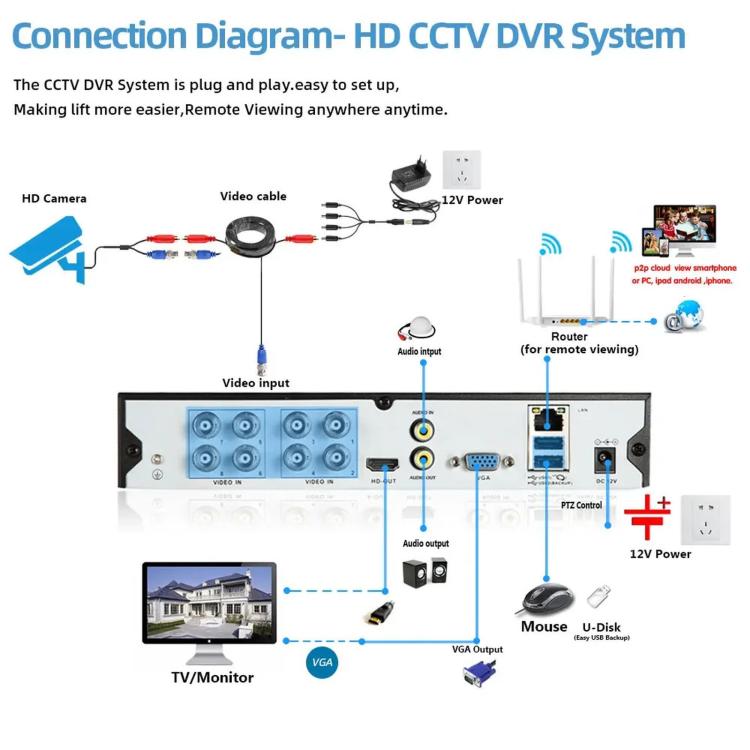

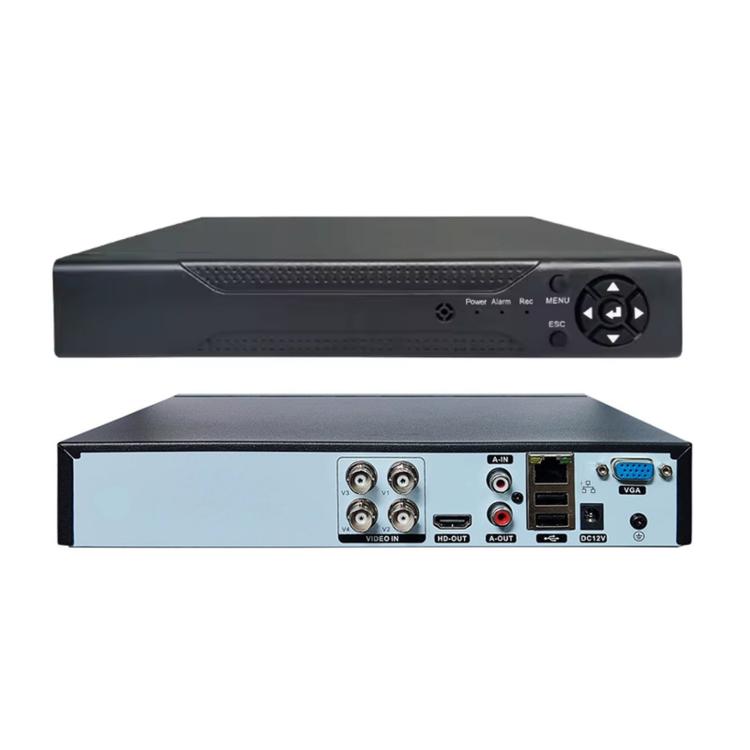

14. Interfaces:
--Video Input: 4-channel BNC / 8-channel BNC
--Video Output: 1 x VGA, 1 x HDMI
--Audio I/O: 1 (4) / 1
--Alarm I/O: 0 / 0
--Network Interface: RJ45 10M/100M Adaptive Ethernet Port
--Expansion Interfaces: 2 x USB Ports

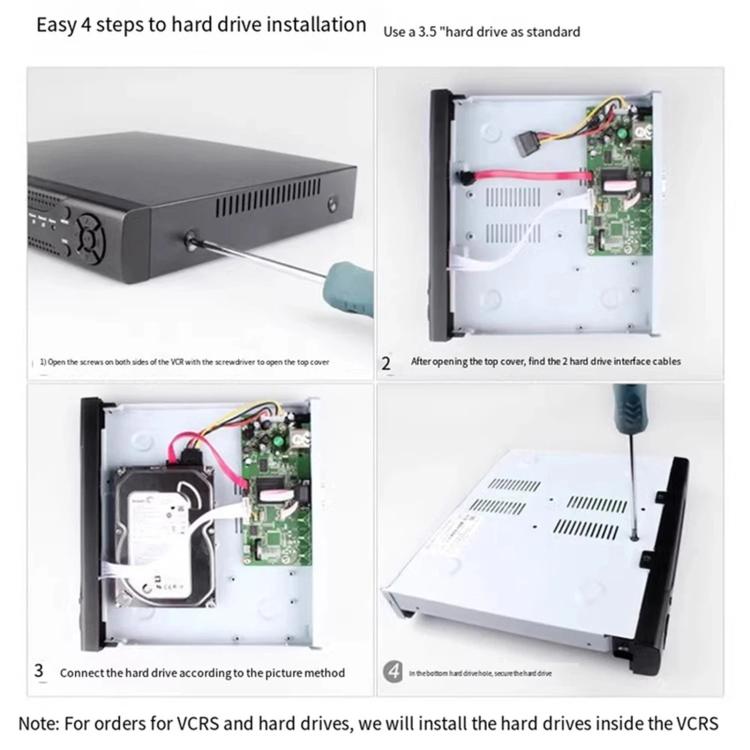

--Hard Drive Interface: 1 x SATA Port (supports up to 8TB)
15. Power Supply: 12V / 2A
