8-inch TFT LED HD Display:
1. Aspect Ratio: 4:3
2. Resolution: 1024×768
3. Contrast Ratio: 300:1
4. Response Time: 12ms
5. Viewing Angle: 120° (H) / 100° (V)
6. Power Input: 12V 1A
7. Brightness: 300cd/m2
8. Operating Temperature: 10°C – 60°C
9. Video Input: 3Vp-p CVBS
10. OSD Menu Languages: English / French / German / Chinese / Italian / Spanish / Japanese / Korean
11. Video Input Interfaces: HDMI / VGA / BNC / AV
10-inch TFT LED HD IPS Display:
1. Aspect Ratio: 16:9
2. Resolution: 1280×800
3. Display Area: 225 x 127mm
4. Color Depth: 3 million colors
5. Contrast Ratio: 500:1
6. Response Time: 8ms
7. Power Input: 12V 1A
8. Brightness: 350cd/m2
9. Operating Temperature: 10°C – 60°C
10. Video Input: PAL / NTSC
11. Video Input Interfaces: HDMI / VGA / BNC / AV
12. Sync Range: 30–80 kHz (Horizontal), 55–75 Hz (Vertical)
13. Viewing Angle: 170° (Left/Right: 85°/85°), 150° (Up/Down: 70°/85°)
14. OSD Menu Languages: English / French / German / Chinese / Italian / Spanish / Japanese / Korean
11.6-inch TFT LED HD IPS Display:
1. Aspect Ratio: 16:9
2. Resolution: 1920x1080
3. Display Area: 256 x 144mm
4. Color Depth: 6 Million
5. Contrast Ratio: 500:1
6. Response Time: 8ms
7. Power Input: 12V 1A
8. Brightness: 350cd/m2
9. Operating Temperature: 10–60°C
10. Video Input: PAL/NTSC
11. Video Input Interface: HDMI/VGA
12. Sync Range: 30–80 kHz (Horizontal), 55–75 Hz (Vertical)
13. Viewing Angle: 170° (L/R: 85°/85°), 150° (U/D: 70°/85°)
14. OSD Menu Languages: English / French / German / Chinese / Italian / Spanish / Japanese / Korean

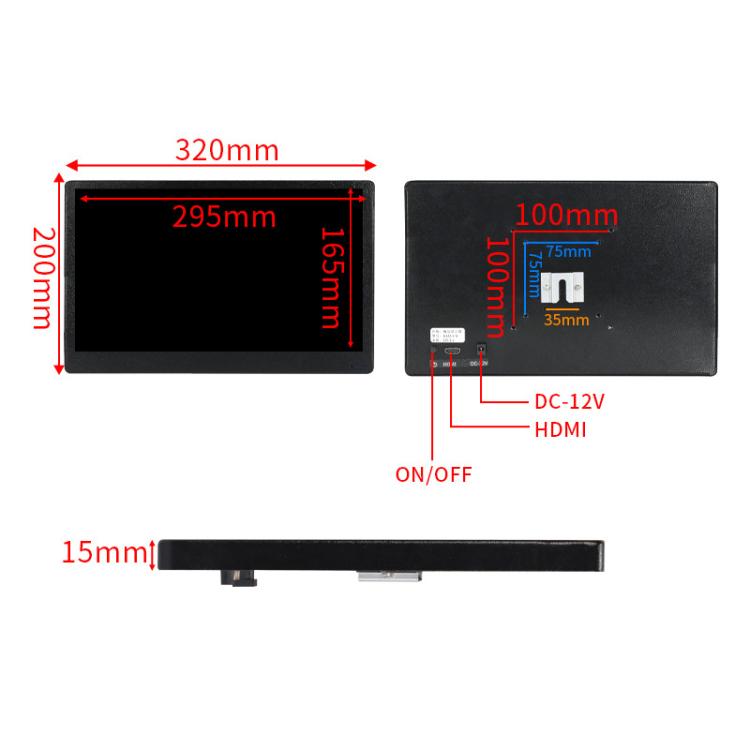

13.3-inch TFT LED HD IPS Display:
1. Aspect Ratio: 16:9
2. Resolution: 1920×1080
3. Display Area: 294 x 165mm
4. Color Depth: 8 Million
5. Contrast Ratio: 800:1
6. Response Time: 5ms
7. Power Input: 12V 1A
8. Brightness: 400cd/m2
9. Operating Temperature: 10–60°C
10. Video Input: PAL/NTSC
11. Video Input Interface: HDMI
12. Sync Range: 30–80 kHz (Horizontal), 55–75 Hz (Vertical)
13. Viewing Angle: 170° (L/R: 85°/85°), 150° (U/D: 70°/85°)
14. OSD Menu Languages: English / French / German / Chinese / Italian / Spanish / Japanese / Korean
Specification:
|
Package Weight
|
| One Package Weight |
1.50kgs / 3.32lb
|
| One Package Size |
38cm * 26cm * 8cm / 14.96inch * 10.24inch * 3.15inch
|
| Carton Weight |
15.00kgs / 33.07lb
|
| Carton Size |
40cm * 33cm * 31cm / 15.75inch * 12.99inch * 12.2inch
|
| Loading Container |
20GP: 651 cartons * 10 pcs = 6510 pcs
40HQ: 1512 cartons * 10 pcs = 15120 pcs
|
|
