Features

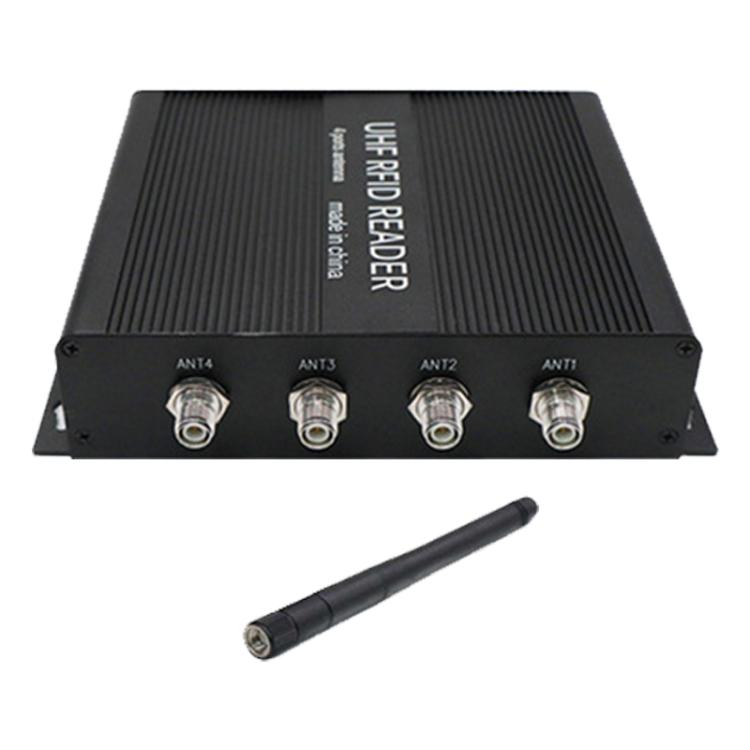

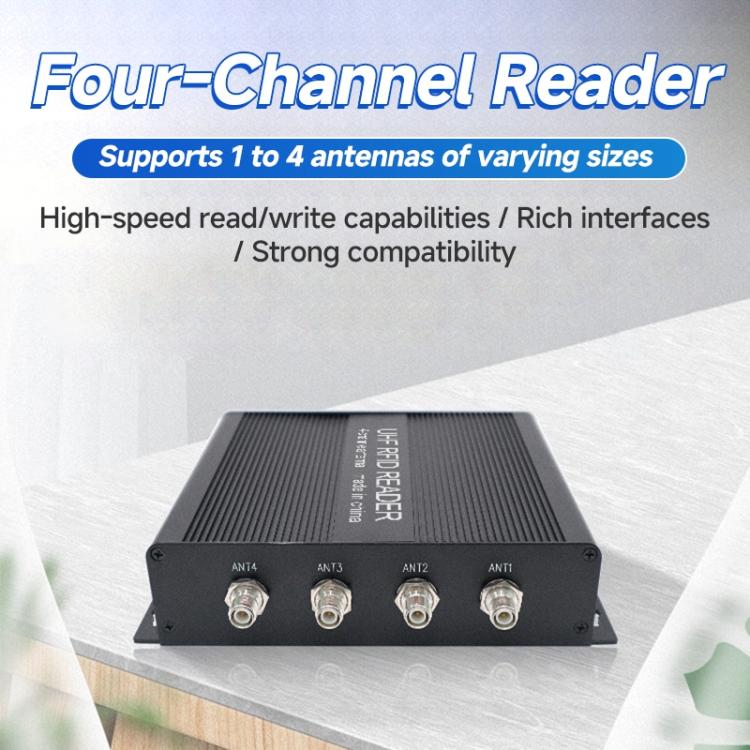

1. Four-Channel Design: Supports up to four antenna connections for wider coverage and flexible installation in various environments.
2. Long-Range Reading: Advanced UHF (Ultra High Frequency) technology enables fast and accurate tag reading at long distances, ideal for large warehouses or outdoor gate systems.
3. High Performance: Features high sensitivity and strong anti-interference capabilities for stable operation in complex industrial settings.
4. Multiple Protocol Support: Compatible with standard UHF RFID protocols, ensuring seamless integration with different systems.
5. Durable & Reliable: Built with industrial-grade materials to withstand harsh environments, ensuring long-term, continuous operation.

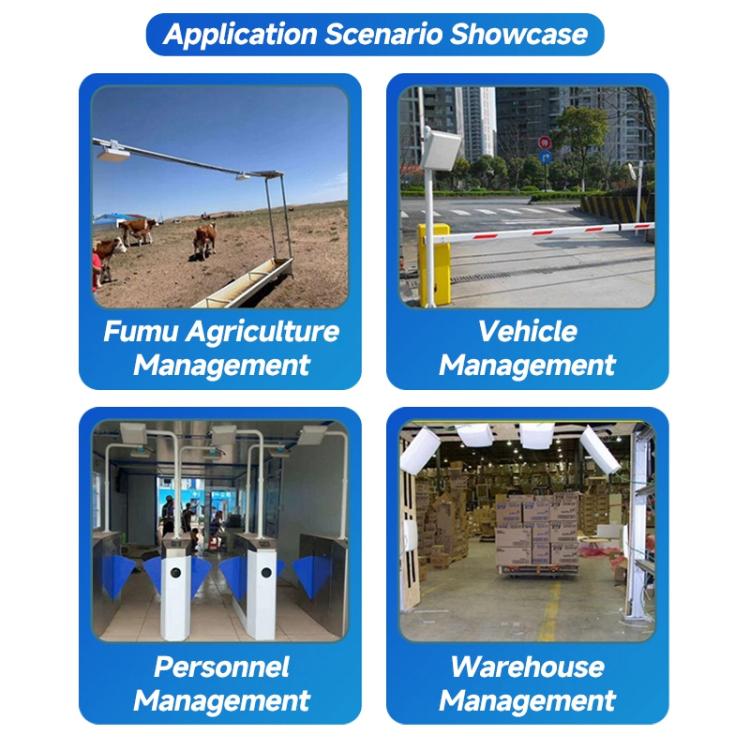

6. Versatile Applications: Perfect for intelligent access control, logistics tracking, production line management, and automated inventory systems.
Specifications
1. Product Model: FF-701
2. Chipset: Impinj E710
3. Supported Protocols: ISO18000-6C/6B

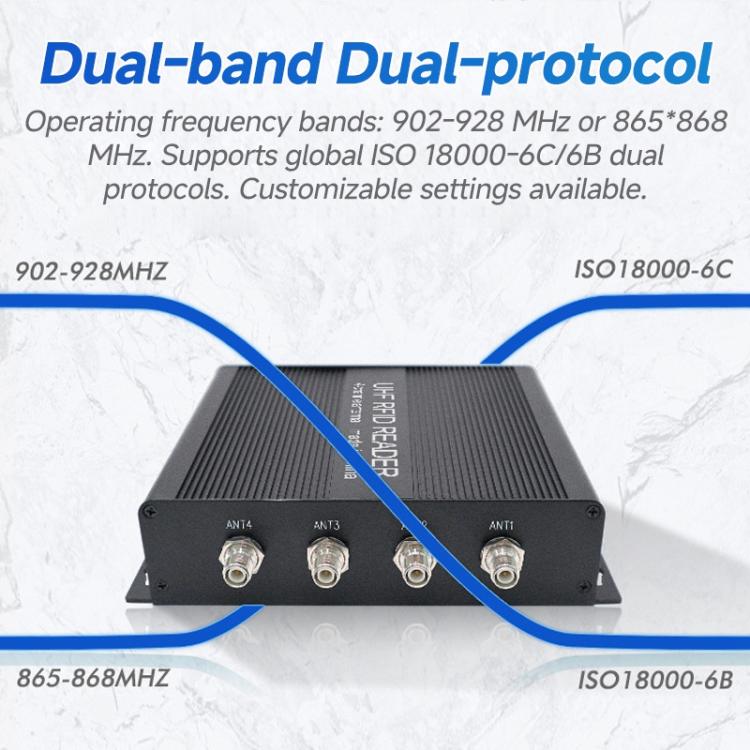

4. Operating Frequency: 902-928 MHz; 865*868 MHz, global frequency band, software-configurable
5. Operating Mode: Wide Spectrum Frequency Hopping Sweep (FHSS)
6. RF Power: 0~33dBm, software-adjustable
7. Card Reading Speed: Software-configured, less than 6ms per 64-bit card, 500 cards/second for multiple tags

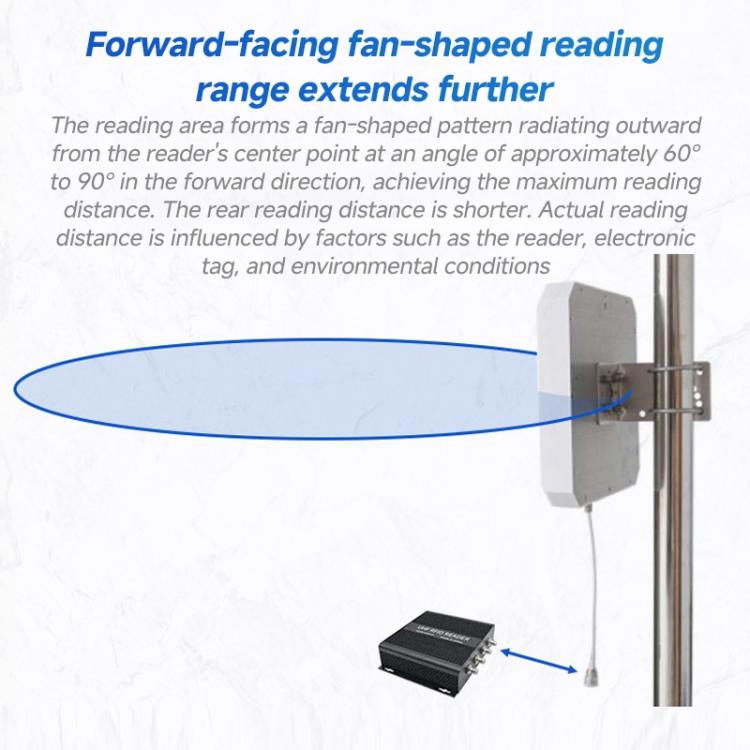

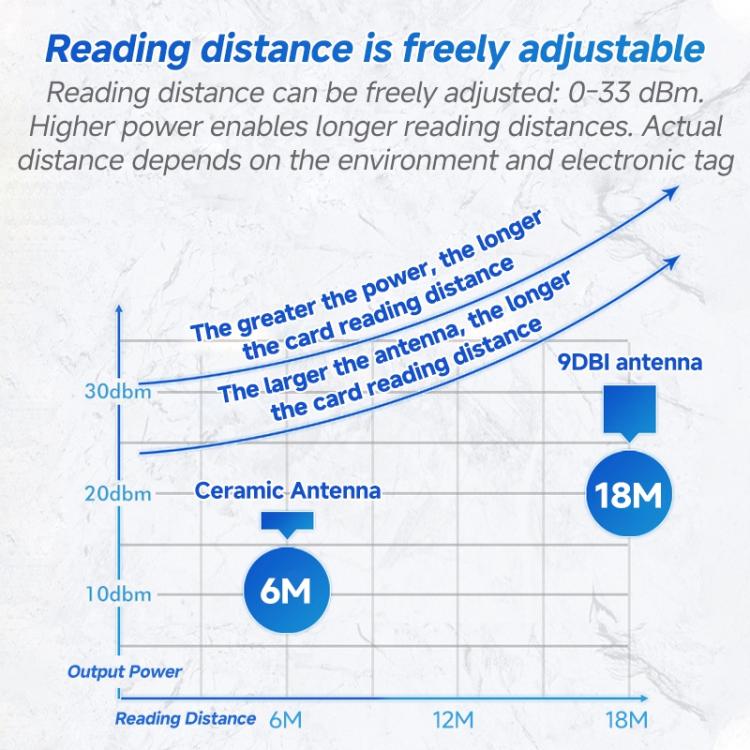

8. Card Reading Distance: Greater than 20 meters, antenna and tag dependent
9. Card Reading Indicator: Buzzer and LED

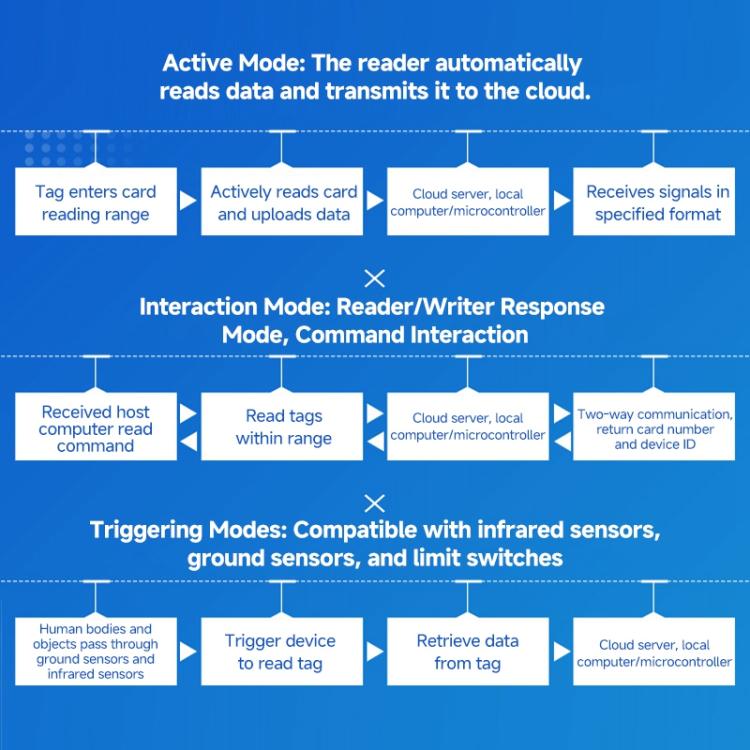

10. Card Reading Modes: Timed automatic reading, external trigger-controlled reading, command-based reading
11. Operating Temperature: -20 degree C to +80 degree C

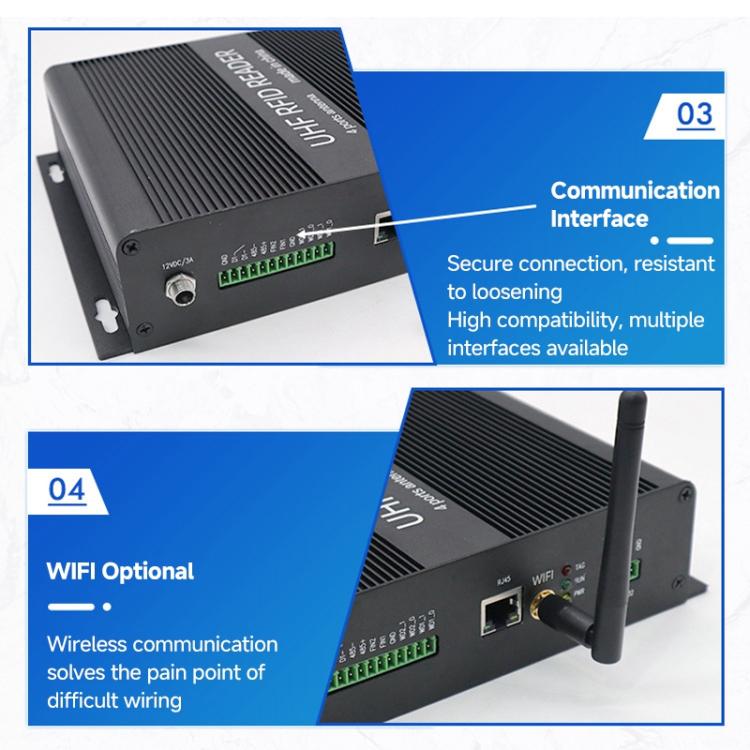

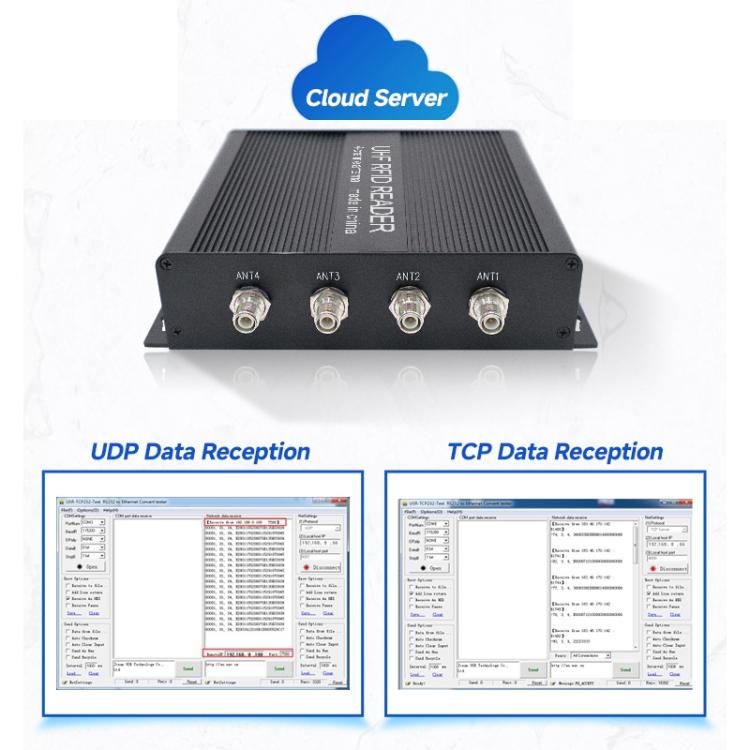

12. Data Interface: Ethernet RJ45, Serial port: RS232
13. Power supply: DC+12V 3A DC power supply, includes a power adapter, supports 9-16V
14. Dimensions: 164 x 204 x 50mm
15. Net weight: 3kg

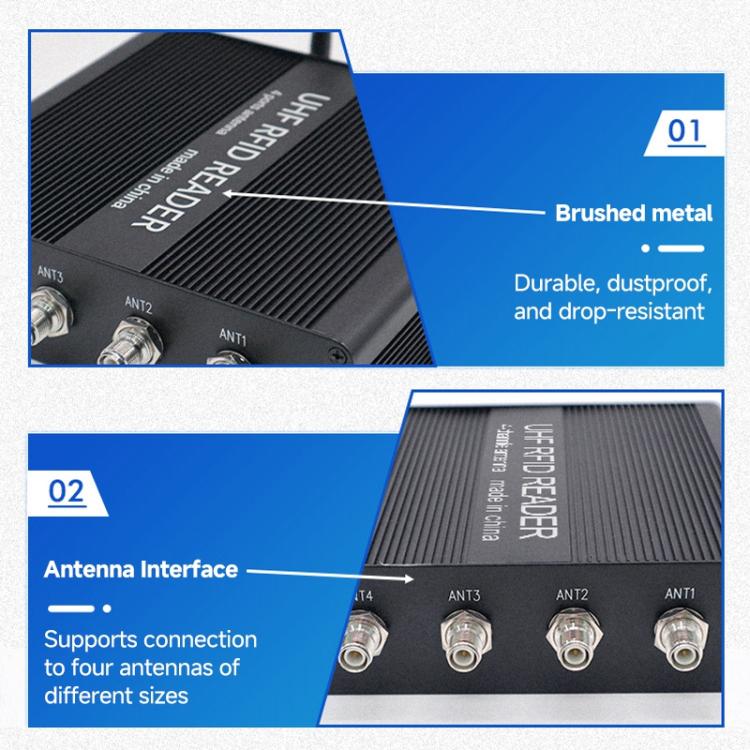

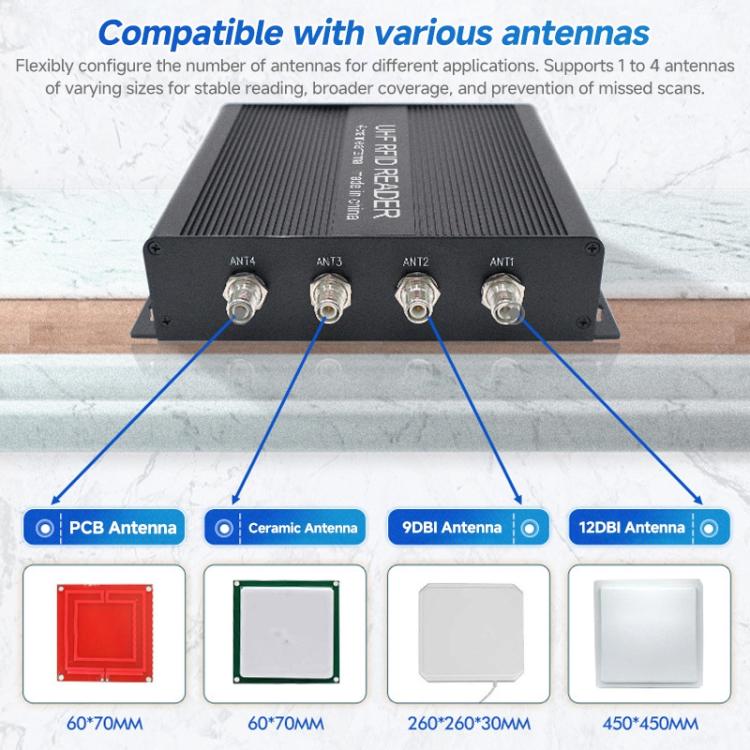

16. Antenna: 1-4 external antennas
1. Four-Channel Design: Supports up to four antenna connections for wider coverage and flexible installation in various environments.
2. Long-Range Reading: Advanced UHF (Ultra High Frequency) technology enables fast and accurate tag reading at long distances, ideal for large warehouses or outdoor gate systems.
3. High Performance: Features high sensitivity and strong anti-interference capabilities for stable operation in complex industrial settings.
4. Multiple Protocol Support: Compatible with standard UHF RFID protocols, ensuring seamless integration with different systems.
5. Durable & Reliable: Built with industrial-grade materials to withstand harsh environments, ensuring long-term, continuous operation.
6. Versatile Applications: Perfect for intelligent access control, logistics tracking, production line management, and automated inventory systems.
Specifications
1. Product Model: FF-701
2. Chipset: Impinj E710
3. Supported Protocols: ISO18000-6C/6B
4. Operating Frequency: 902-928 MHz; 865*868 MHz, global frequency band, software-configurable
5. Operating Mode: Wide Spectrum Frequency Hopping Sweep (FHSS)
6. RF Power: 0~33dBm, software-adjustable
7. Card Reading Speed: Software-configured, less than 6ms per 64-bit card, 500 cards/second for multiple tags
8. Card Reading Distance: Greater than 20 meters, antenna and tag dependent
9. Card Reading Indicator: Buzzer and LED
10. Card Reading Modes: Timed automatic reading, external trigger-controlled reading, command-based reading
11. Operating Temperature: -20 degree C to +80 degree C
12. Data Interface: Ethernet RJ45, Serial port: RS232
13. Power supply: DC+12V 3A DC power supply, includes a power adapter, supports 9-16V
14. Dimensions: 164 x 204 x 50mm
15. Net weight: 3kg
16. Antenna: 1-4 external antennas
