5 inch Bluetooth AUX Mobile Phone Interconnection USB Interface Car MP5(151W)

Basic functions
1. Radio
2. Read USB disk, SD card (audio/video/picture)
3. Bluetooth function
4. RCA audio output can be connected to subwoofer
5. Rear view function (camera optional)
6. Video input and output function
7. Original car steering wheel learning function
8. Mobile phone interconnection wired and wireless Android AUTO/for Apple CarPlay
9. Colorful lights
10. Rear USB
11. USB charging port
12. Power supply positive and negative pole reverse connection protection function (the power line positive and negative poles are connected incorrectly, which will not cause the circuit board to burn)

Basic parameters:
1. System: Allwinner melis system
2. Software solution: F133

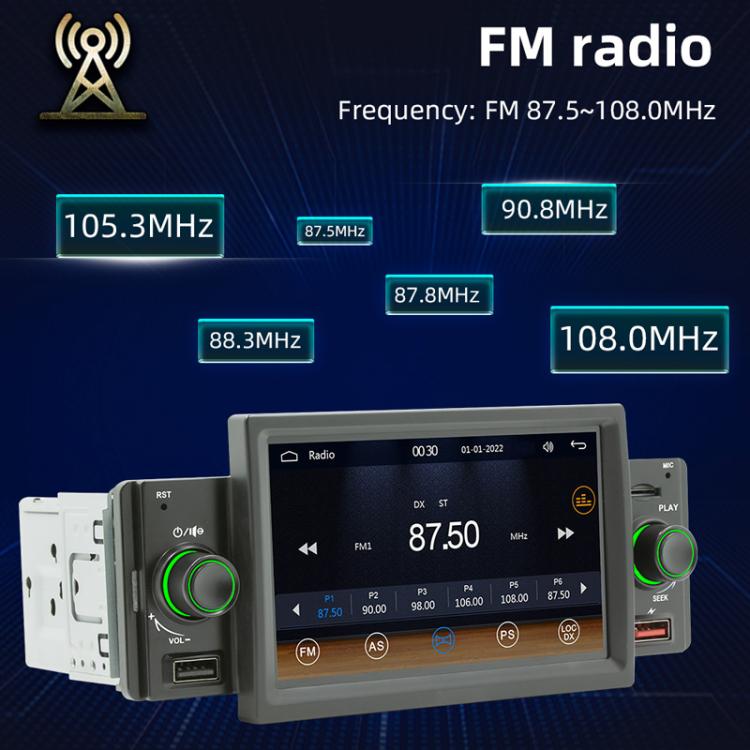

3. Radio frequency: FM 87.5~108.0MHz (Can switch the radio frequency of China, America 1, America 2, Japan, Russia, Middle East, Europe)
4. Radio IC: QN8035
5. Amplifier IC: CD7388CZ
6. Output power: 60Wx4
7. Working voltage: 12~14.4V
8. Bluetooth version: Version 5.1 (default name: SWL-BT)
9. Language parameters: English, Chinese, French, German, Arabic, Italian, Japanese, Portuguese, Russian, Spanish, Hebrew, Polish, Turkish, Czech, Korean
10. Support mobile phone interconnection, reversing image, video playback warning, steering wheel control (support button learning), video output, USB (front USB charging + front USB2.0 reading + rear USB2.0 reading), TF card, reset button
11. Installation size: 178x52mm
12. Shell size: 188x82MM
13. Host depth: 70mm
14. Factory password: 113266

Performance parameters
CPU: F133
Running memory: 533M
Display resolution: 800x480
Screen size: 5 inches

RCA port parameters
Audio output: 2 channels (left channel + right channel)
Video output: 2 channels
Rear external microphone input: support (external microphone optional)
Video input: 1 channel
Reversing video input: 1 channel

Format parameters
Audio format: MP3/AAC/APE/OGG/M4A/RA/WAV
Video format: H263/H264/H265/DIVX HD (720P 1080I 1080P) AVI/FLV/MKV/MPEG/MP4/WMV9/VC/ASF/TS/QT
Image format: JPEG/PNG/BMP/GIF/TIFF

Packing list:
- Host
- Instruction manual
- Power cord
- Car key
