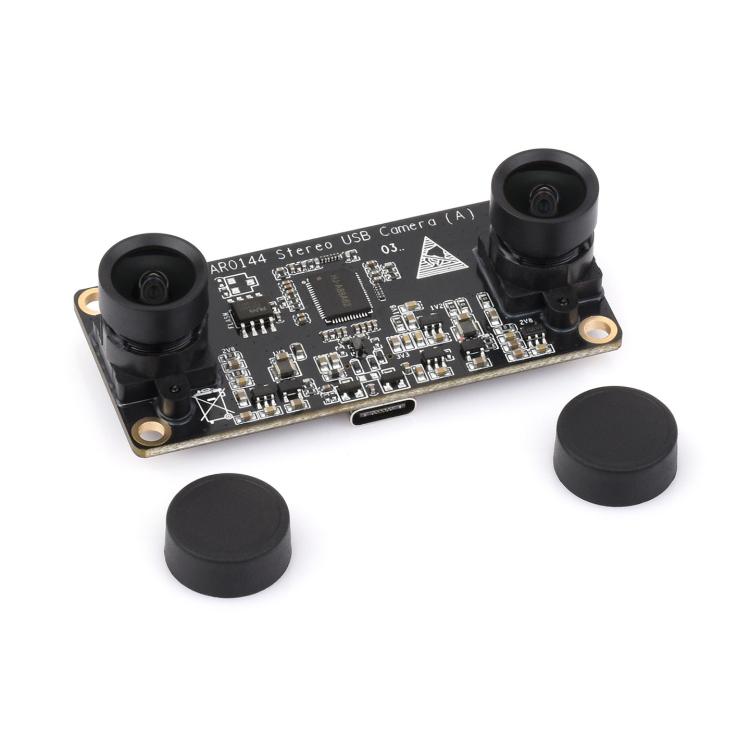

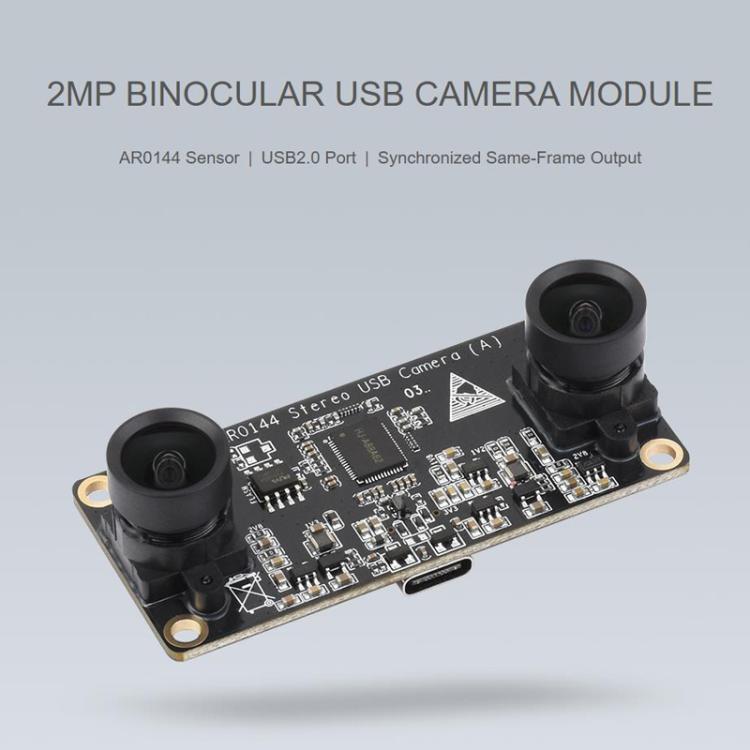

WAVESHARE AR0144 2MP Stereo USB Camera Module

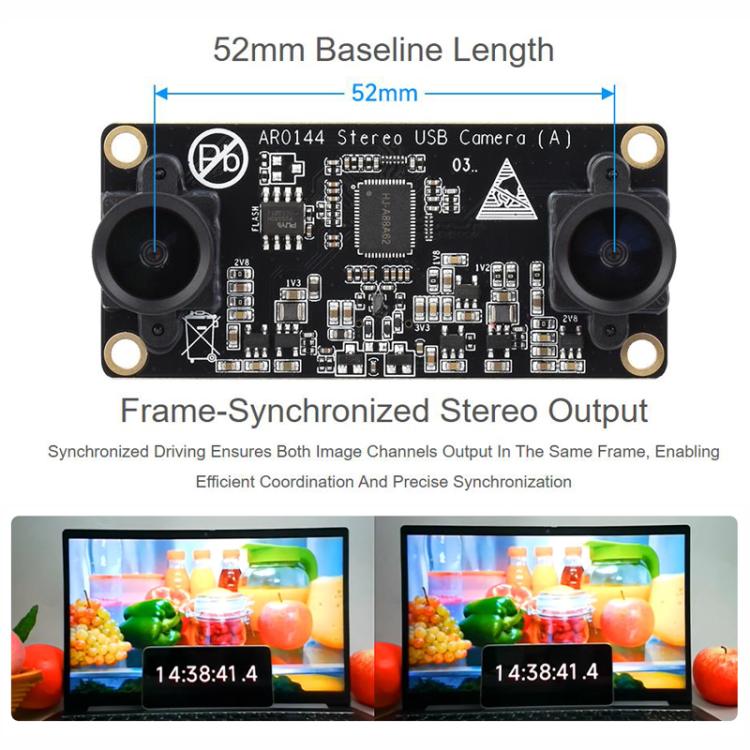

1. Synchronized operation with dual-screen, frame-by-frame output for efficient collaboration and precise synchronization
2. Features a distortion-free lens with a distortion rate of <0.2%, ensuring distortion-free imaging and maximum fidelity to the actual scene
3. Features a USB 2.0 interface; no driver installation required. Easily connects to various USB host devices—whether computers, smart devices, or other USB-enabled terminals—simply plug and play for quick setup, saving installation time
4. Resolution: 2.0 MP
5. Image sensor: AR0144
6. Interface type: USB 2.0 (Type-C)
7. Baseline length: 52mm
8. Communication interface: Type-C USB 2.0
9. Operating voltage: 5V ±5%

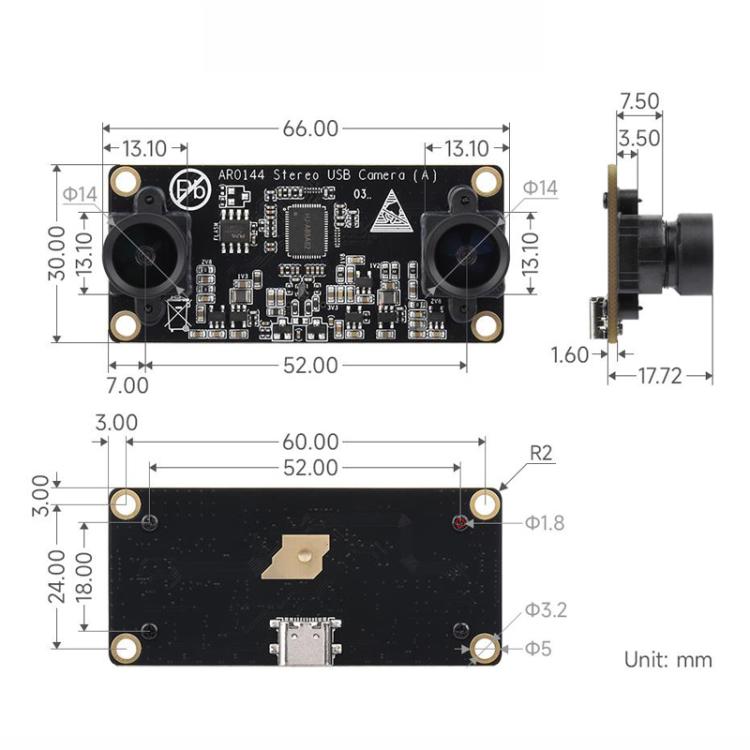

10. Size: about 66 x 30 x 17.72mm

Camera
1. Sensor size: 1/4 inch
2. Aperture (F): 2.2
3. Focal length (EFL): 2.88 mm
4. Field of view (FOV): 74° (D) / 65° (H) / 43° (V)
5. Focusing method: fixed focus
6. Distortion: <0.2%
7. IR cut filter: 650nm filter
8. Shutter type: global shutter

Image:
1. Supported formats: MJPG, YUY2
2. Still image resolution: 2560 x 720 (1280 x 720)
3. Video recording support:
- MJPG: 30 FPS 2560 x 720, 60 FPS 1600 x 600, 60 FPS 1280 x 720, 60 FPS 800 x 600, 60 FPS 640 x 480, 120 FPS 640 x 352, 120 FPS 640 x 360
- YUY2: 5 FPS 2560 x 720, 10 FPS 1280 x 720, 20 FPS 800 x 600, 30 FPS 640 x 480, 30 FPS 640 x 360
