1. Signal-to-noise ratio: >93dB
2. Frequency response: 20kHz (+/-0.3dB), in bypass mode
3. Maximum clarity boost: +13dB
4. Maximum low-frequency compensation: +13dBu
5. Input impedance: balanced 20KΩ / unbalanced 10KΩ
6. Output impedance: balanced 300Ω / unbalanced 150Ω

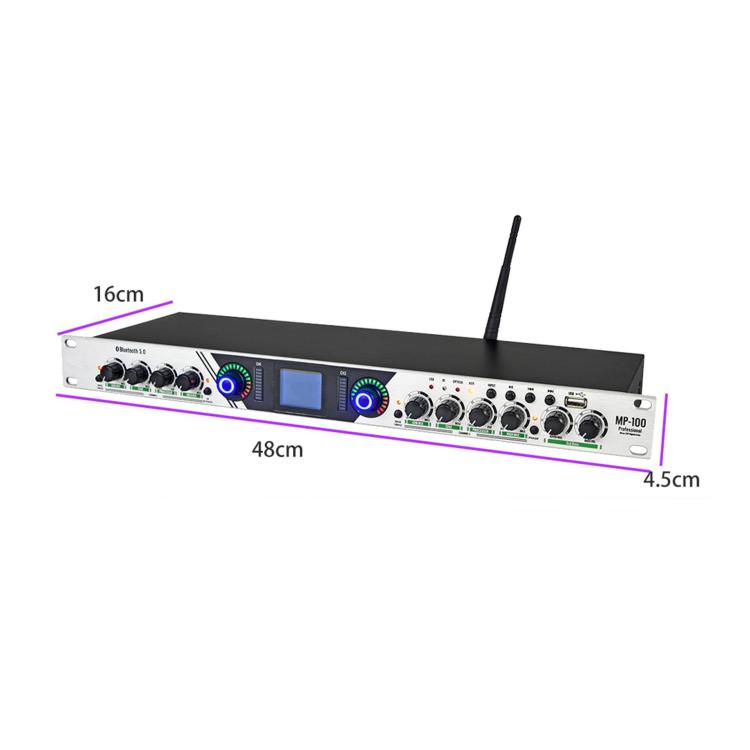

7. Size: about 48 x 16 x 4.5cm
Features:

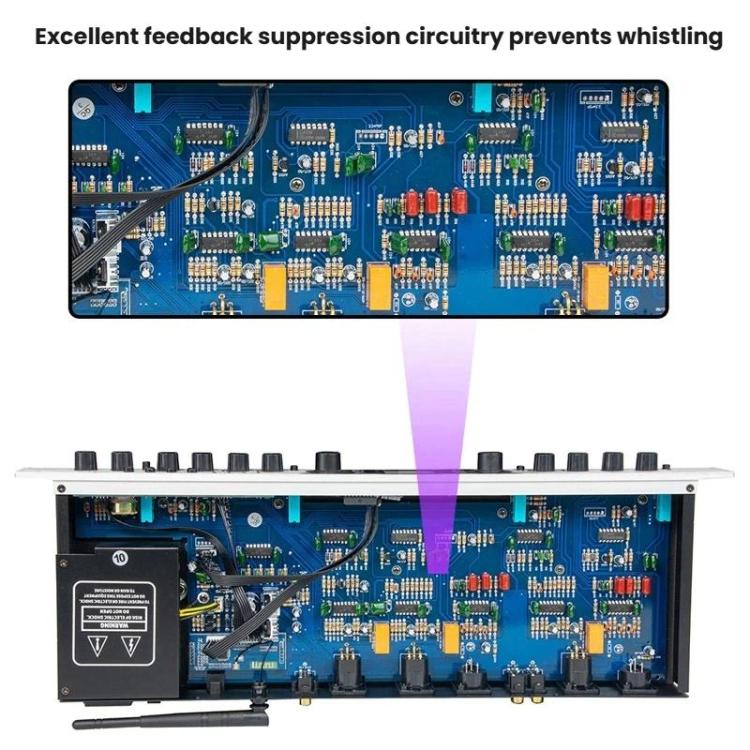

1. Superior feedback suppression circuitry prevents howling
2. Independent stereo high/low-frequency sound excitation enhances sonic layering clarity
3. Eliminates redundant low-frequency signals that waste amplifier power, reducing system load
4. Selectable center frequency for high-frequency boost (1K-8KHz)
5. Independent high/low-frequency gain design
6. Balanced inputs/outputs
Specification:
|
Package Weight
|
| One Package Weight |
3.20kgs / 7.06lb
|
| One Package Size |
50cm * 18cm * 8cm / 19.69inch * 7.09inch * 3.15inch
|
| Carton Weight |
26.60kgs / 58.64lb
|
| Carton Size |
51cm * 38cm * 34cm / 20.08inch * 14.96inch * 13.39inch
|
| Loading Container |
20GP: 404 cartons * 8 pcs = 3232 pcs
40HQ: 939 cartons * 8 pcs = 7512 pcs
|
|
