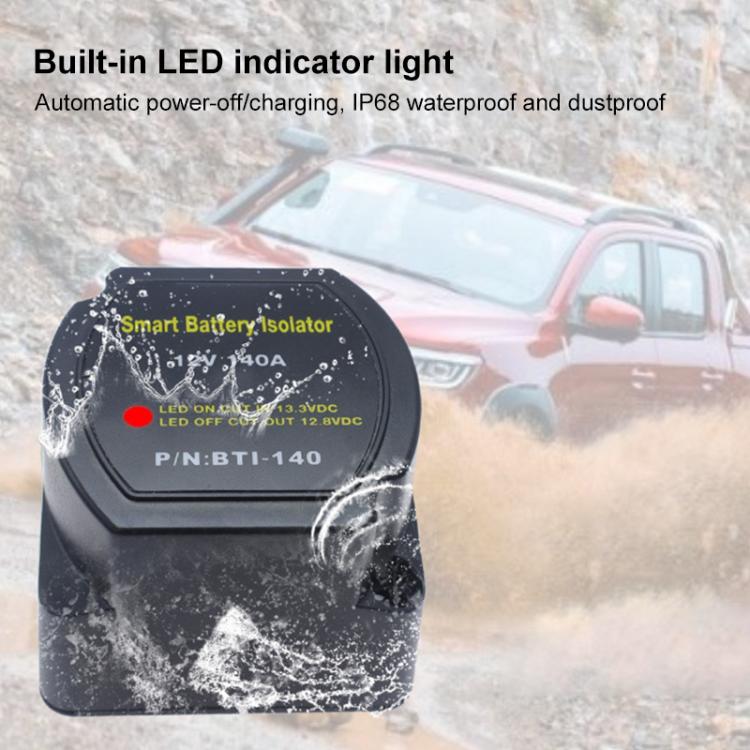

1. Strong waterproof, low loss, good heat dissipation, high efficiency
2. The dual power isolator adopts a power management chip, which is a relatively novel electronic circuit intelligent automatic management

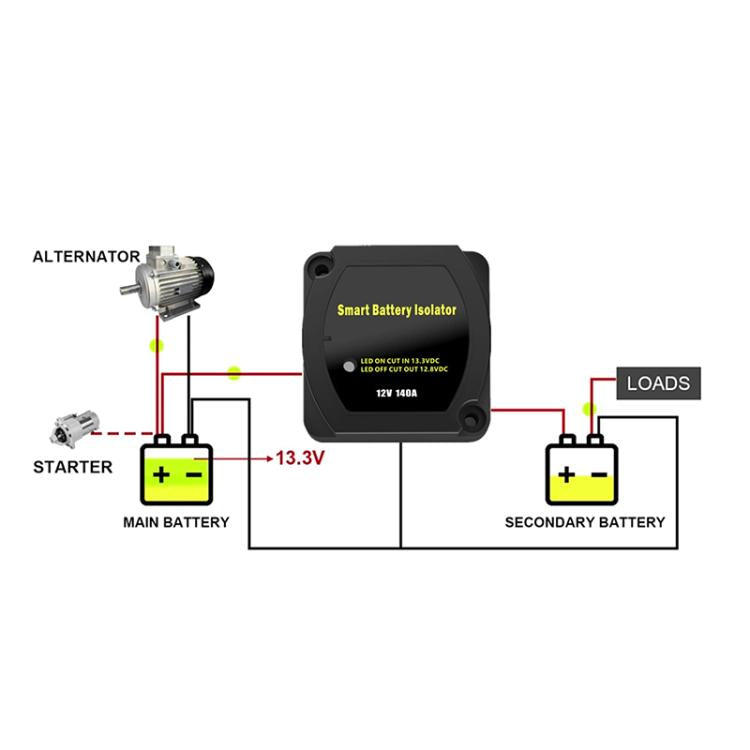

3. When the voltage of the main battery is greater than 13.3V, the main battery charges the auxiliary battery; when the voltage of the main battery is lower than 12.7V, the main battery and the auxiliary battery are disconnected

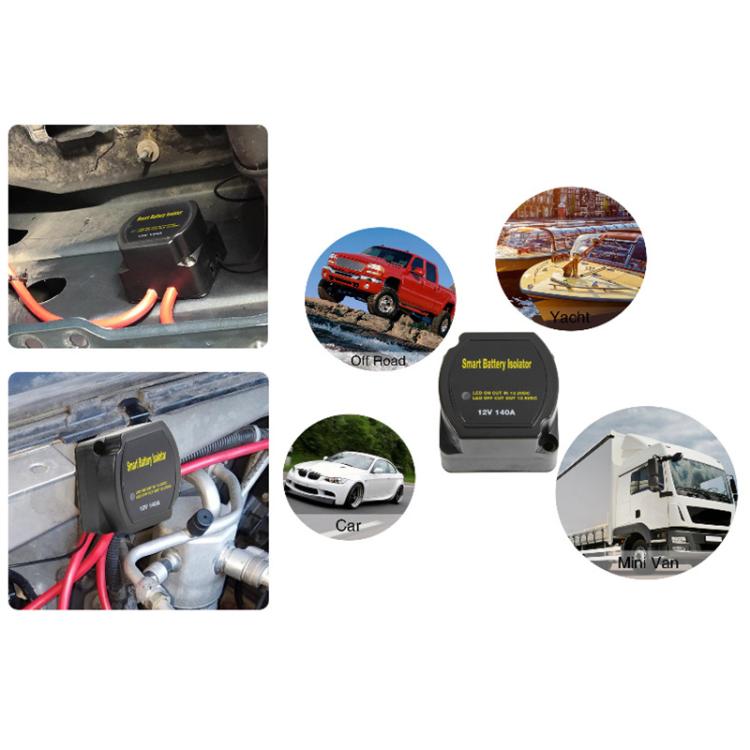

4. This product is suitable for ATV, UTV, boat, RV, boat, truck, caravan
5. Parameters:
Material: ABS+metal
Continuous current: 100-120A
Instantaneous current: 160A
Current consumption - charging: 250mA
Current Consumption - Standby: 8mA
Ambient temperature: -20 to 50 degrees Celsius
Breakaway Delay: 5-10 seconds
Recommended fuse: 80Amp

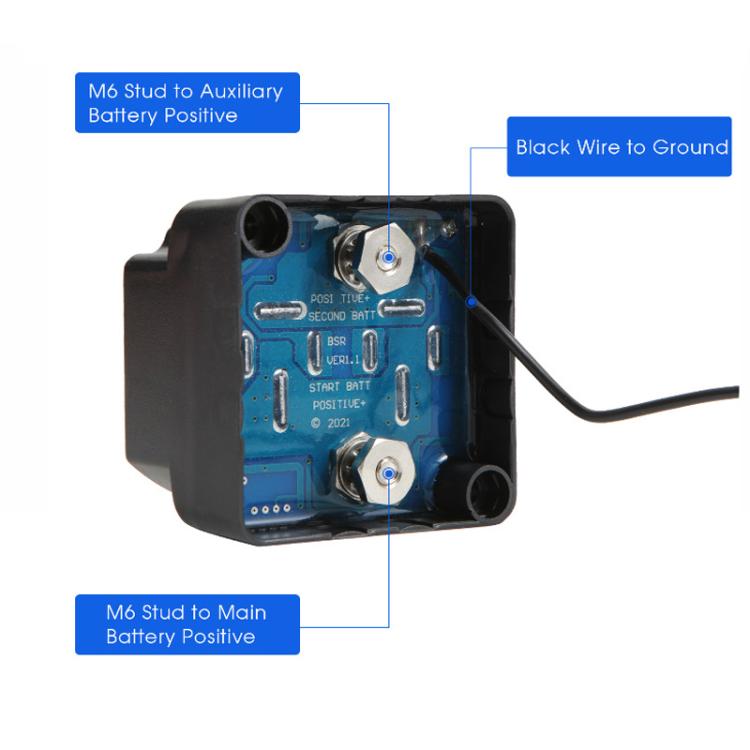

Power stud: M6 copper screw nut
Surge Protection: Built-in

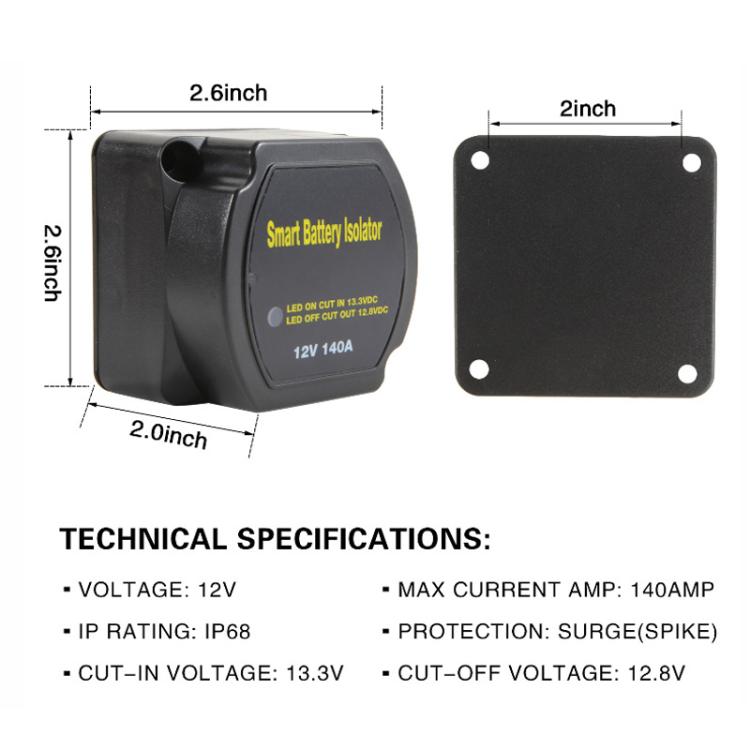

Dimensions: 68x52x68mm
2. The dual power isolator adopts a power management chip, which is a relatively novel electronic circuit intelligent automatic management
3. When the voltage of the main battery is greater than 13.3V, the main battery charges the auxiliary battery; when the voltage of the main battery is lower than 12.7V, the main battery and the auxiliary battery are disconnected
4. This product is suitable for ATV, UTV, boat, RV, boat, truck, caravan
5. Parameters:
Material: ABS+metal
Continuous current: 100-120A
Instantaneous current: 160A
Current consumption - charging: 250mA
Current Consumption - Standby: 8mA
Ambient temperature: -20 to 50 degrees Celsius
Breakaway Delay: 5-10 seconds
Recommended fuse: 80Amp
Power stud: M6 copper screw nut
Surge Protection: Built-in
Dimensions: 68x52x68mm
Specification:
| Package Weight |
|
