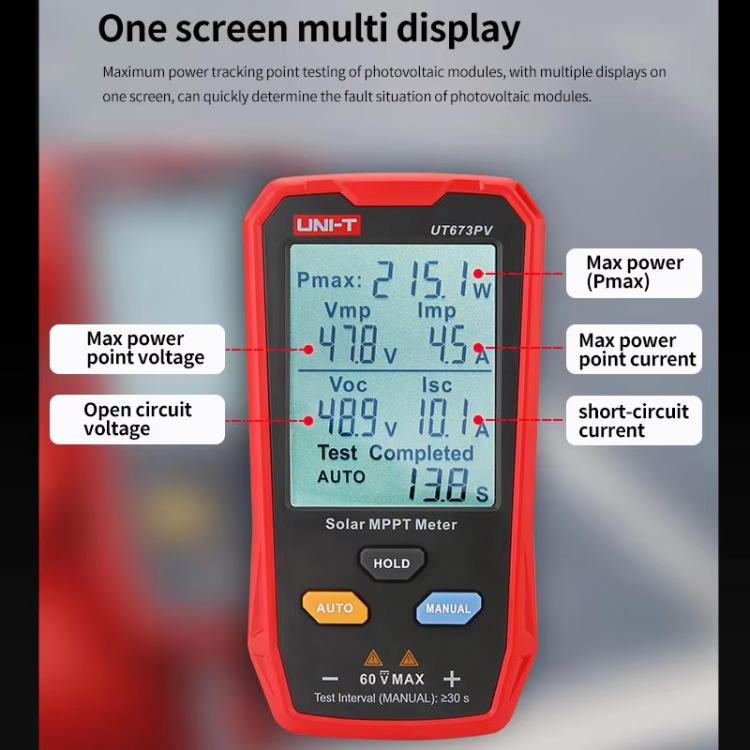

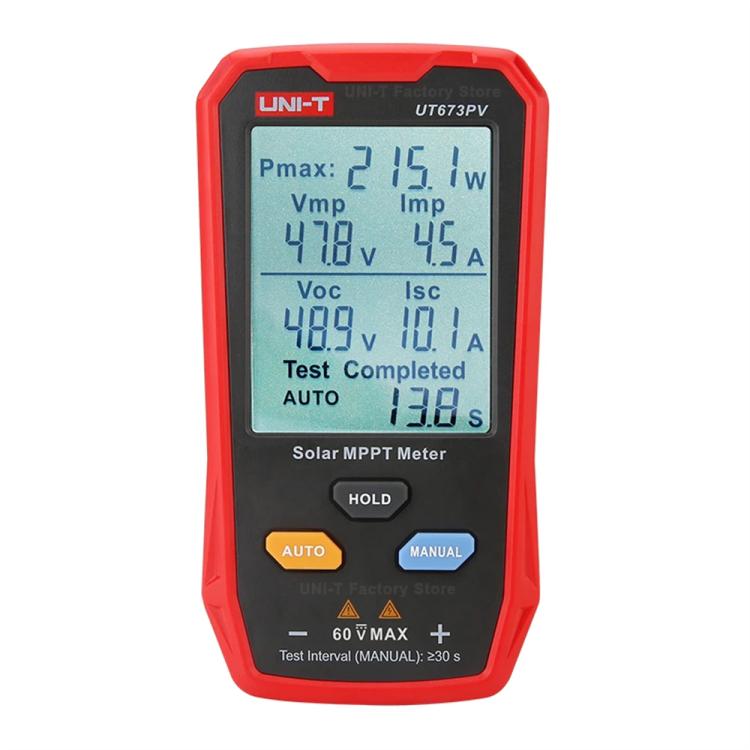

1. The UT673PV Solar MPPT meter can effectively identify any abnormalities in solar panels by testing their maximum power, peak power voltage, peak power current, open-circuit voltage, and short-circuit current.
2. Equipped with a large screen and automatic measurement function, this device can display all measurement results simultaneously. Its portable design facilitates easy carrying, significantly improving operational efficiency for PV manufacturers, installers, and end-users.
3. Open-Circuit Voltage Measurement: 12-60V +/- (1.5% + 5)
4. Power Measurement: 5-800W +/- (1.5% + 5)
5. Load Current: 0-35A +/- (1.5% + 5)
6. Power Supply: Does not require batteries.
7. Unit Weight: 155g
8. Unit Dimensions: 142 x 76 x 22mm
Specification:
| Package Weight |
|
