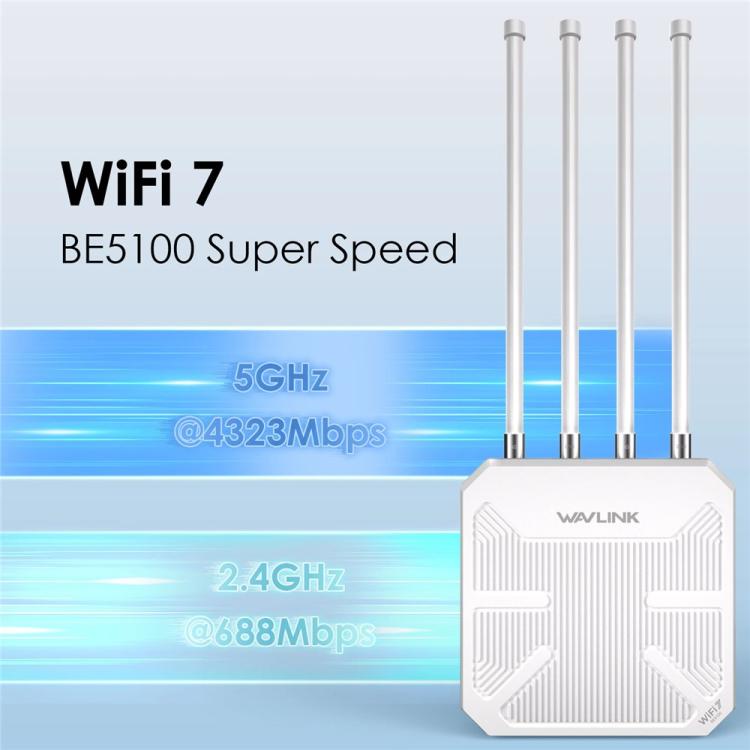

1.Next-Generation WiFi 7 Performance：Equipped with cutting-edge WiFi 7 dual-band technology, delivering ultra-high wireless speeds up to 5100Mbps (5GHz: 4323Mbps, 2.4GHz: 688Mbps) for seamless connectivity and superior network performance.
2.Weather-Resistant Design：IP67 waterproof and dustproof rating with 15KV ESD protection and 4KV lightning protection, specifically engineered for extreme outdoor environments and harsh weather conditions.

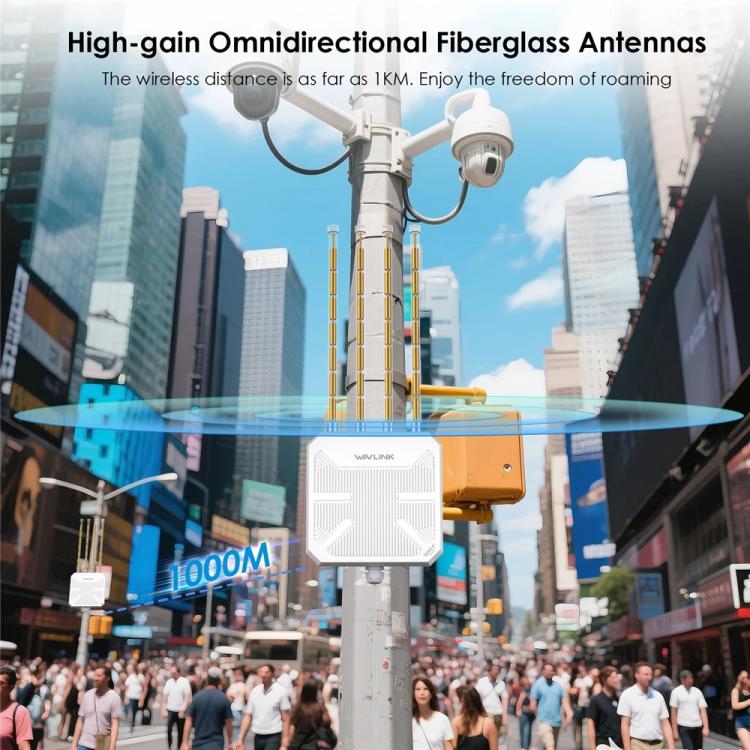

3.High-Gain Fiberglass Antennas：Four 8dBi omnidirectional antennas with durable fiberglass construction expand signal coverage range, withstand severe conditions, and provide exceptional WiFi performance with extended service life.
4.Advanced WPA3-SAE Security：WPA3-SAE encryption significantly reduces risks of network eavesdropping, man-in-the-middle attacks, and data theft, ensuring robust network security for outdoor deployments.

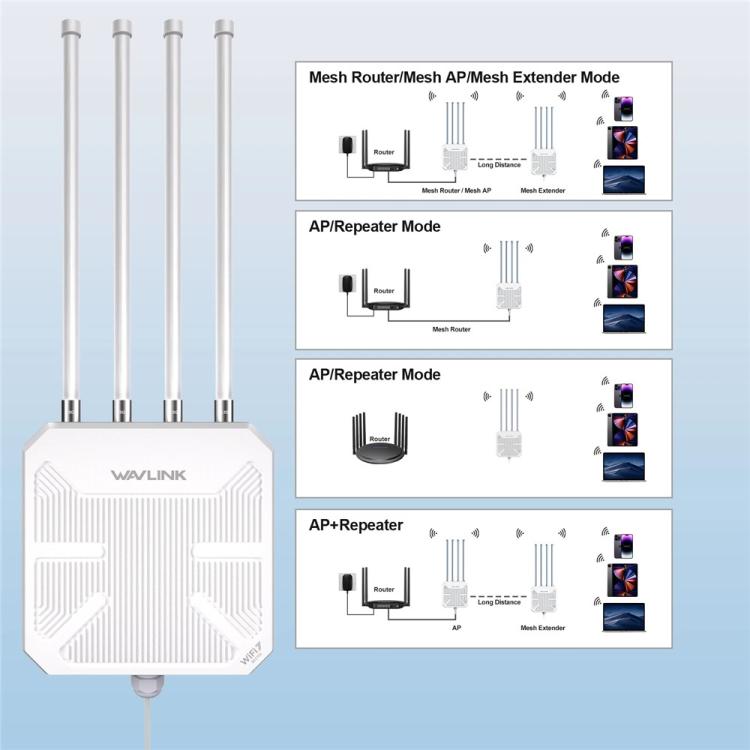

5.Versatile Operation Modes：Supports multiple deployment configurations including Mesh AP, AP, Repeater, Mesh Router, and Mesh Extender modes, providing flexible networking solutions for various outdoor scenarios.

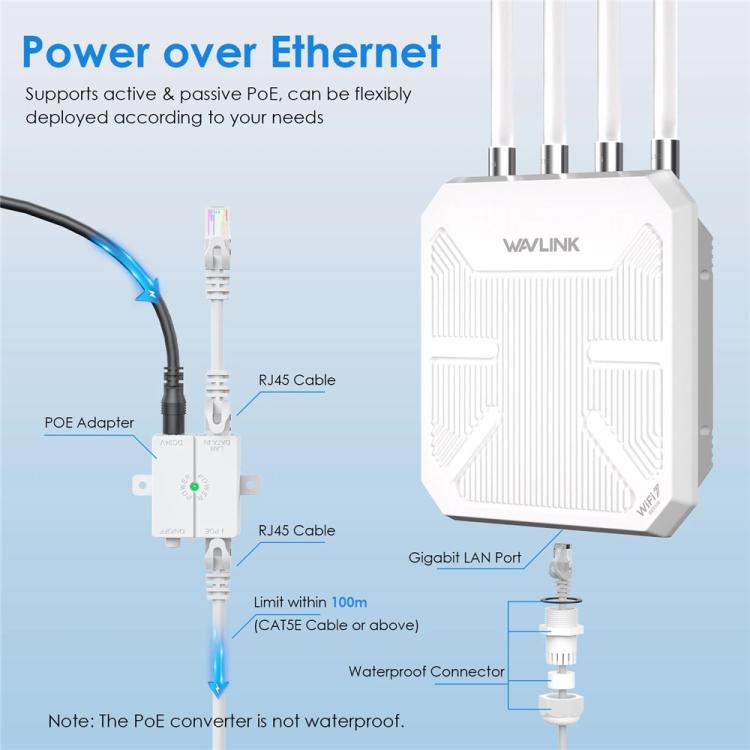

6.Dual PoE Support：Compatible with both active and passive PoE power options, allowing flexible installation with appropriate PoE converters based on your infrastructure requirements.
7.Extended Range Coverage：Outdoor transmission distance up to 1000 meters with optimized antenna design for long-range wireless connectivity and reliable performance.
Specifications:
1.Wireless Standard: IEEE 802.11be/ax/ac/a/n/g/b
2.Frequency Bands: Dual-band 2.4GHz + 5GHz
3.Wireless Speed: Up to 5100Mbps (5GHz: 4323Mbps, 2.4GHz: 688Mbps)
4.Ethernet Interface: 1 x 2.5G WAN/LAN port
5.Antennas: 4 x 8dBi + 1 x 5dBi high-gain omnidirectional antennas
6.Transmission Power: 2.4G: Max 27dBm, 5G: Max 27dBm
7.Receive Sensitivity: -95 dBm
8.Security: WPA3-SAE/WPA2-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK-MIX
9.Power Supply: 100-240V/50-60Hz; DC 54V (Passive PoE); DC 48V (Active PoE)
10.Protection Rating: IP67 waterproof/dustproof, 15KV ESD, 4KV lightning protection

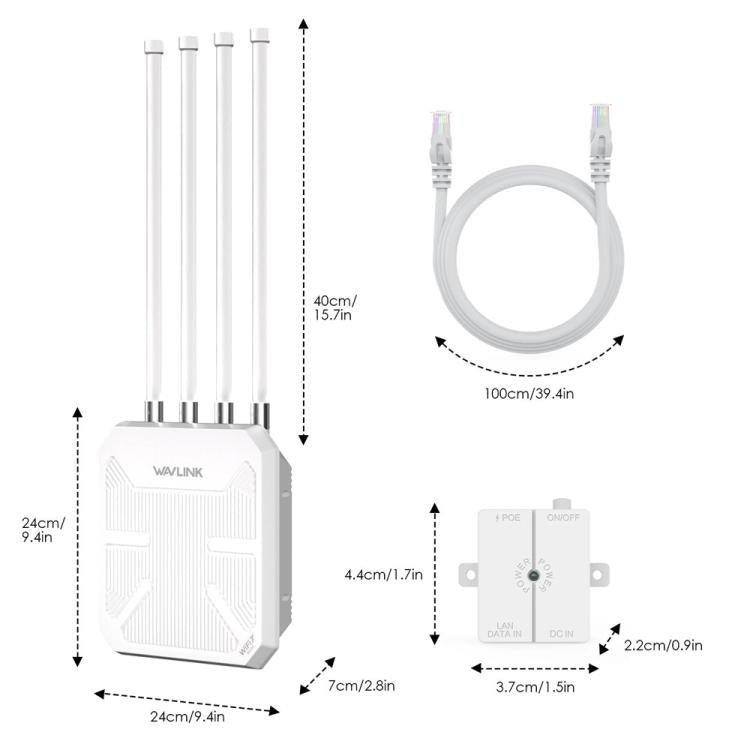

11.Dimensions: 24cm x 24cm x 7cm (9.4 in x 9.4 in x 2.8 in)
12.Total Height (with antennas): 40cm (15.7 in)
13.Operating Distance: Up to 1000 meters outdoor (conditions dependent)
14.PoE Support: 802.3 AT/AF PoE and Passive PoE
15.Buttons: 1 x PAIR & Reset
16.LED Indicators: 1 x SYS
Notes:
1.The PoE converter is not waterproof; please install indoors.
2.Please ensure your Ethernet cable is CAT5E or higher certified and shorter than 100 meters/328 feet.
3.Please install the product 2-3 meters above the ground for better performance.
4.In mesh mode, the WN573HBE2 supports interfacing with WN586X3, WN572HP3 (*requires latest firmware), and WN573HBE2.
2.Weather-Resistant Design：IP67 waterproof and dustproof rating with 15KV ESD protection and 4KV lightning protection, specifically engineered for extreme outdoor environments and harsh weather conditions.
3.High-Gain Fiberglass Antennas：Four 8dBi omnidirectional antennas with durable fiberglass construction expand signal coverage range, withstand severe conditions, and provide exceptional WiFi performance with extended service life.
4.Advanced WPA3-SAE Security：WPA3-SAE encryption significantly reduces risks of network eavesdropping, man-in-the-middle attacks, and data theft, ensuring robust network security for outdoor deployments.
5.Versatile Operation Modes：Supports multiple deployment configurations including Mesh AP, AP, Repeater, Mesh Router, and Mesh Extender modes, providing flexible networking solutions for various outdoor scenarios.
6.Dual PoE Support：Compatible with both active and passive PoE power options, allowing flexible installation with appropriate PoE converters based on your infrastructure requirements.
7.Extended Range Coverage：Outdoor transmission distance up to 1000 meters with optimized antenna design for long-range wireless connectivity and reliable performance.
Specifications:
1.Wireless Standard: IEEE 802.11be/ax/ac/a/n/g/b
2.Frequency Bands: Dual-band 2.4GHz + 5GHz
3.Wireless Speed: Up to 5100Mbps (5GHz: 4323Mbps, 2.4GHz: 688Mbps)
4.Ethernet Interface: 1 x 2.5G WAN/LAN port
5.Antennas: 4 x 8dBi + 1 x 5dBi high-gain omnidirectional antennas
6.Transmission Power: 2.4G: Max 27dBm, 5G: Max 27dBm
7.Receive Sensitivity: -95 dBm
8.Security: WPA3-SAE/WPA2-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK-MIX
9.Power Supply: 100-240V/50-60Hz; DC 54V (Passive PoE); DC 48V (Active PoE)
10.Protection Rating: IP67 waterproof/dustproof, 15KV ESD, 4KV lightning protection
11.Dimensions: 24cm x 24cm x 7cm (9.4 in x 9.4 in x 2.8 in)
12.Total Height (with antennas): 40cm (15.7 in)
13.Operating Distance: Up to 1000 meters outdoor (conditions dependent)
14.PoE Support: 802.3 AT/AF PoE and Passive PoE
15.Buttons: 1 x PAIR & Reset
16.LED Indicators: 1 x SYS
Notes:
1.The PoE converter is not waterproof; please install indoors.
2.Please ensure your Ethernet cable is CAT5E or higher certified and shorter than 100 meters/328 feet.
3.Please install the product 2-3 meters above the ground for better performance.
4.In mesh mode, the WN573HBE2 supports interfacing with WN586X3, WN572HP3 (*requires latest firmware), and WN573HBE2.
