1. Equipped with the Impinj E710 chip, it boasts a peak read rate exceeding 700 tags per second and a long read distance.
2. Built-in high-gain 9dBi antenna provides wide coverage, sensitive card reading, and stable performance.

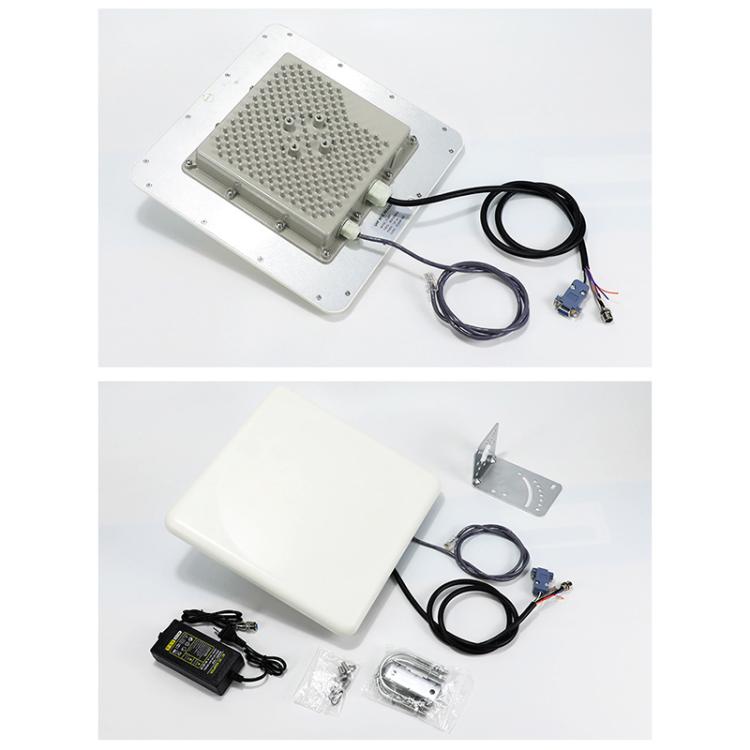

3. Multiple communication interfaces and a separate cable design for ease of use.

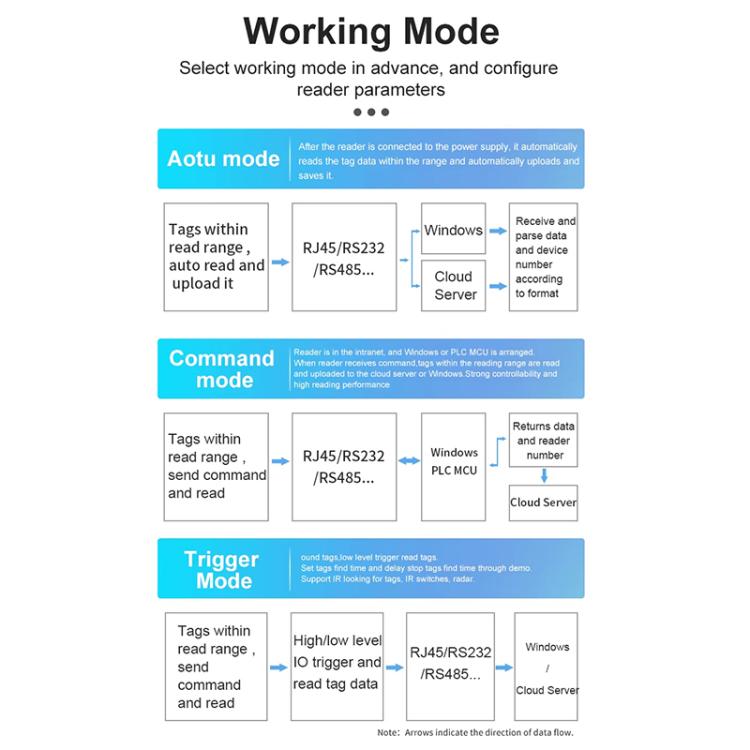

4. Flexible operating mode selection: Active, Passive, and Trigger.

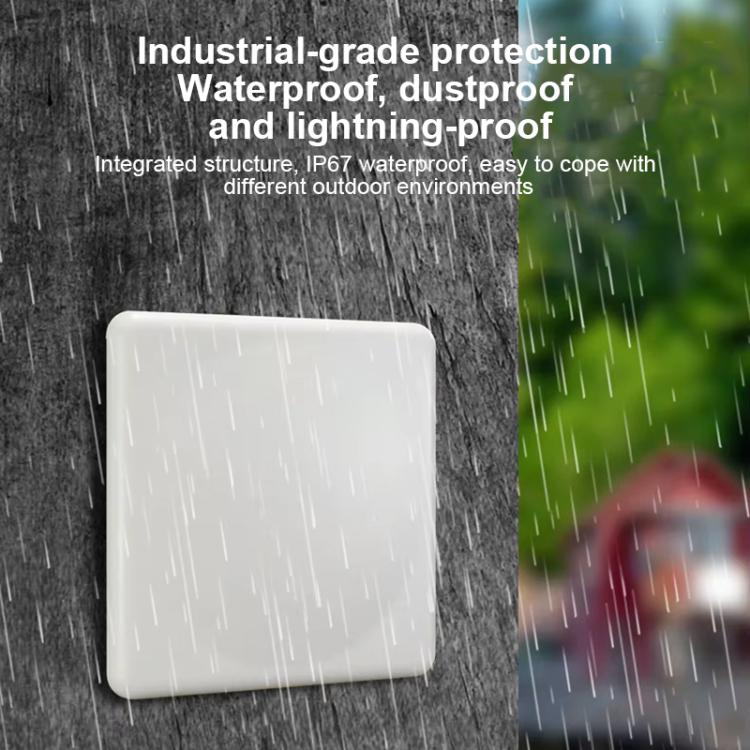

5. Integrated structure with IP67-rated waterproof, dustproof, and lightning protection, making it easily adaptable to diverse outdoor environments.
6. Wide range of applications: Suitable for warehousing and logistics, production line tracking, intelligent asset management, and access control systems.
Product Specifications:
1. Model: FI-807

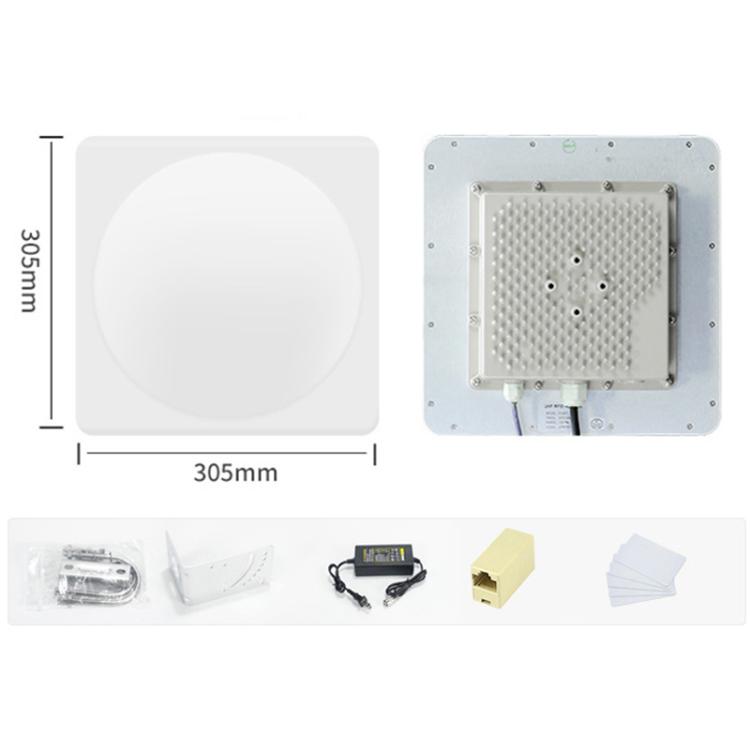

2. Dimensions: 305mm x 305mm x 75mm
3. Operating Frequency: Standard: ISM 902-928MHz and ISM 865-868MHz, optional.
4. Operating Protocols: ISO18000-6C (EPC GEN2), ISO18000-6B

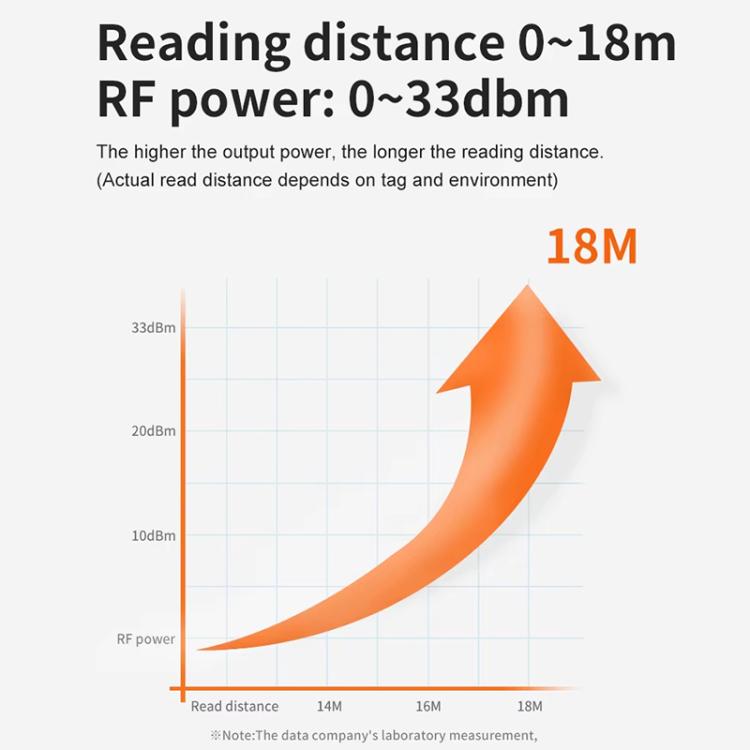

5. Reading distance: 0-18m
6. Output power: 0-33dBm, software-adjustable
7. Operating mode: Wide-spectrum frequency hopping (FHSS)

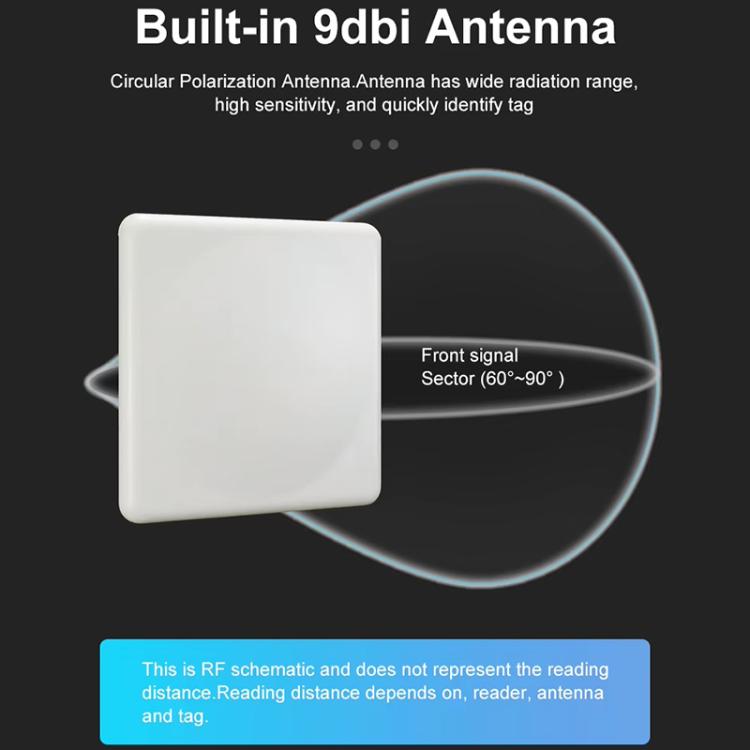

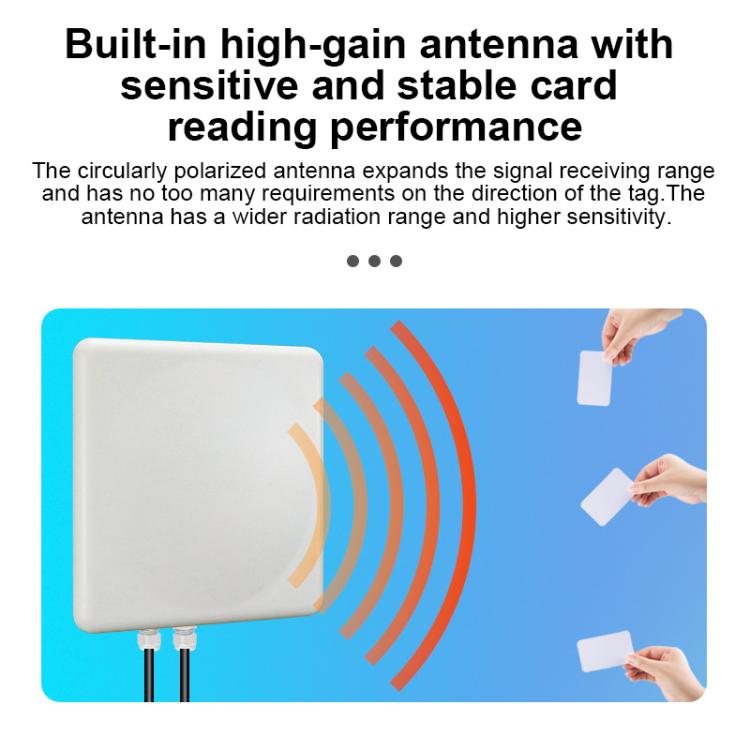

8. Antenna gain: Built-in circularly polarized antenna, 9dBi gain

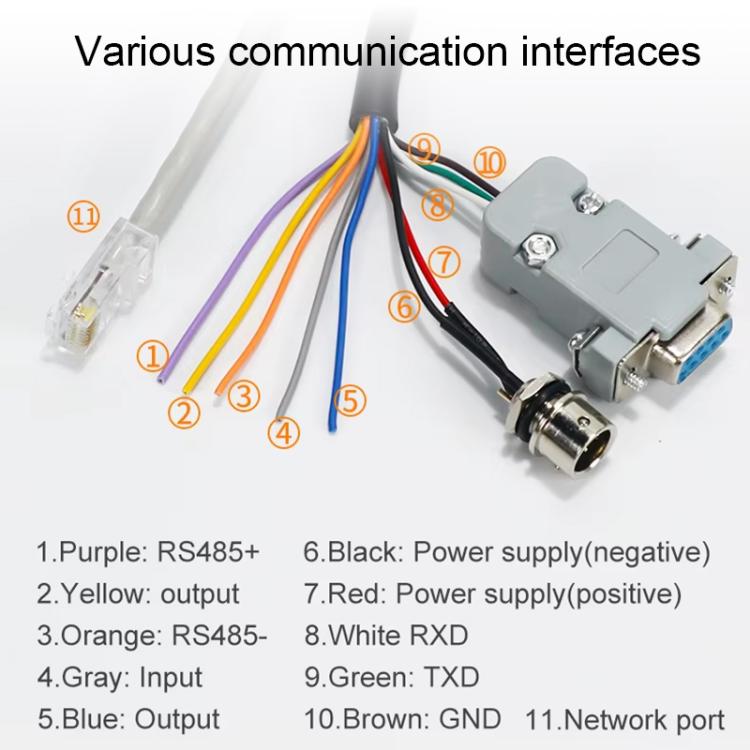

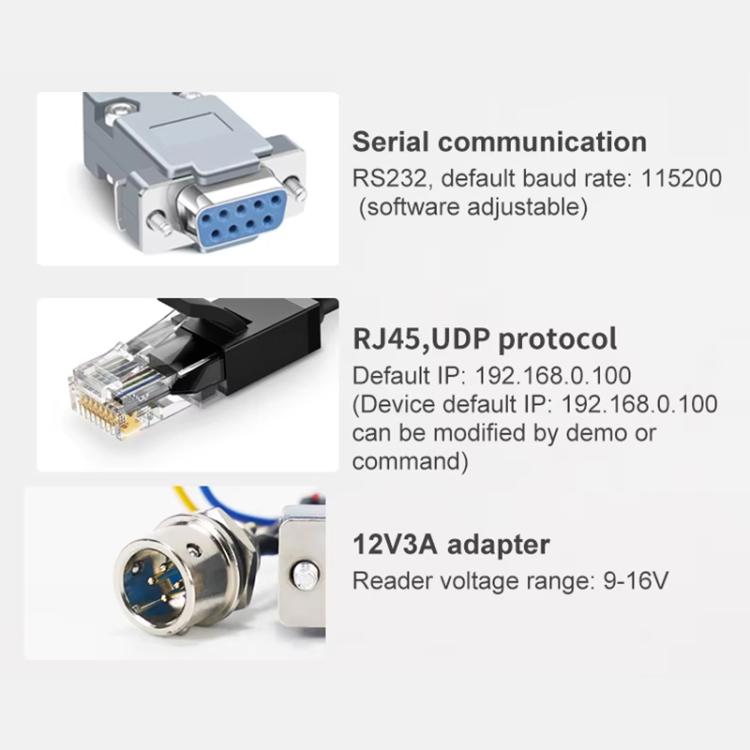

9. Communication interfaces: RS232, RS485, RJ45, Wiegand 26/34, one trigger output, one relay output (optional WiFi, 4G, and other communication options, PoE power supply)
10. Operating indicator: Buzzer
11. Power supply: DC+12V (with power adapter), voltage range: 9-16V
12. Operating temperature: -20 degrees Celsius to +80 degrees Celsius
2. Built-in high-gain 9dBi antenna provides wide coverage, sensitive card reading, and stable performance.
3. Multiple communication interfaces and a separate cable design for ease of use.
4. Flexible operating mode selection: Active, Passive, and Trigger.
5. Integrated structure with IP67-rated waterproof, dustproof, and lightning protection, making it easily adaptable to diverse outdoor environments.
6. Wide range of applications: Suitable for warehousing and logistics, production line tracking, intelligent asset management, and access control systems.
Product Specifications:
1. Model: FI-807
2. Dimensions: 305mm x 305mm x 75mm
3. Operating Frequency: Standard: ISM 902-928MHz and ISM 865-868MHz, optional.
4. Operating Protocols: ISO18000-6C (EPC GEN2), ISO18000-6B
5. Reading distance: 0-18m
6. Output power: 0-33dBm, software-adjustable
7. Operating mode: Wide-spectrum frequency hopping (FHSS)
8. Antenna gain: Built-in circularly polarized antenna, 9dBi gain
9. Communication interfaces: RS232, RS485, RJ45, Wiegand 26/34, one trigger output, one relay output (optional WiFi, 4G, and other communication options, PoE power supply)
10. Operating indicator: Buzzer
11. Power supply: DC+12V (with power adapter), voltage range: 9-16V
12. Operating temperature: -20 degrees Celsius to +80 degrees Celsius
Specification:
