19pcs / Set Air Tank Repair Kit Pressure Gauge

1. The 200 PSI pressure gauge features an aluminum alloy frame, a composite PVC and brass hose, and a brass cast safety valve. The structure is robust and stable, with strong fatigue resistance, maintaining its stable form and appearance even after long-term, high-frequency use.

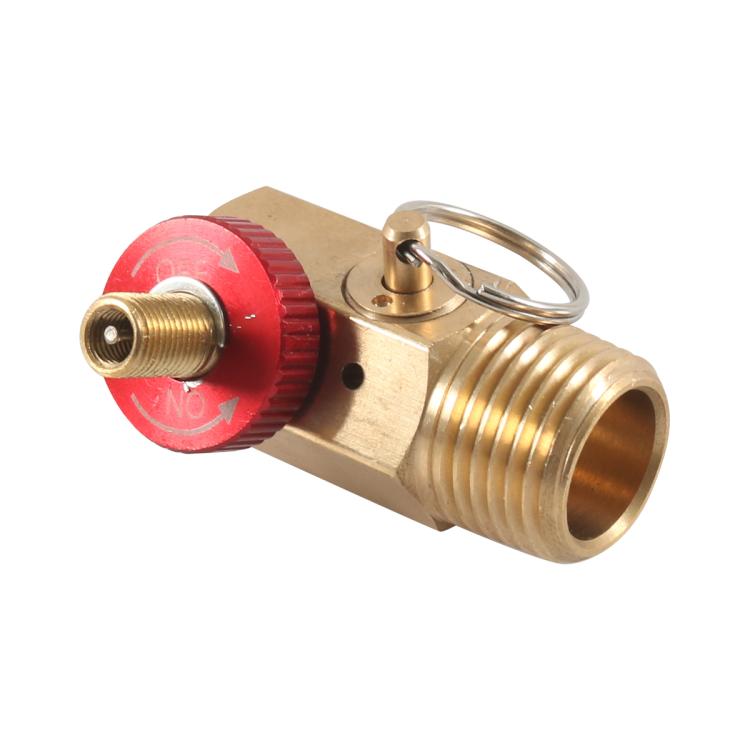

2. The safety valve is equipped with an aluminum knob for convenient control of air hose opening and closing. When closed, it effectively maintains airtightness within the tank, reducing air leakage. Compared to plastic materials, the aluminum knob offers superior structural stability and durability.
3. The pressure gauge features a visual design with a 2-inch dual-scale dial (0-200 PSI / 0-1.4 MPa), clearly indicating the tank pressure and liquid level. A 1/8-inch standard interface is integrated at the bottom, compatible with mainstream air systems.
4. Material: Brass valve + PVC braided hose + Aluminum alloy pressure gauge
5. Pressure Range: 0-200 PSI, 0-1.4 MPa
5. Knob Material: Aluminum

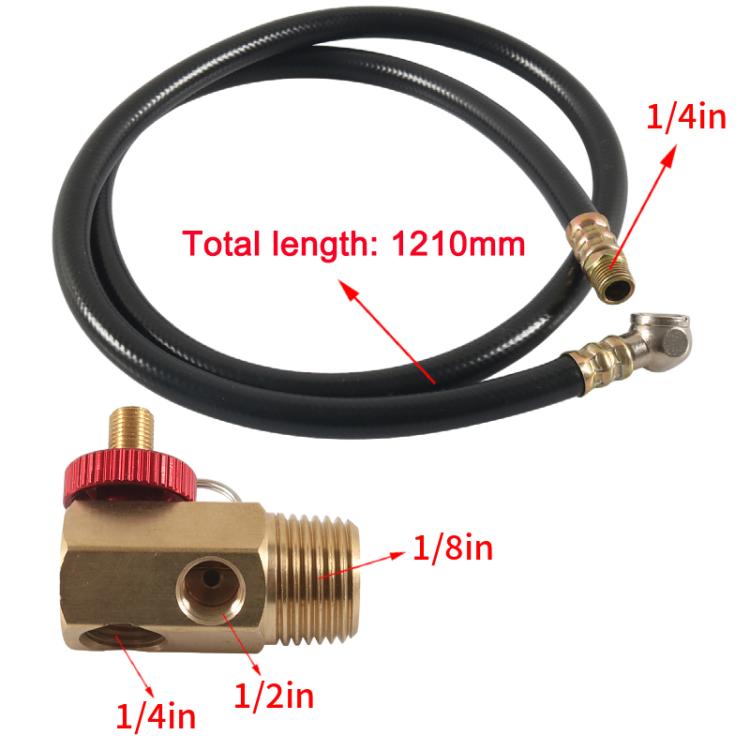

6. Hose Specifications: 1/4 inch FNPT hose outlet, 1/4 inch MNPT thread
7. Valve Port Specifications: 1/8 inch NPT instrument interface, 1/2 inch MNPT tank interface, 1/4 inch FNPT hose interface

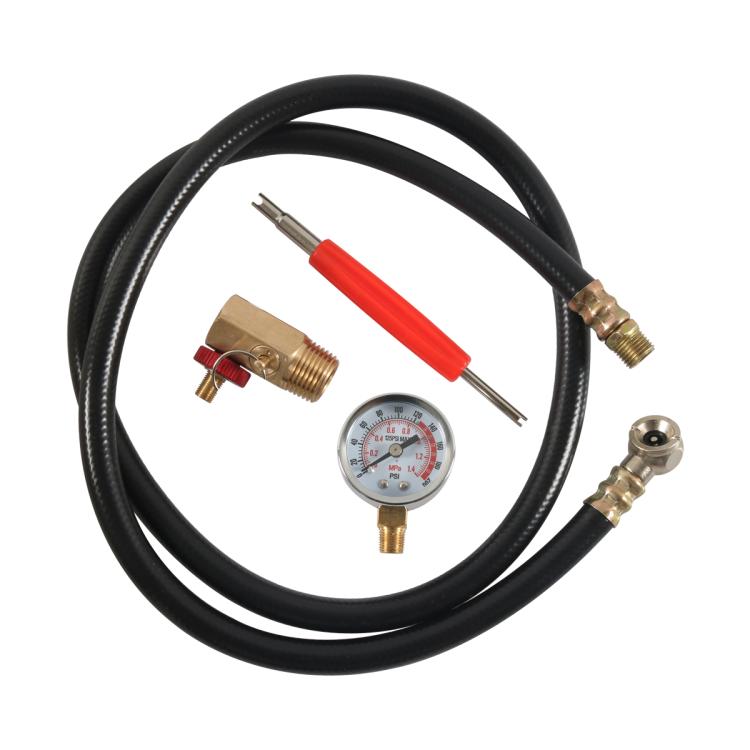

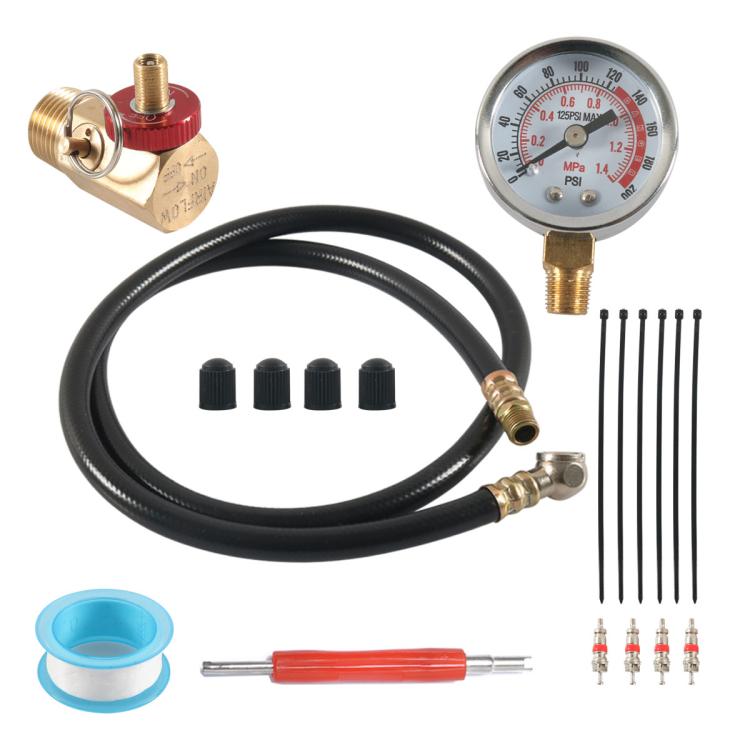

Package Contents:
1. Brass valve x 1
2. Pressure gauge x 1
3. Hose x 1

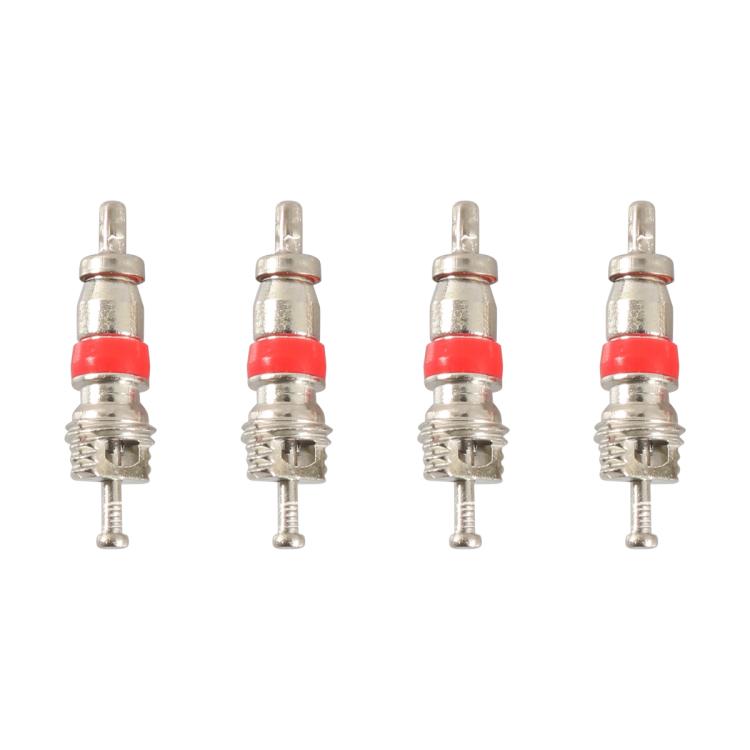

4. Valve core x 4
5. Valve cap x 4
6. Double-ended removal tool x 1
7. PTFE tape x 1
8. Cable ties x 6
