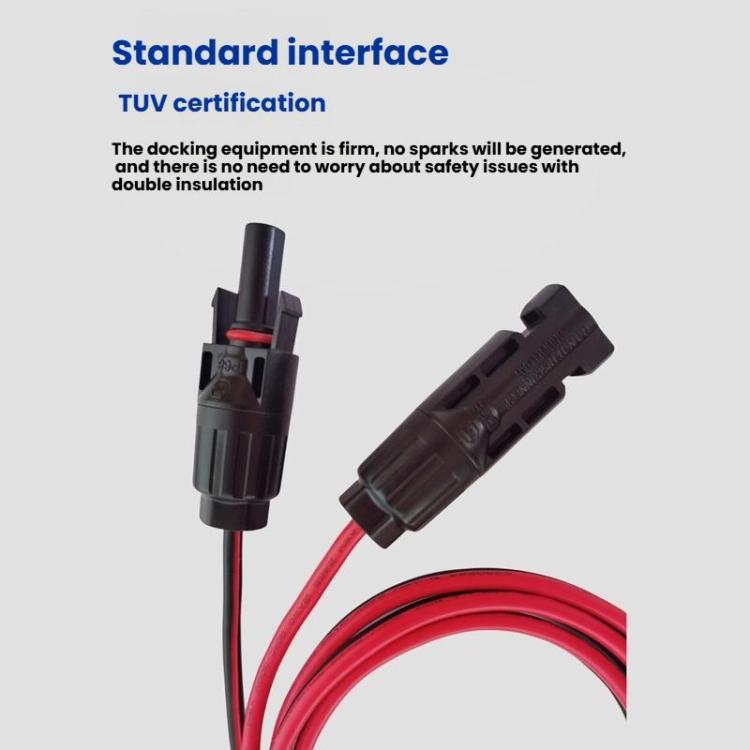

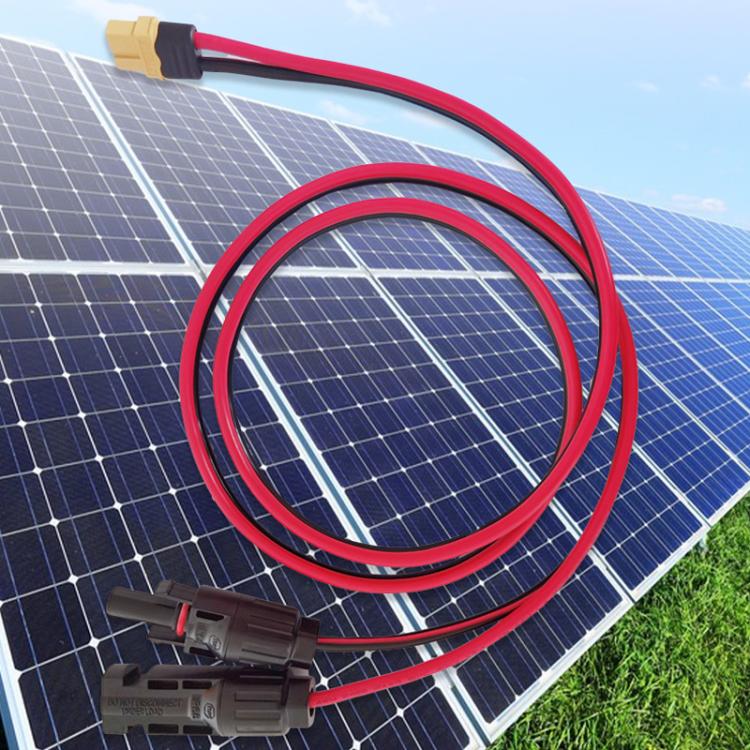

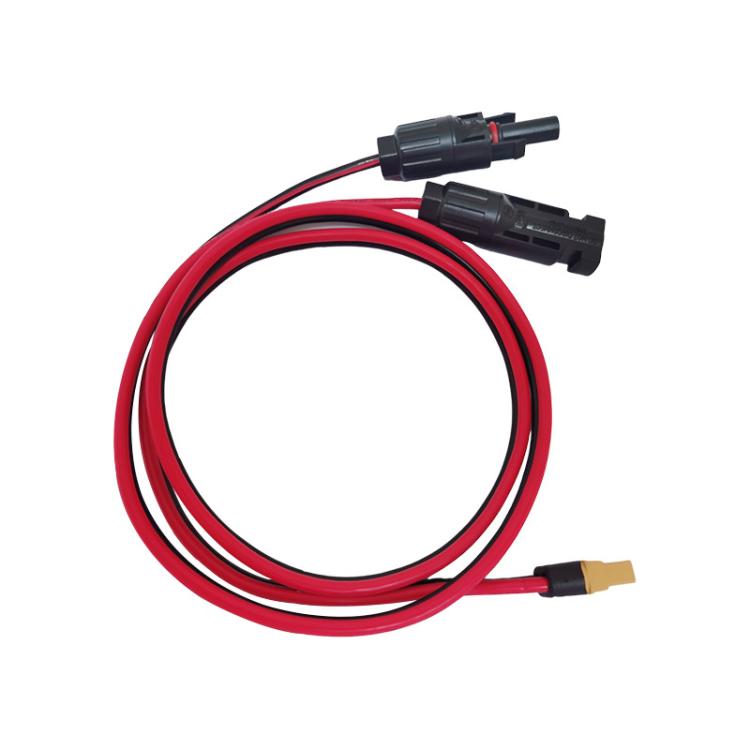

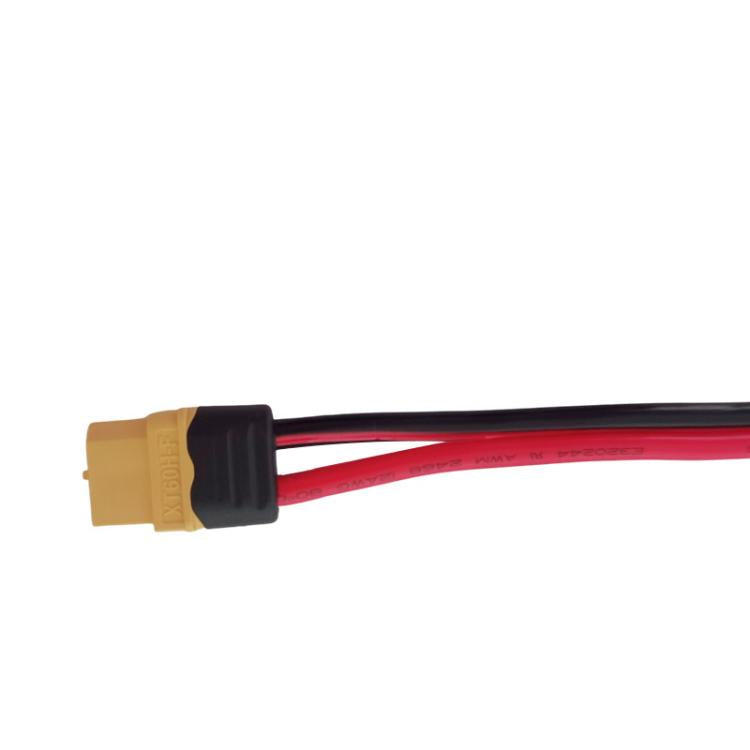

1. This 12AWG solar charging cable is designed to connect solar panels and portable power stations. It features an XT60 female connector on one end and MC4 male/female solar connectors on the other, ensuring secure energy transfer for renewable energy systems.
2. Premium Cable Specifications: Constructed with 2468 12AWG tinned copper conductors, this cable offers low resistance and high current capacity. The OD of 4.0x8.0mm ensures durability while maintaining flexibility.
3. Multiple Length Options: Available in 0.6m, 1m, 1.5m, and 3m lengths to accommodate various installation setups and spatial requirements.

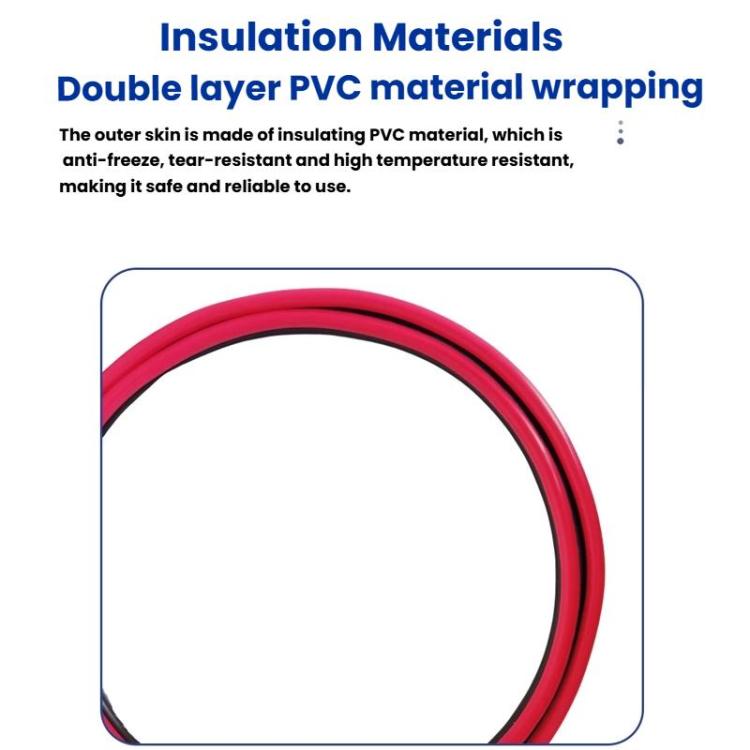

4. Safety & Durability: PVC insulation provides reliable protection against abrasion and environmental factors, with a rated operating temperature of up to 80 degrees Celsius for stable outdoor or indoor use.
5. Universal Compatibility: Compatible with most solar panels, portable power stations, and vehicle-mounted battery systems utilizing XT60 or MC4 connectors, ideal for off-grid charging solutions.
Parameters:
1. Wire model: 2468 12AWG
2. Insulation material: PVC
3. Conductor material: tinned copper
4. Wire outer diameter: OD: 4.0x8.0mm
5. Rated temperature: 80 degrees Celsius
