Features
1. Powerful Compatibility: Supports both 12V and 24V systems, applicable to cars, trucks, motorcycles, and other vehicles.

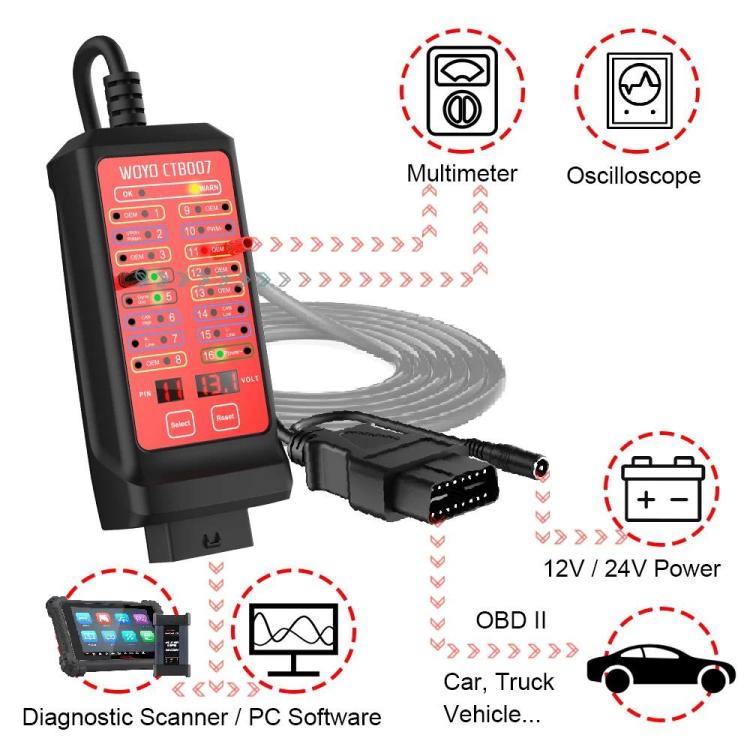

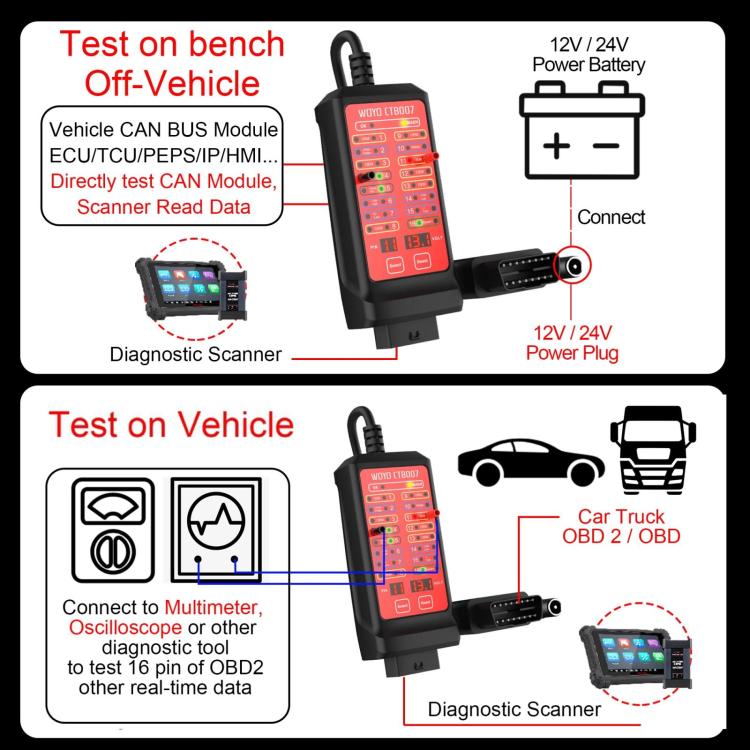

2. OBD-II 16-Pin Interface: Directly connects to diagnostic equipment, multimeters, oscilloscopes, etc., enabling real-time signal monitoring.
3. Comprehensive Signal Testing: Easily detect communication failures, short circuits, reversed polarity, or ECU programming issues.

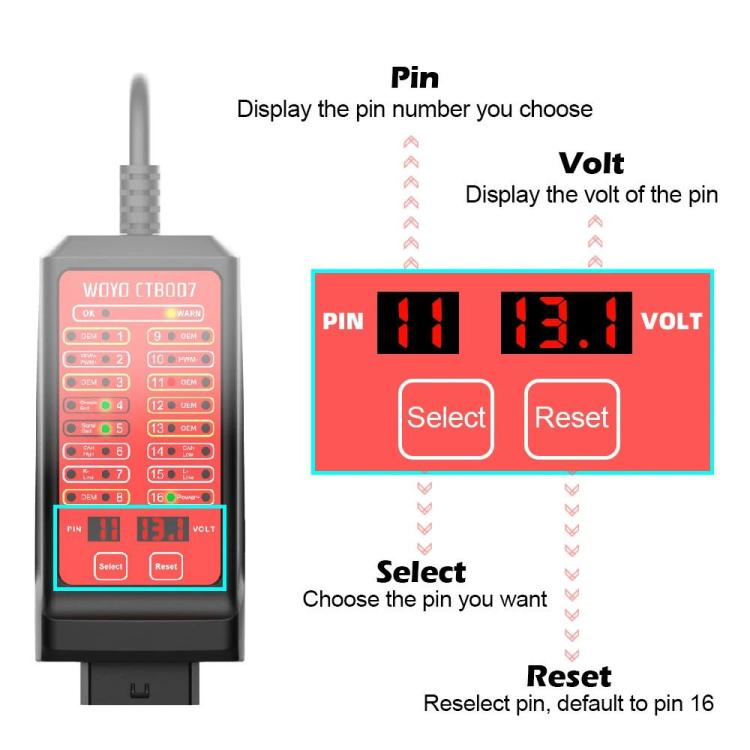

4. Voltage Monitoring: Displays real-time voltage on each OBD-II pin; alerts for abnormal voltage conditions.
5. Built-in Protection: Equipped with overload protection (PTC fuses) and reverse polarity indicators for Pins 4 & 5.
6. Protocol Support: Compatible with J1850 PWM/VPW, ISO9141-2, ISO14230-4, CAN (J-2284) protocols.

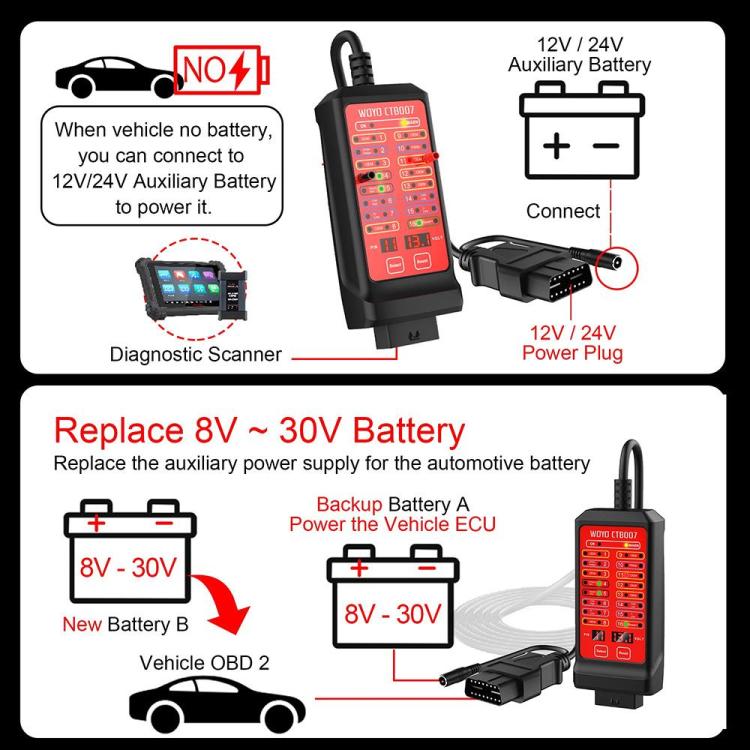

7. Power Supply Function: External 12V/24V input option to maintain ECU memory during battery replacement.

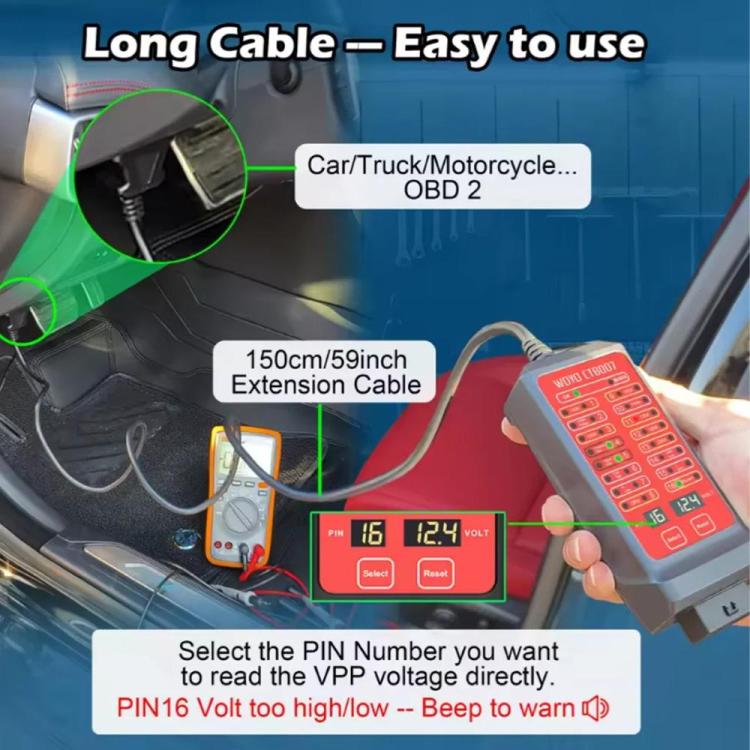

8. Cable Options: Available with 27 in (70cm) durable extension cables for flexible operation.
Specifications
1. Input Voltage: 9V-32V DC
2. Max Output Current: 2A
3. Voltage Accuracy: +/-0.1V
4. Operating Temperature: 0 dedgree C - 50dedgree C
5. Humidity Range: Less than 70% RH
6. Connector Type: 16 Pin x 2mm test leads with adapters
7. Material: Plastic
8. Weight / Size: 0.35kg / 18.5 x 13 x 5cm
1. Powerful Compatibility: Supports both 12V and 24V systems, applicable to cars, trucks, motorcycles, and other vehicles.
2. OBD-II 16-Pin Interface: Directly connects to diagnostic equipment, multimeters, oscilloscopes, etc., enabling real-time signal monitoring.
3. Comprehensive Signal Testing: Easily detect communication failures, short circuits, reversed polarity, or ECU programming issues.
4. Voltage Monitoring: Displays real-time voltage on each OBD-II pin; alerts for abnormal voltage conditions.
5. Built-in Protection: Equipped with overload protection (PTC fuses) and reverse polarity indicators for Pins 4 & 5.
6. Protocol Support: Compatible with J1850 PWM/VPW, ISO9141-2, ISO14230-4, CAN (J-2284) protocols.
7. Power Supply Function: External 12V/24V input option to maintain ECU memory during battery replacement.
8. Cable Options: Available with 27 in (70cm) durable extension cables for flexible operation.
Specifications
1. Input Voltage: 9V-32V DC
2. Max Output Current: 2A
3. Voltage Accuracy: +/-0.1V
4. Operating Temperature: 0 dedgree C - 50dedgree C
5. Humidity Range: Less than 70% RH
6. Connector Type: 16 Pin x 2mm test leads with adapters
7. Material: Plastic
8. Weight / Size: 0.35kg / 18.5 x 13 x 5cm
