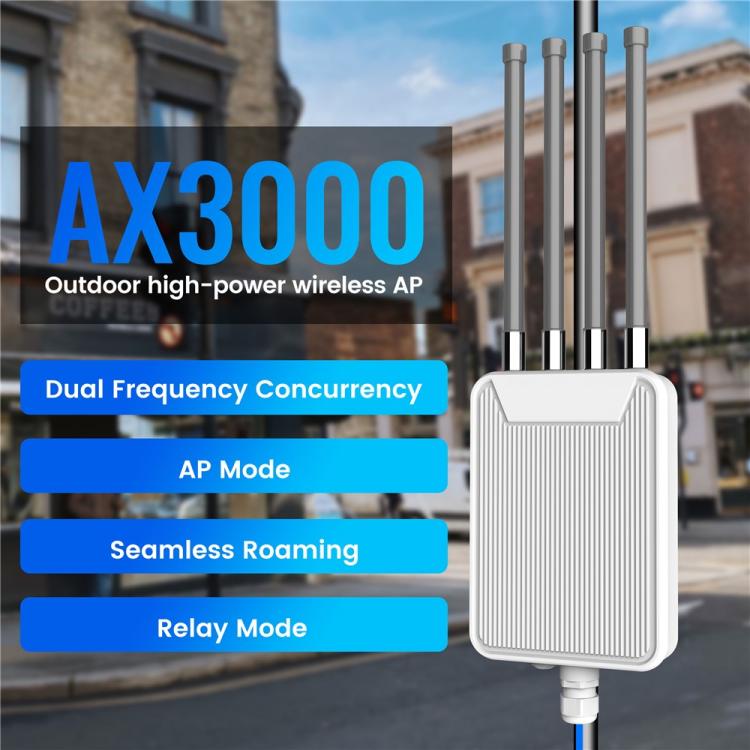

1.High-Performance Dual-Chip Solution：Features MT7981B + MT7976DAN dual-core processors with 256MB DDR3 memory, delivering enhanced wireless speed and network capacity for superior data processing efficiency.

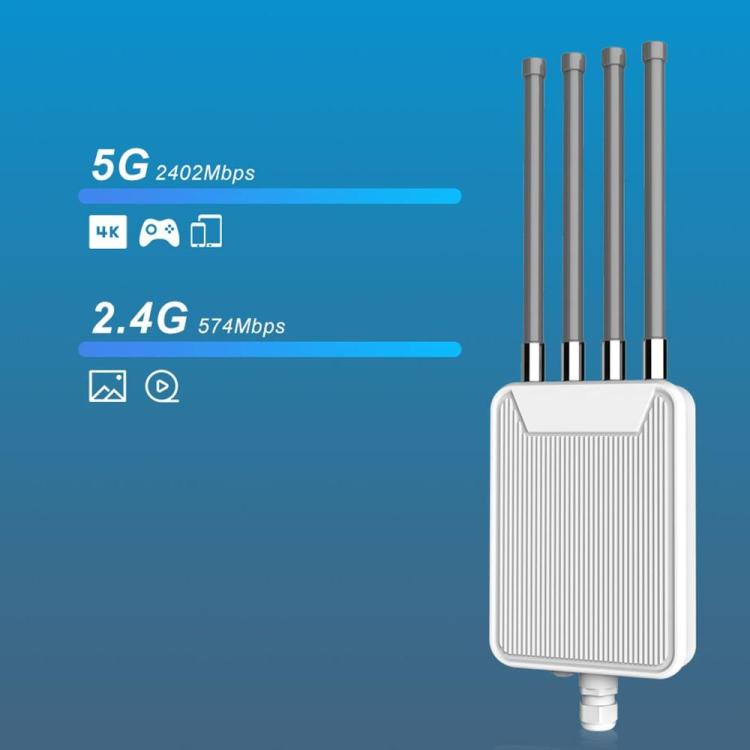

2.AX3000 WiFi 6 Standard：Supports up to 3000Mbps wireless transmission rate with 574Mbps on 2.4GHz and 2402Mbps on 5.8GHz, providing faster and more stable wireless connectivity.
3.Dual-Band Concurrent Operation：Simultaneously operates on 2.4GHz and 5.8GHz frequencies with strong anti-interference capability, ensuring optimal performance in crowded wireless environments.

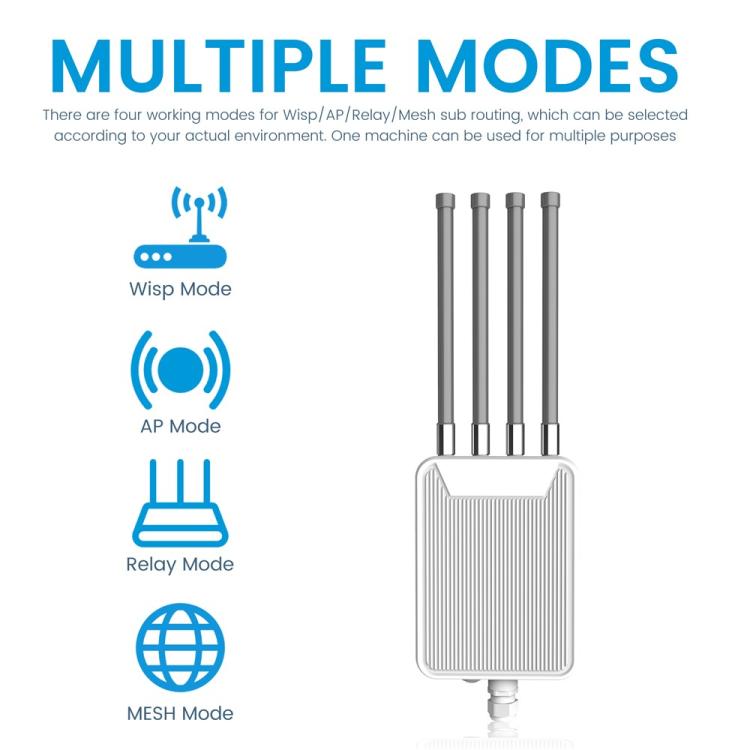

4.Multiple Operating Modes：Supports Router, AP, Relay, WISP, and Mesh modes to adapt to various network deployment scenarios and requirements.
5.Industrial-Grade Outdoor Design：IP67 waterproof rating with built-in 15kV surge protection and operating temperature range from -40 to +55 degree centigrade for reliable outdoor performance.
6.High-Gain Antenna System：Equipped with 4 external 7dBi omnidirectional fiberglass antennas (2x2.4GHz + 2x5.8GHz) providing extended coverage up to 500 meters radius.
7.Seamless Roaming Support：Enables smooth handover between access points without connection drops, ideal for large area coverage and mobile device connectivity.
8.PoE Power Supply：48V PoE powered with less than 15W power consumption, simplifying installation with single cable for both data and power transmission.
Specifications:
1.Chipset: MT7981B + MT7976DAN
2.Memory: 256MB DDR3
3.Flash Storage: 16MB
4.Wireless Standards: 2.4G: IEEE 802.11 b/g/n/ax; 5G: IEEE 802.11 a/n/ac/ax
5.Operating Frequency: 2.4GHz: 2.412-2.472GHz; 5.8GHz: 5.180-5.825GHz
6.Transmission Power: 2.4G: 20dBm; 5.8G: 20dBm
7.Network Interface: 1x 10/100/1000Mbps WAN/LAN Port
8.Maximum Wireless Clients: 200+
9.Antenna: 2x 7dBi 2.4G + 2x 7dBi 5.8G External Fiberglass Antennas
10.Power Supply: 48V PoE
11.Power Consumption: Less than 15W

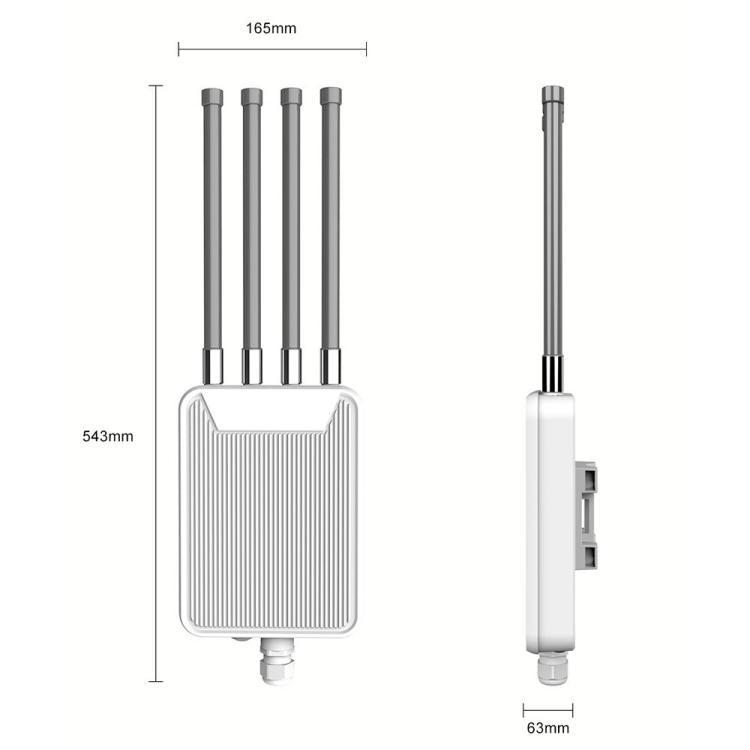

12.Dimensions: 165 x 63 x 543mm (L x W x H, including antennas)
13.Operating Temperature: -40 to +55 degree centigrade
14.Waterproof Rating: IP67
15.Coverage Range: Up to 500m
2.AX3000 WiFi 6 Standard：Supports up to 3000Mbps wireless transmission rate with 574Mbps on 2.4GHz and 2402Mbps on 5.8GHz, providing faster and more stable wireless connectivity.
3.Dual-Band Concurrent Operation：Simultaneously operates on 2.4GHz and 5.8GHz frequencies with strong anti-interference capability, ensuring optimal performance in crowded wireless environments.
4.Multiple Operating Modes：Supports Router, AP, Relay, WISP, and Mesh modes to adapt to various network deployment scenarios and requirements.
5.Industrial-Grade Outdoor Design：IP67 waterproof rating with built-in 15kV surge protection and operating temperature range from -40 to +55 degree centigrade for reliable outdoor performance.
6.High-Gain Antenna System：Equipped with 4 external 7dBi omnidirectional fiberglass antennas (2x2.4GHz + 2x5.8GHz) providing extended coverage up to 500 meters radius.
7.Seamless Roaming Support：Enables smooth handover between access points without connection drops, ideal for large area coverage and mobile device connectivity.
8.PoE Power Supply：48V PoE powered with less than 15W power consumption, simplifying installation with single cable for both data and power transmission.
Specifications:
1.Chipset: MT7981B + MT7976DAN
2.Memory: 256MB DDR3
3.Flash Storage: 16MB
4.Wireless Standards: 2.4G: IEEE 802.11 b/g/n/ax; 5G: IEEE 802.11 a/n/ac/ax
5.Operating Frequency: 2.4GHz: 2.412-2.472GHz; 5.8GHz: 5.180-5.825GHz
6.Transmission Power: 2.4G: 20dBm; 5.8G: 20dBm
7.Network Interface: 1x 10/100/1000Mbps WAN/LAN Port
8.Maximum Wireless Clients: 200+
9.Antenna: 2x 7dBi 2.4G + 2x 7dBi 5.8G External Fiberglass Antennas
10.Power Supply: 48V PoE
11.Power Consumption: Less than 15W
12.Dimensions: 165 x 63 x 543mm (L x W x H, including antennas)
13.Operating Temperature: -40 to +55 degree centigrade
14.Waterproof Rating: IP67
15.Coverage Range: Up to 500m
